Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 77 - Left BSI Alert Indicator Connector View (BSI)

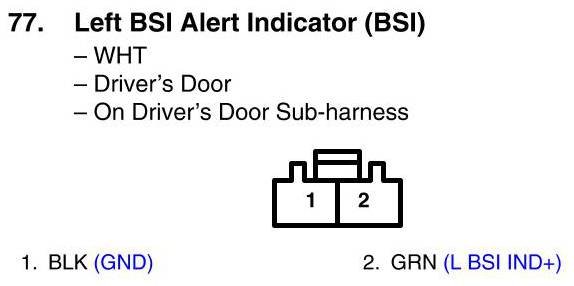

View 77 - Left BSI Alert Indicator Connector View (BSI)
