Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 456 - XM Receiver Connector View (XM Radio)

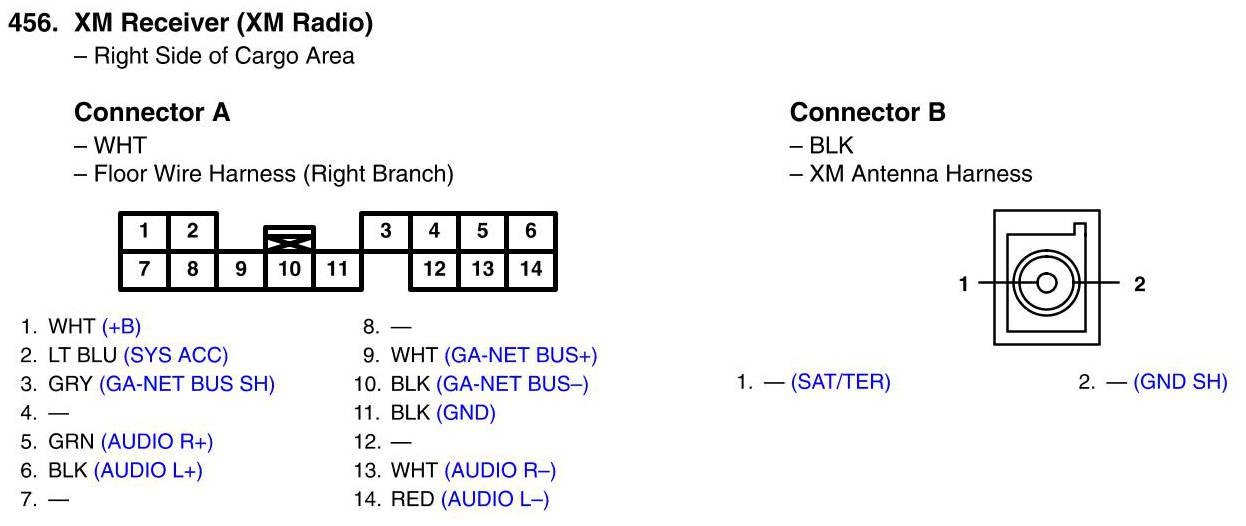

View 456 - XM Receiver Connector View (XM Radio)
