Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 454 - USB Adapter Connector Connector View

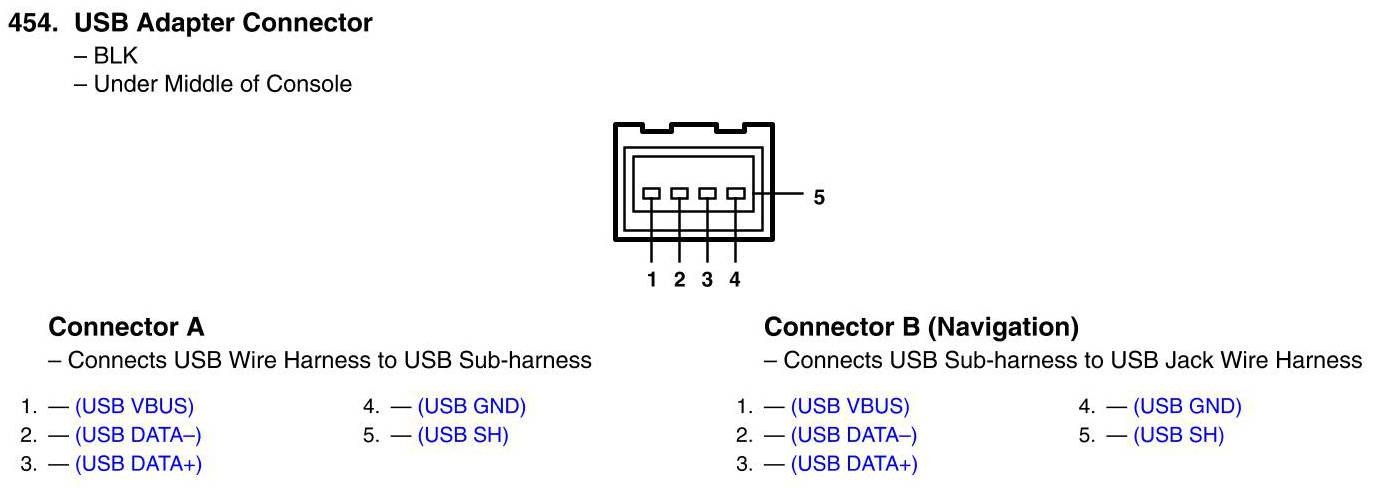

View 454 - USB Adapter Connector Connector View
