Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 420 - Ventilation Seat Control Unit Connector View (Ventilated Seats)

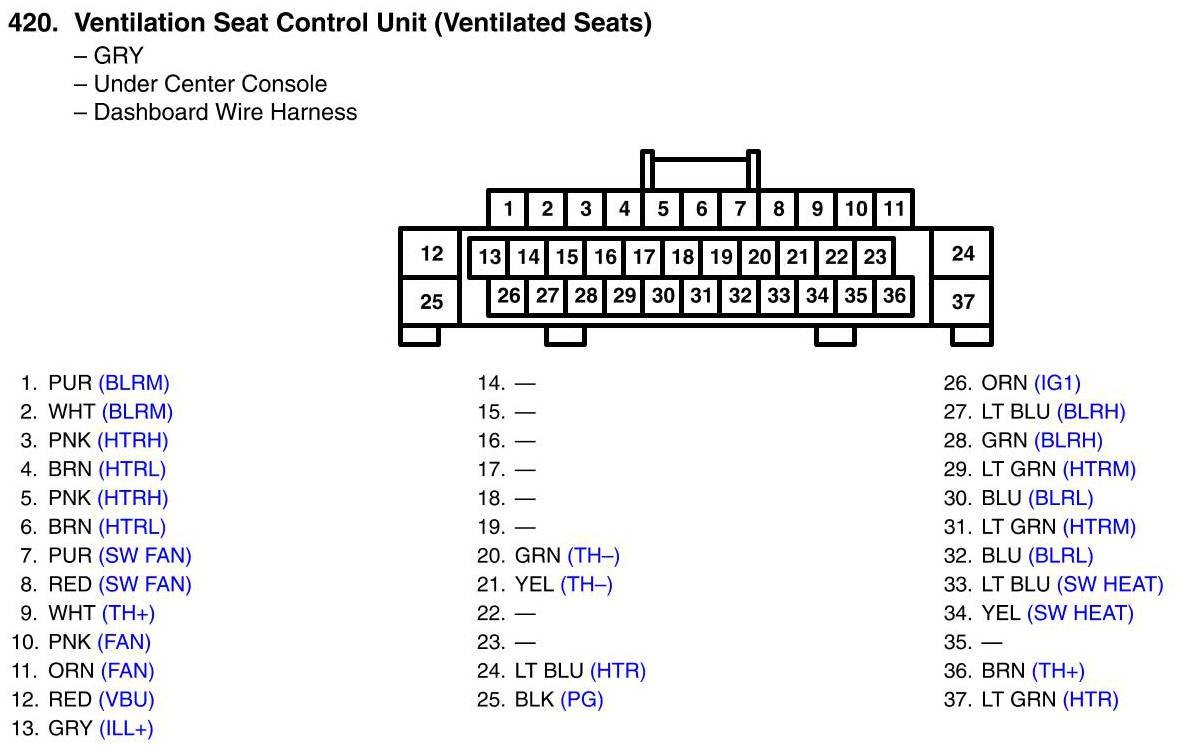

View 420 - Ventilation Seat Control Unit Connector View (Ventilated Seats)
