Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 417 - C508 Connector View (XM Radio, AcuraLink)

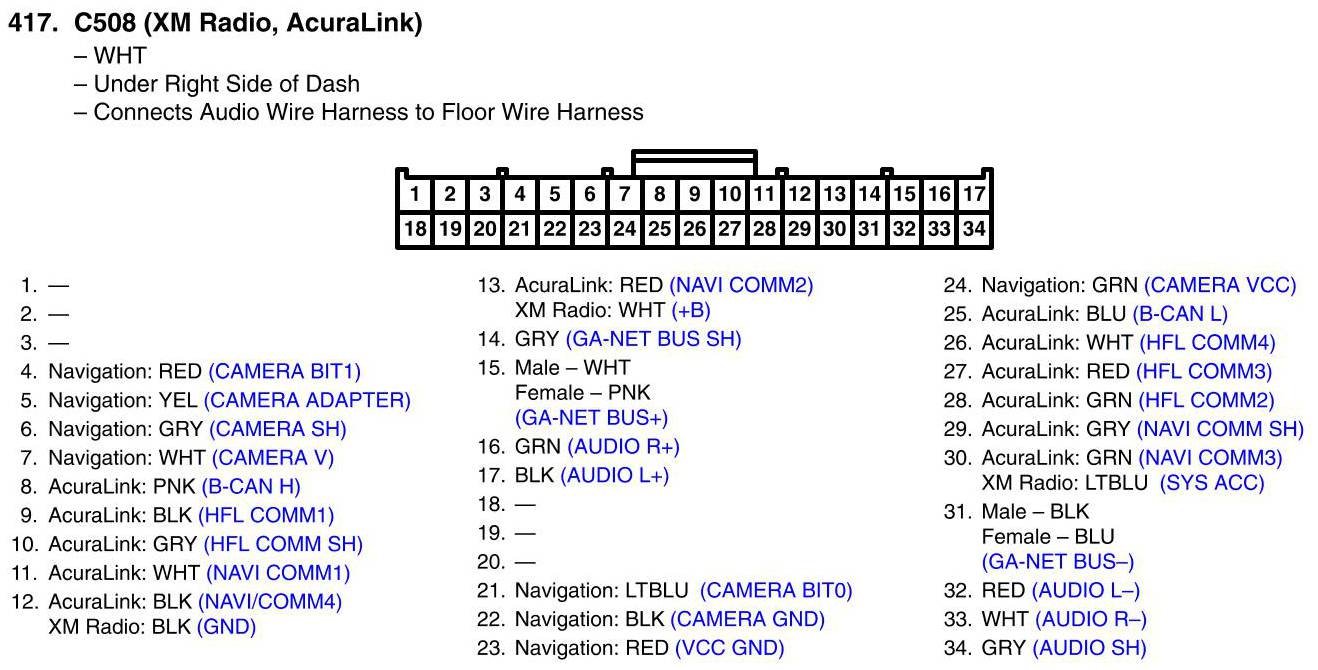

View 417 - C508 Connector View (XM Radio, AcuraLink)
