Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 394 - C423 (Junction Connector) Connector View

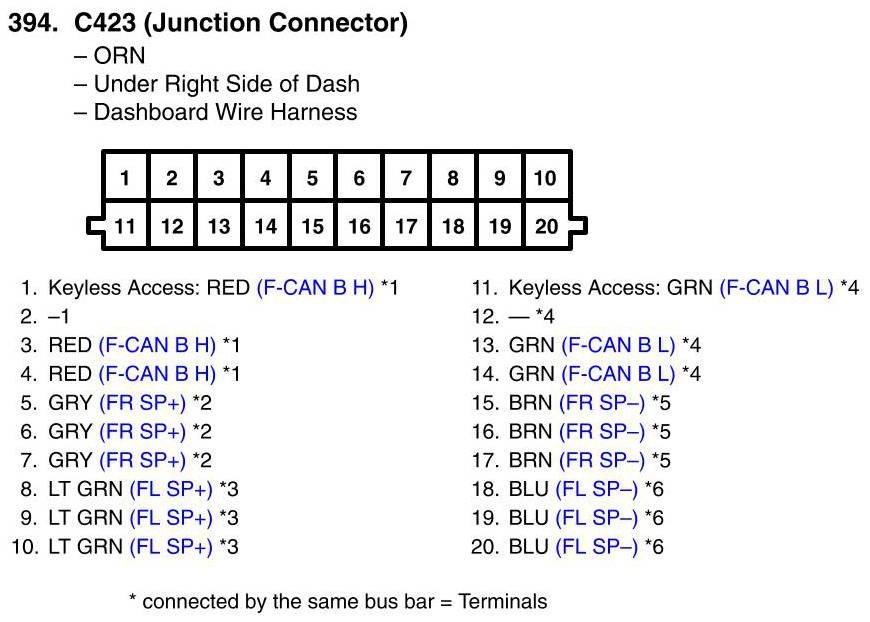

View 394 - C423 (Junction Connector) Connector View
