Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 367 - C610 (Junction Connector) Connector View (IDS)

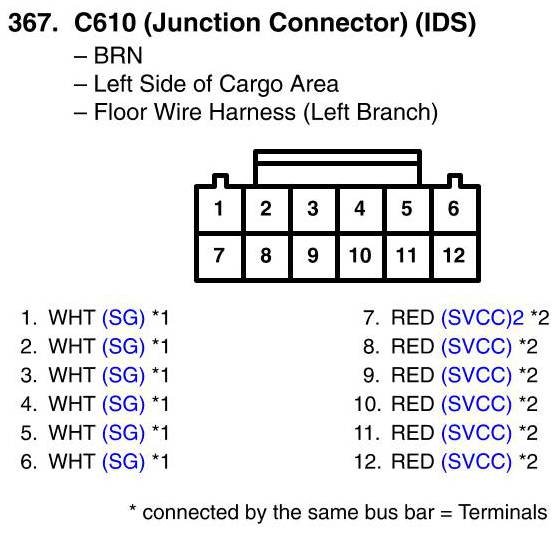

View 367 - C610 (Junction Connector) Connector View (IDS)
