Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 360 - C505 (Junction Connector) Connector View

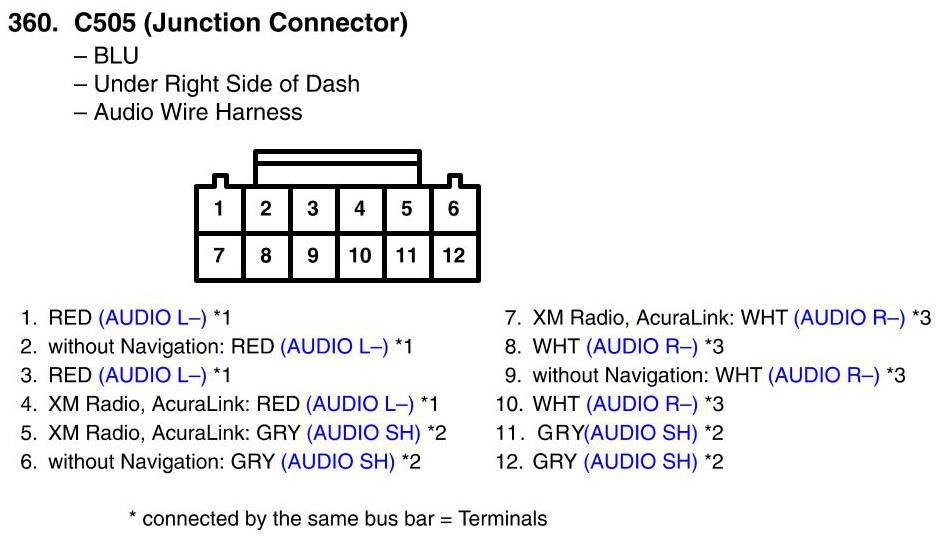

View 360 - C505 (Junction Connector) Connector View
