Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 280 - Left Rear Middle Park Assist Sensor Connector View (Park Assist)

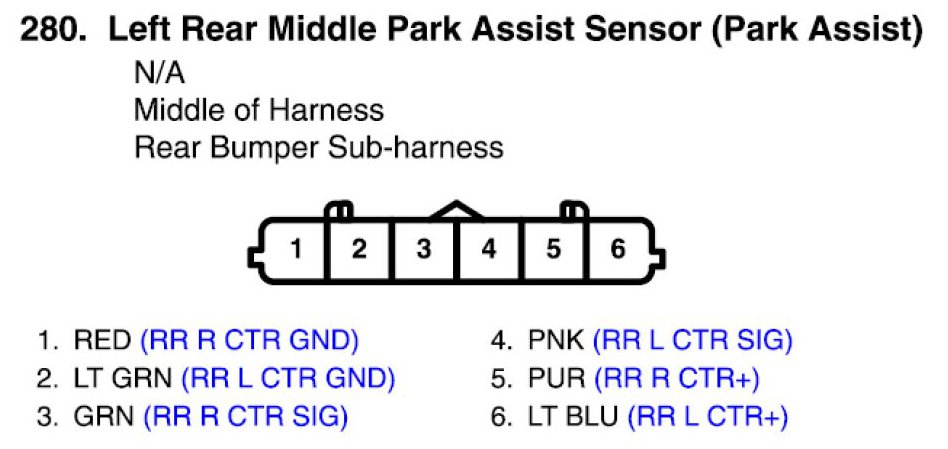

View 280 - Left Rear Middle Park Assist Sensor Connector View (Park Assist)
