Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 271 - ECPS Valve Connector View (IDS)

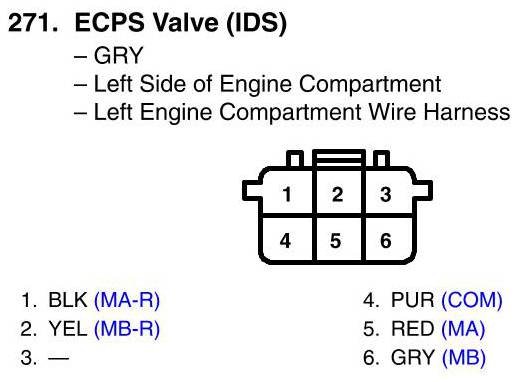

View 271 - ECPS Valve Connector View (IDS)
