Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 247 - Driver's Seat Recline Motor/Position Sensor Connector View

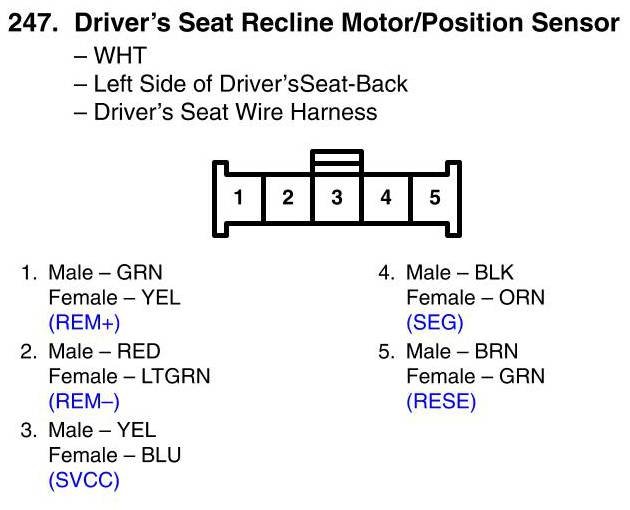

View 247 - Driver's Seat Recline Motor/Position Sensor Connector View
