Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 238 - C903 Connector View (Acura Accessory)

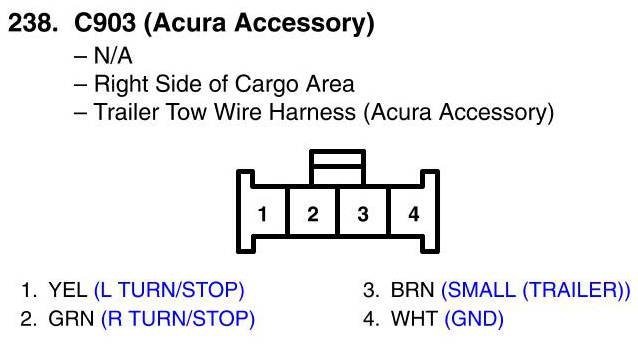

View 238 - C903 Connector View (Acura Accessory)
