Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 189 - Right Front Brake Fluid Pressure Sensor Connector View (ACC)

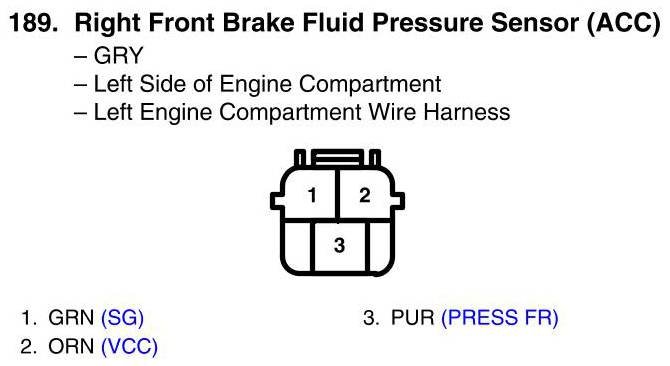

View 189 - Right Front Brake Fluid Pressure Sensor Connector View (ACC)
