Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 171 - Ignition Coil No. 3 Connector View

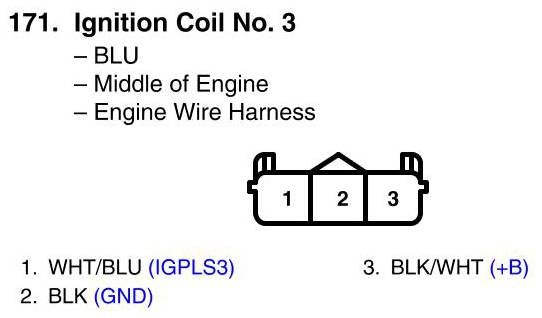

View 171 - Ignition Coil No. 3 Connector View
