Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 161 - Driver's Seat Back Blower Motor Connector View (Ventilated Seats)

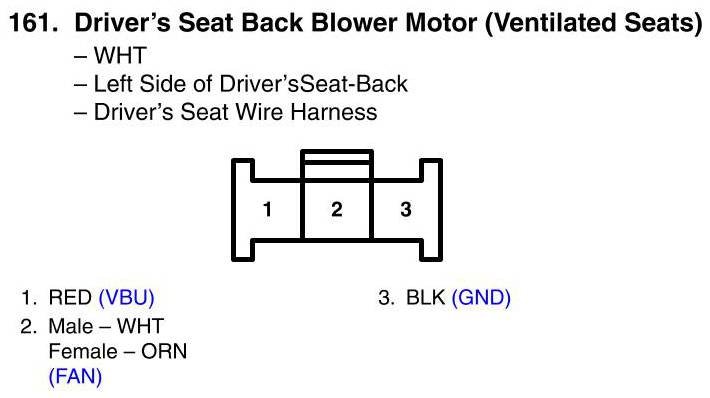

View 161 - Driver's Seat Back Blower Motor Connector View (Ventilated Seats)
