Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 154 - C404 Connector View (Without Navigation)

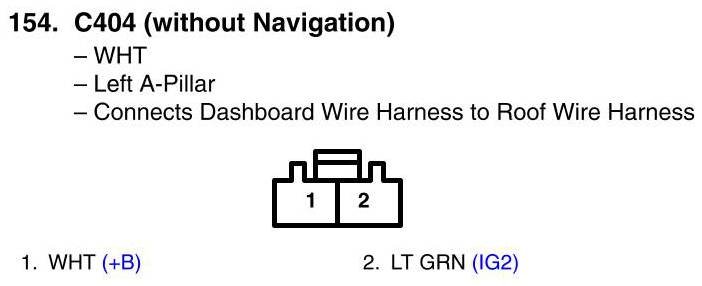

View 154 - C404 Connector View (Without Navigation)
