Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance and Parking Assist Systems >> Parking Assist Control Module >> Park Assist Unit Connector View (Park Assist)

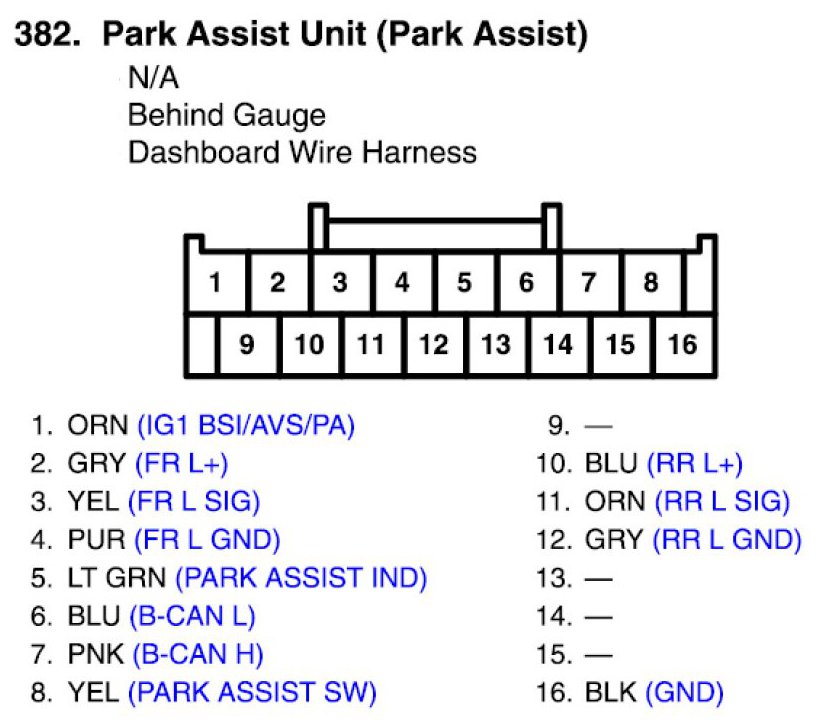

Park Assist Unit Connector View (Park Assist)
