Air Dam: Service and Repair

Front Air Guide Plate Replacement

NOTE: Take care not to scratch the body.

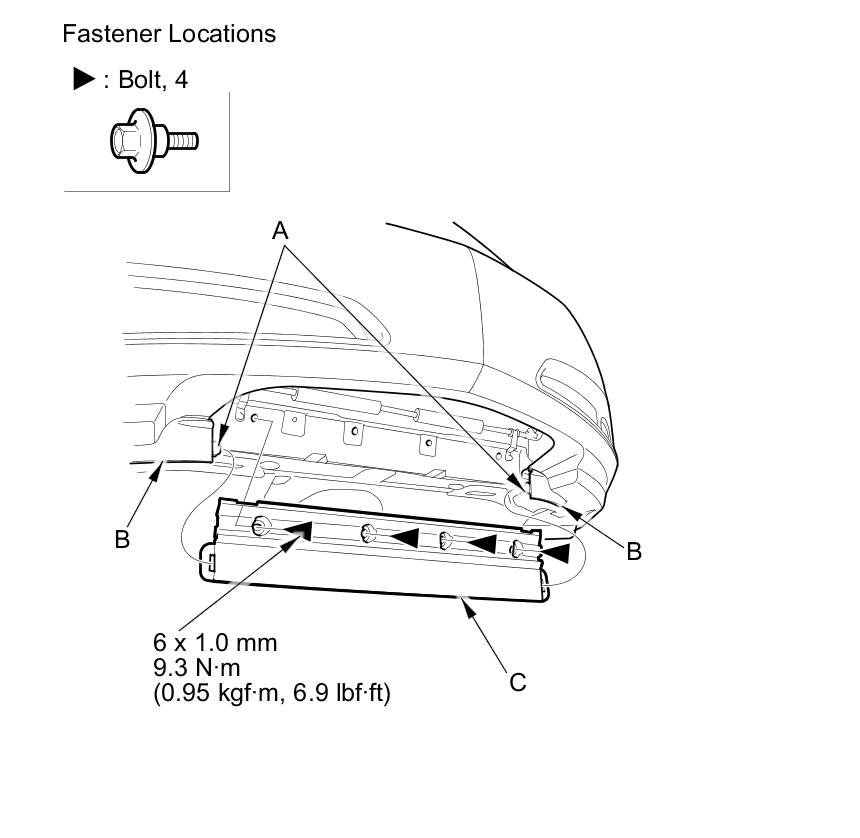

1. Remove the bolts, and release the tabs (A) of the front bumper strakes (B), then remove the front air guide plate (C).





2. Install the plate in the reverse order of removal.
