Panoramic Glass Roof Motor Replacement

Panoramic Glass Roof Motor Replacement

Power Glass Roof Control Unit/Motor

NOTE: Put on gloves to protect your hands.

1. Remove the headliner Service and Repair.

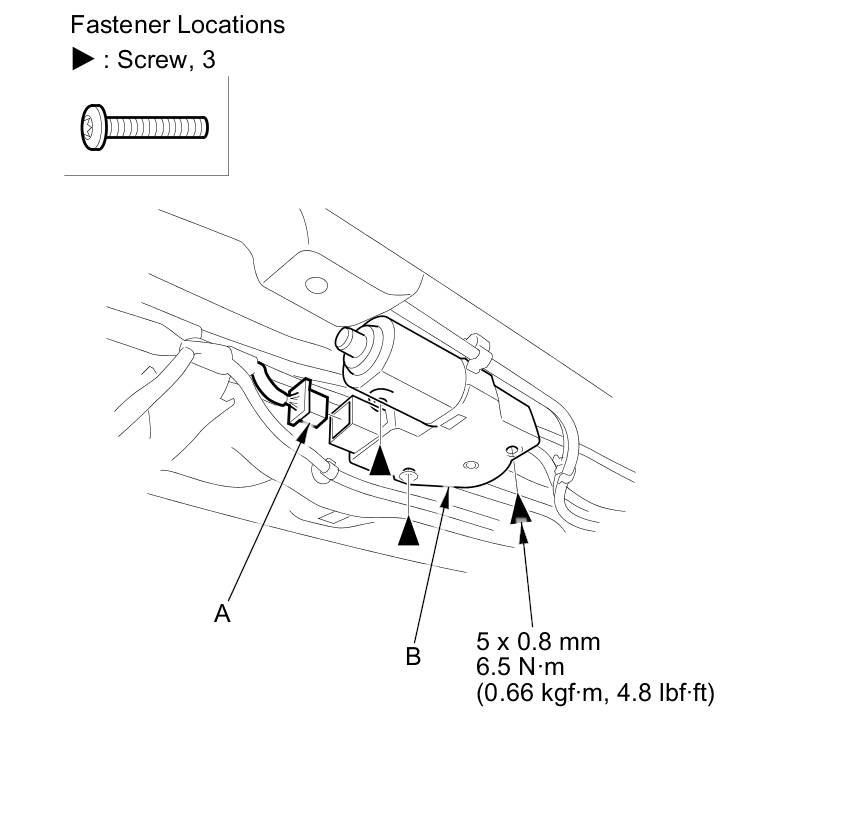

2. Disconnect the panoramic glass roof control unit/motor connector (A), and remove the screws with a T25 TORX bit, then remove the panoramic glass roof control unit/motor (B).





3. Install the motor in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- Reset the panoramic glass roof control unit Testing and Inspection.
- Check the motor operation.

Power Sunshade Control Unit/Motor

NOTE: Put on gloves to protect your hands.

1. Remove the headliner Service and Repair.

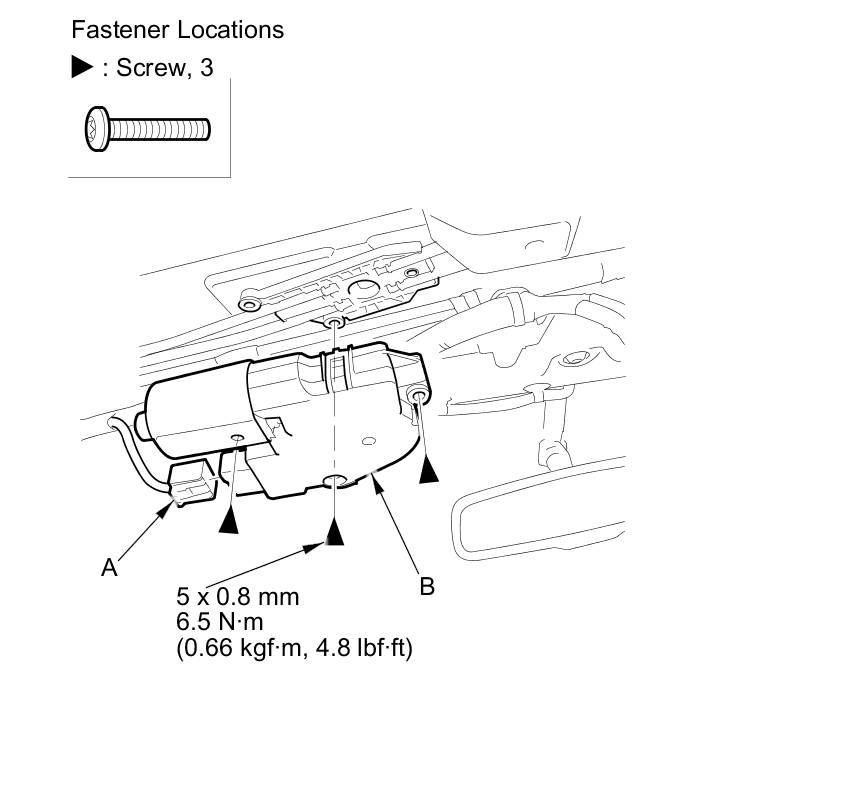

2. Disconnect the power sunshade control unit/motor connector (A), and remove the screws with a T25 TORX bit, then remove the power sunshade control unit/motor (B).





3. Install the motor in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- Reset the panoramic glass roof control unit Testing and Inspection.
- Check the motor operation.
