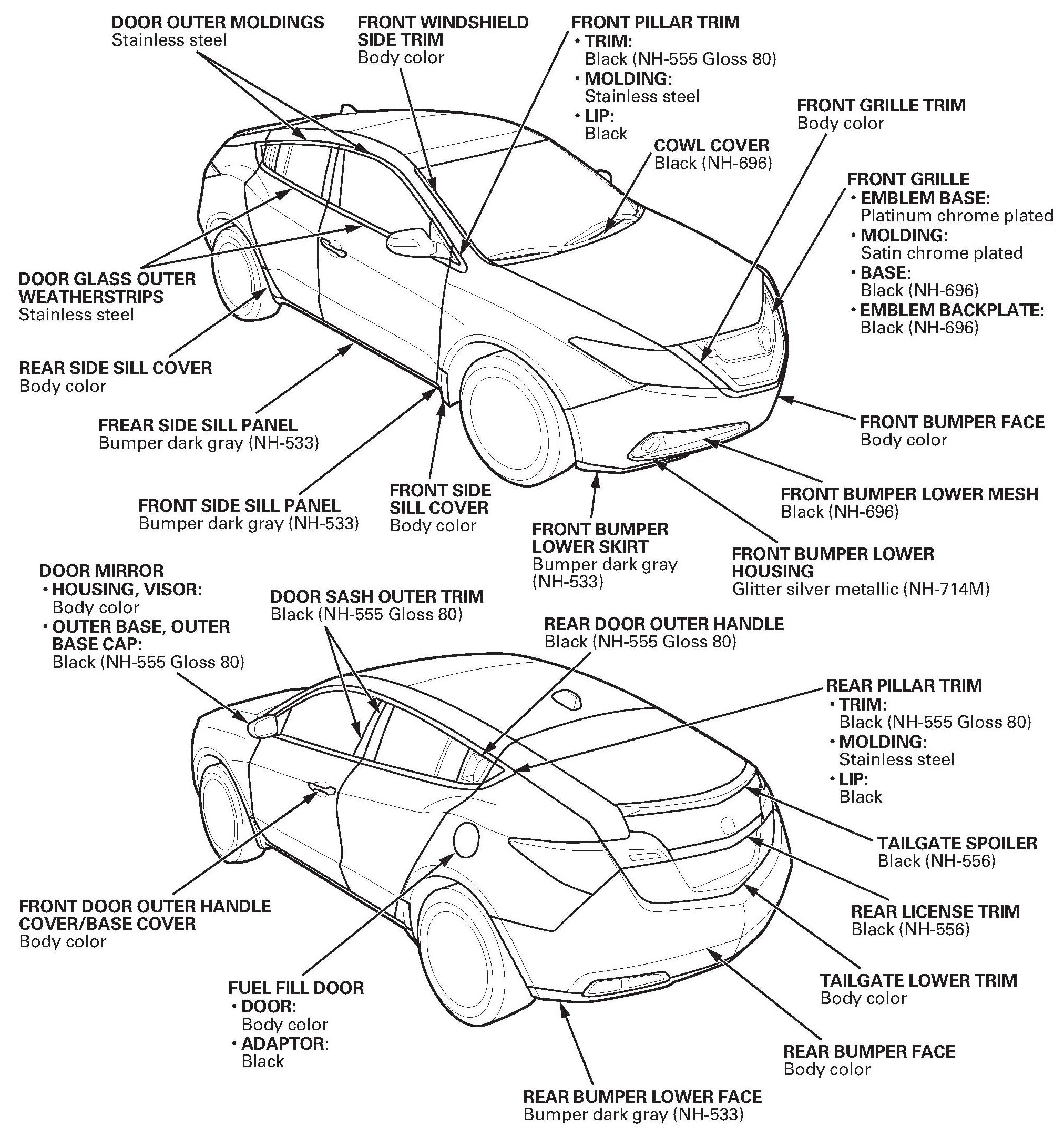

Color Chart Paint Specifications

Color Chart Paint Specifications

NOTE:
- For model year paint code information.
- Apply black paint to the visible surface of the front bulkhead upper frame, the bulkhead side braces, the jack-up base, the front wheelhouse, and the rear wheelhouse after repairing and painting (except vehicles painted with black color).
