Passenger's Dashboard Trim Removal / Installation

Passenger's Dashboard Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program; call 888-424-6857

'10-11 Models

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

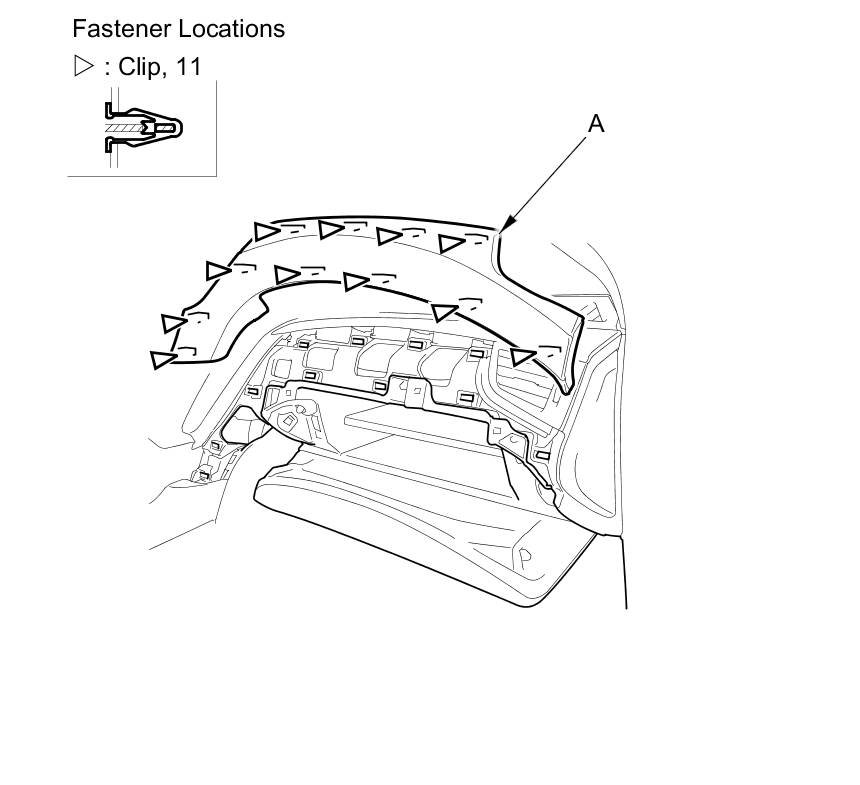

1. Pry up the edge of the passenger's dashboard trim (A) to detach the clips, and remove the trim.





2. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.

'12 Model

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

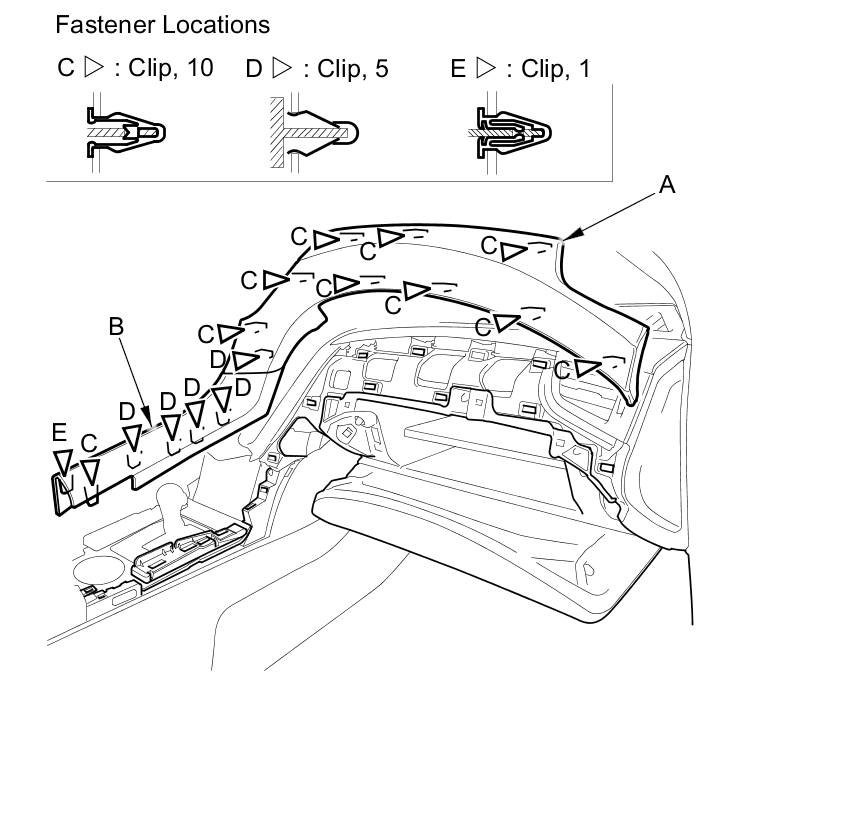

1. Pry up the edge of the passenger's dashboard trim (A) and the passenger's leather trim (B) to detach the clips (C, D, E), and remove them as an assembly.

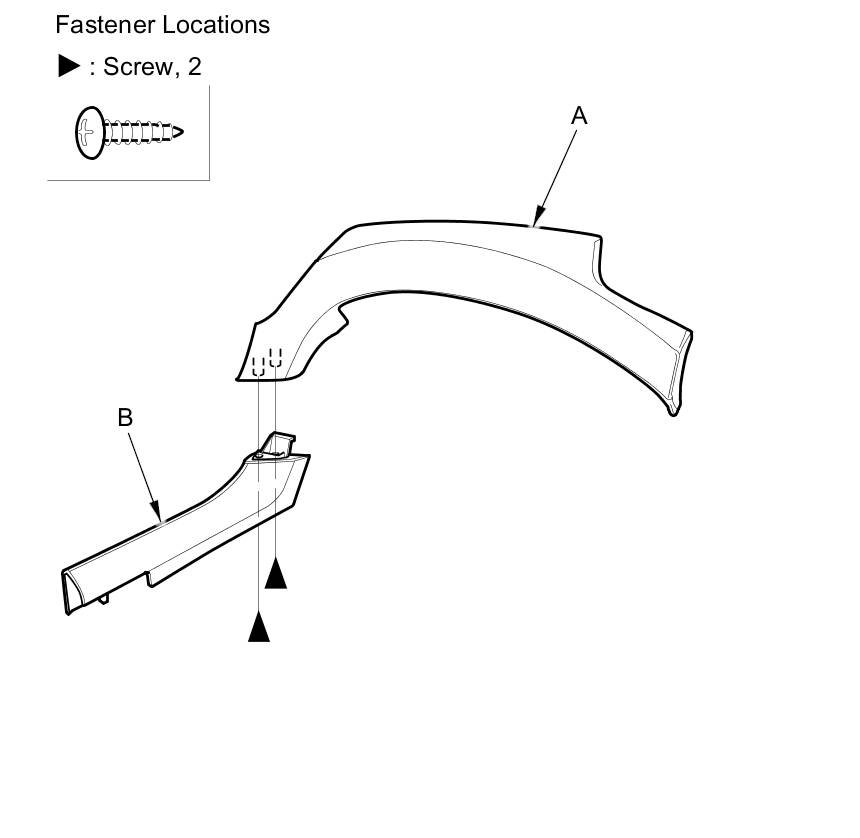

2. Remove the screws, then remove the passenger's dashboard trim (A) from the passenger's leather trim (B).






3. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
