Volume Does Not Increase With Speed (With Navigation)

Audio System Symptom Troubleshooting - Volume does not increase with speed

Volume does not increase with speed (with navigation)

NOTE:

- Check the vehicle battery condition first Battery Test.
- Check the connectors for poor connections or loose terminals.

1. Test-drive the vehicle at highway speeds, and monitor if the volume increases.

Does the volume increase?

YES -

Intermittent failure, the system is OK at this time.

NO -

Go to step 2.

2. Verify SVC mode setting in audio-navigation unit sound adjustment set-up.

Is the SVC set to off?

YES -

Change setting to SVC MID, and recheck.

NO -

Go to step 3.

3. Do the Self-Diagnostic Function for the vehicle speed pulse indication.

Does self-diagnostic function indicate a VSP signal?

YES -

Substitute a known-good audio-navigation unit (including the HDD) Audio-Navigation Unit Removal/Installation, and recheck. If the symptom/indication goes away, replace the original audio-navigation unit Audio-Navigation Unit Removal/Installation.

NO -

Go to step 4.

4. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

5. Jump the SCS line with the HDS.

6. Disconnect PCM connector A (49P).

7. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

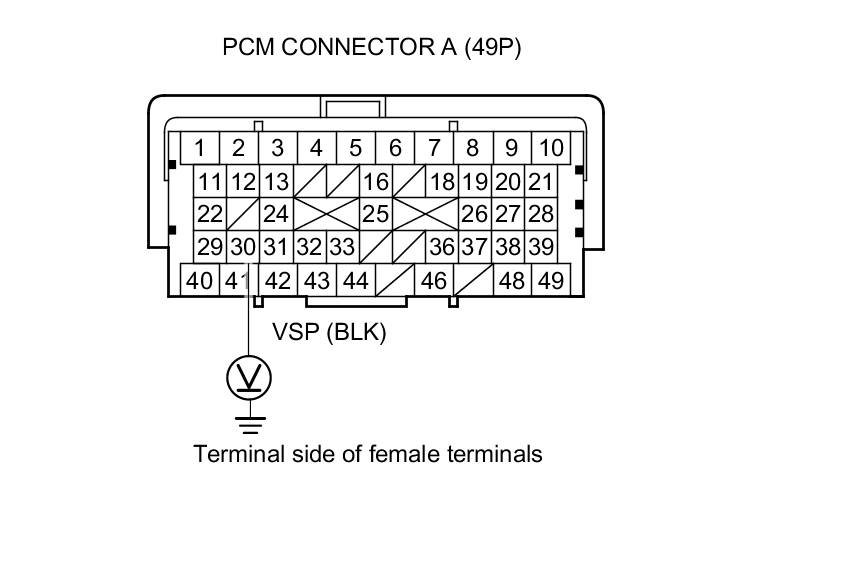

8. Measure the voltage between PCM connector A (49P) terminal No. 30 and body ground.





Is there about 5 V?

YES -

Go to step 10.

NO -

Go to step 9.

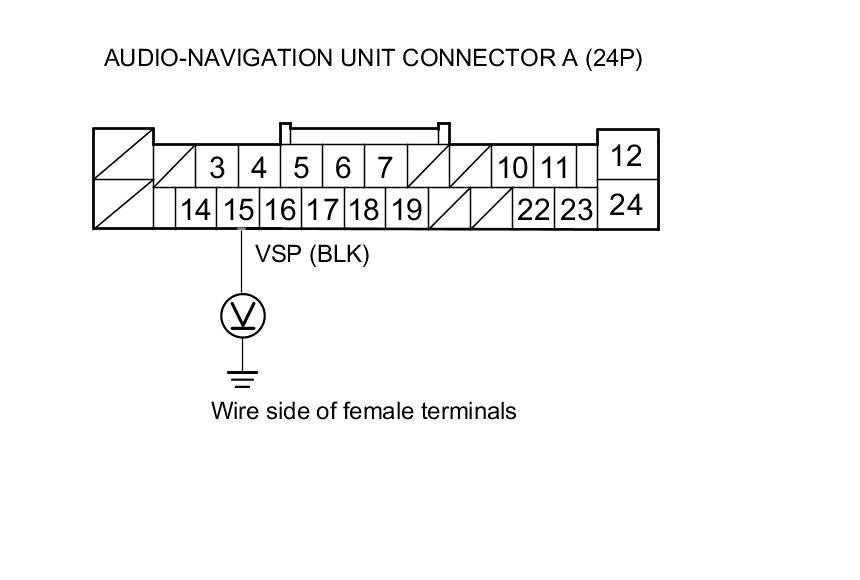

9. Measure the voltage between audio-navigation unit connector A (24P) terminal No. 15 and body ground.





Is there about 5 V?

YES -

Repair an open or a short in the wire between the audio-navigation unit and the PCM.

NO -

Replace the audio-navigation unit Audio-Navigation Unit Removal/Installation.

10. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

11. Reconnect PCM connector A (49P).

12. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

13. Raise the vehicle on a lift, and rotate the wheels while measuring the voltage between audio-navigation unit connector A (24P) terminal No. 15 and body ground.





Does the voltage pulse between 0 V and 5 V as you rotate the wheels?

YES -

Substitute a known-good audio-navigation unit (including the HDD) Audio-Navigation Unit Removal/Installation, and recheck. If the symptom/indication goes away, replace the original audio-navigation unit Audio-Navigation Unit Removal/Installation.

NO -

Update the PCM PCM Update if it does not have the latest software or substitute a known-good PCM.
