Part 3

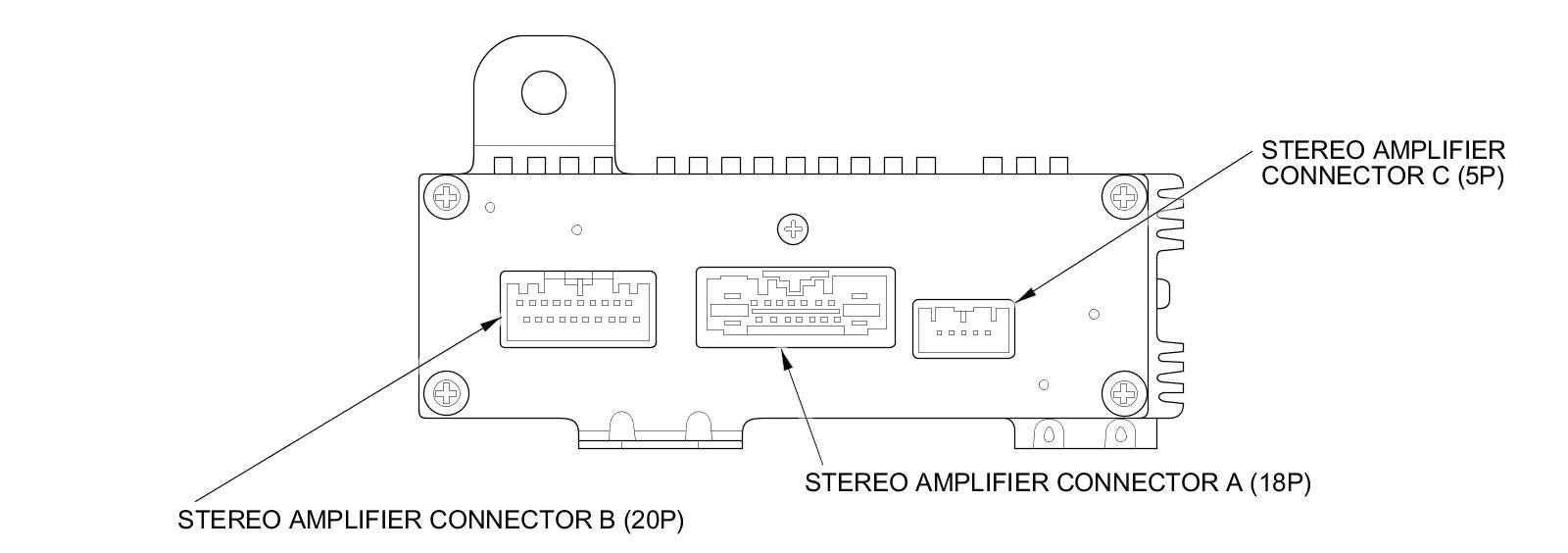

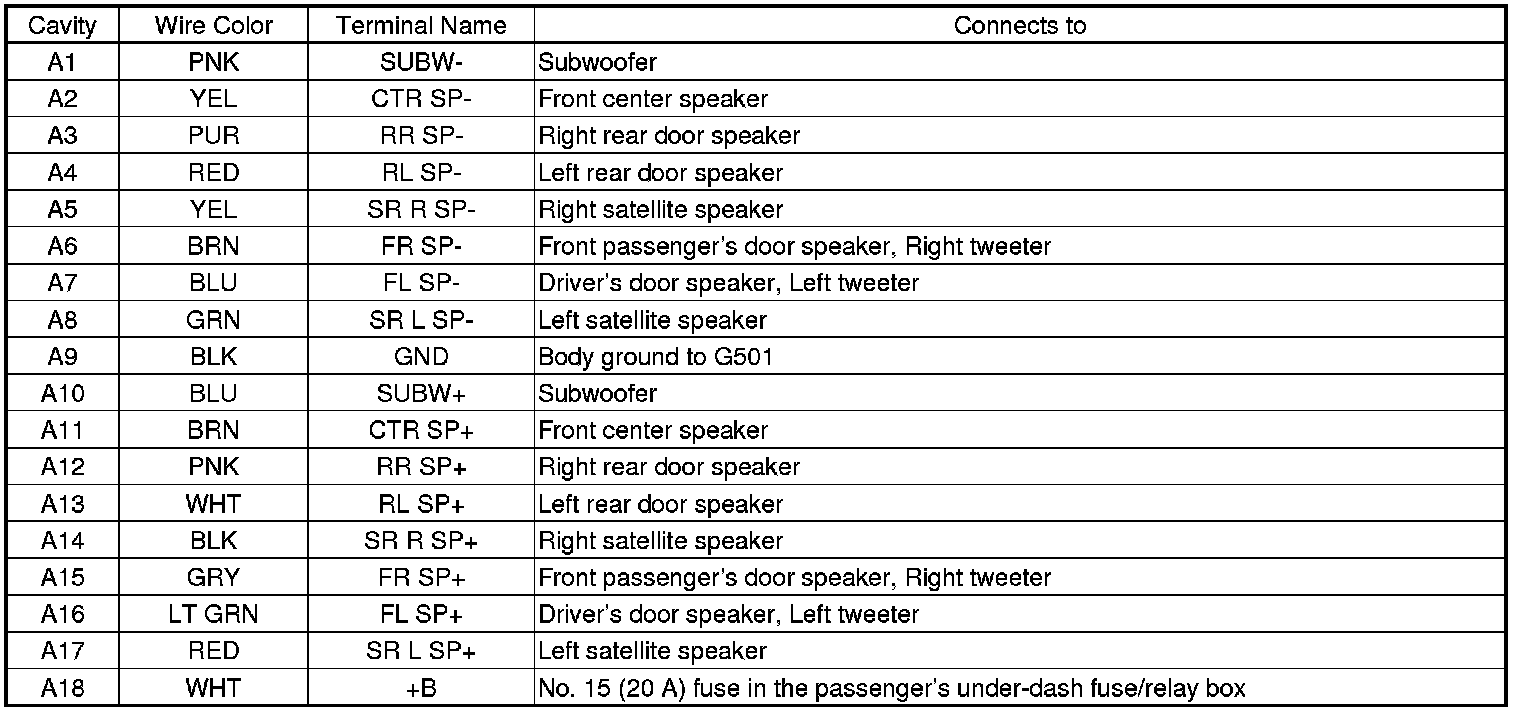

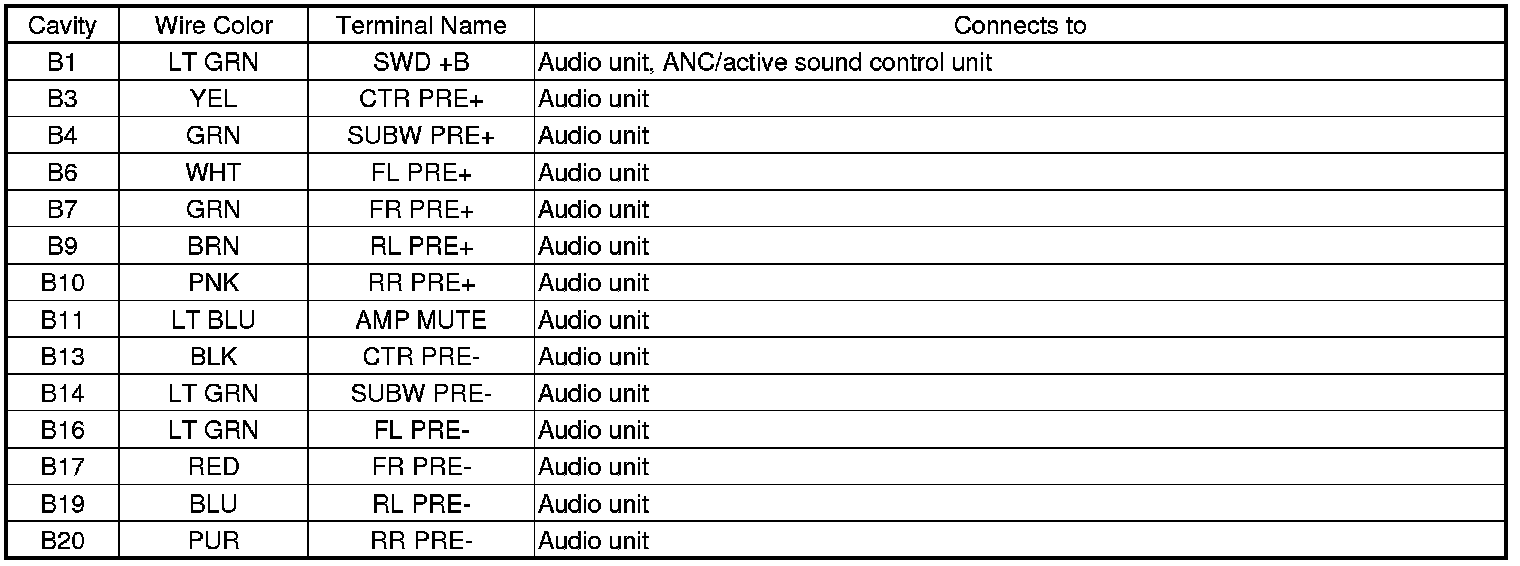

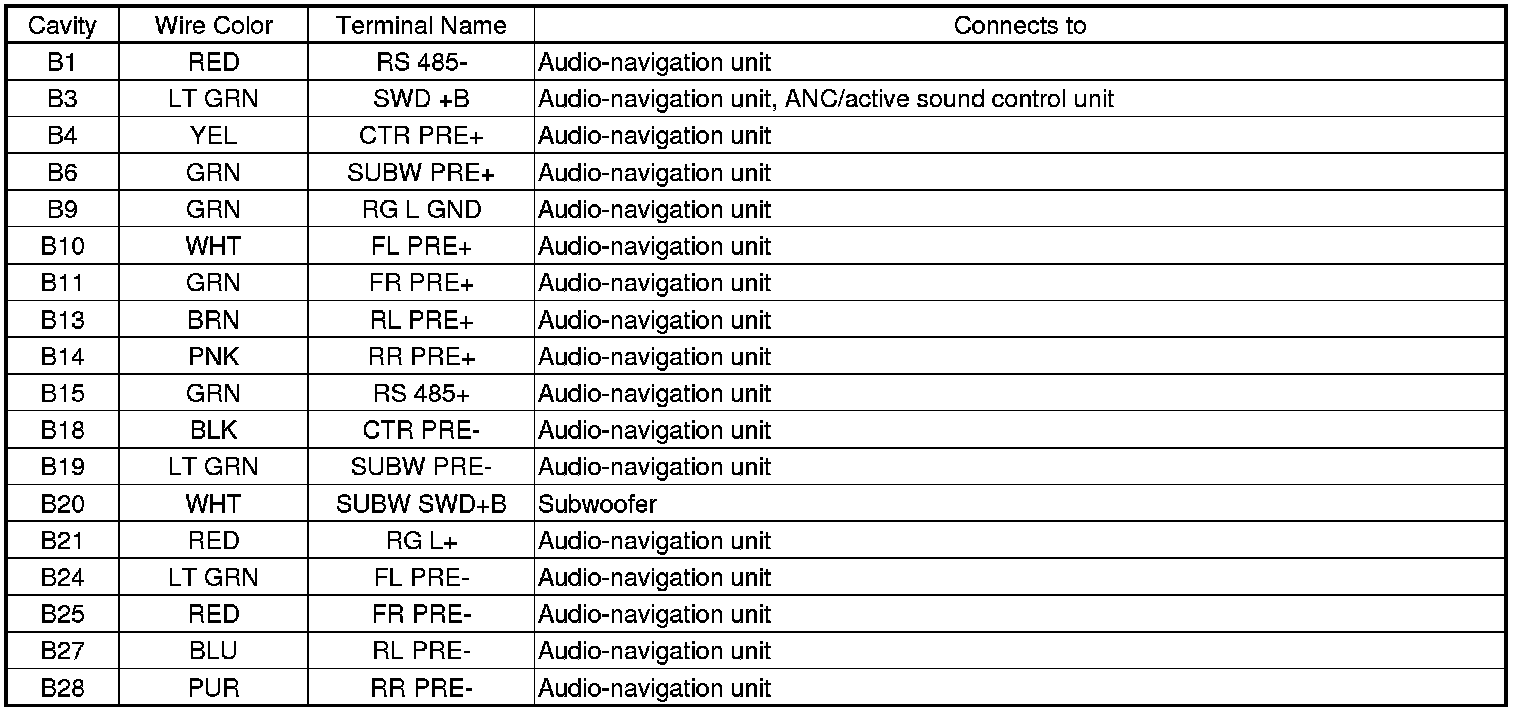

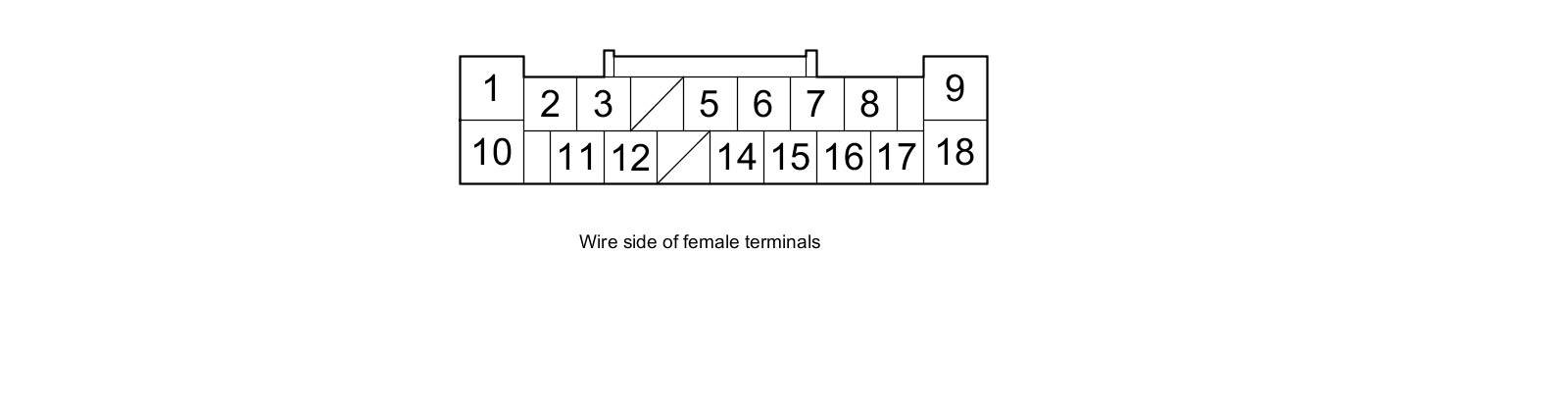

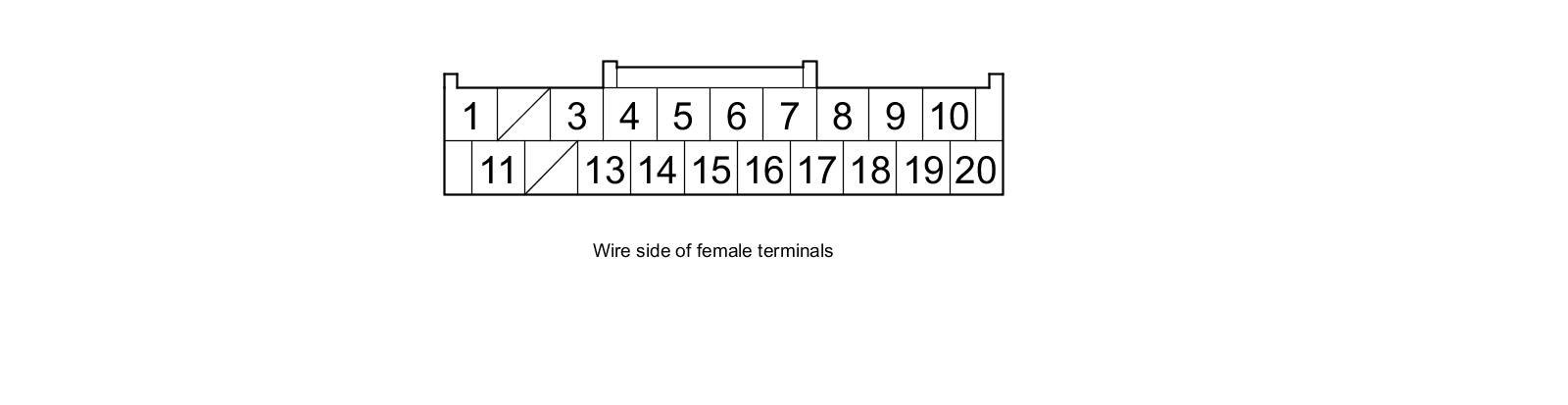

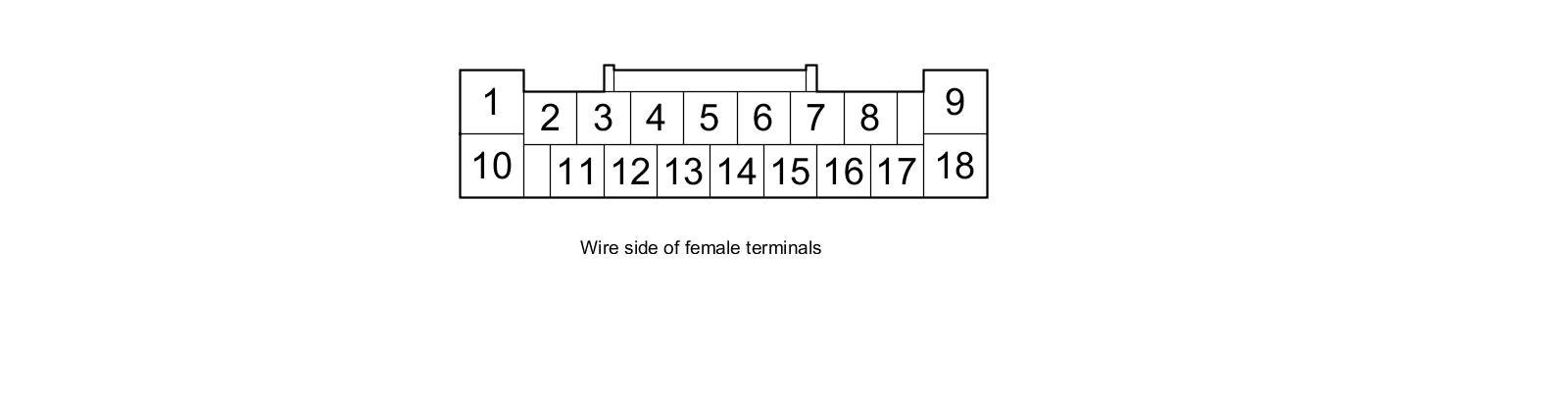

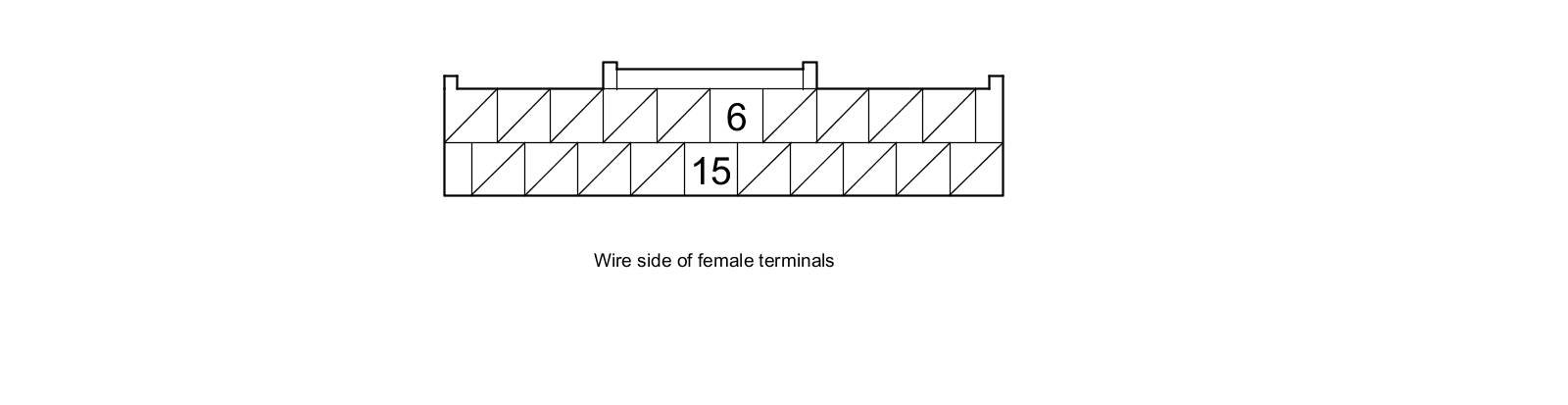

Audio System Description

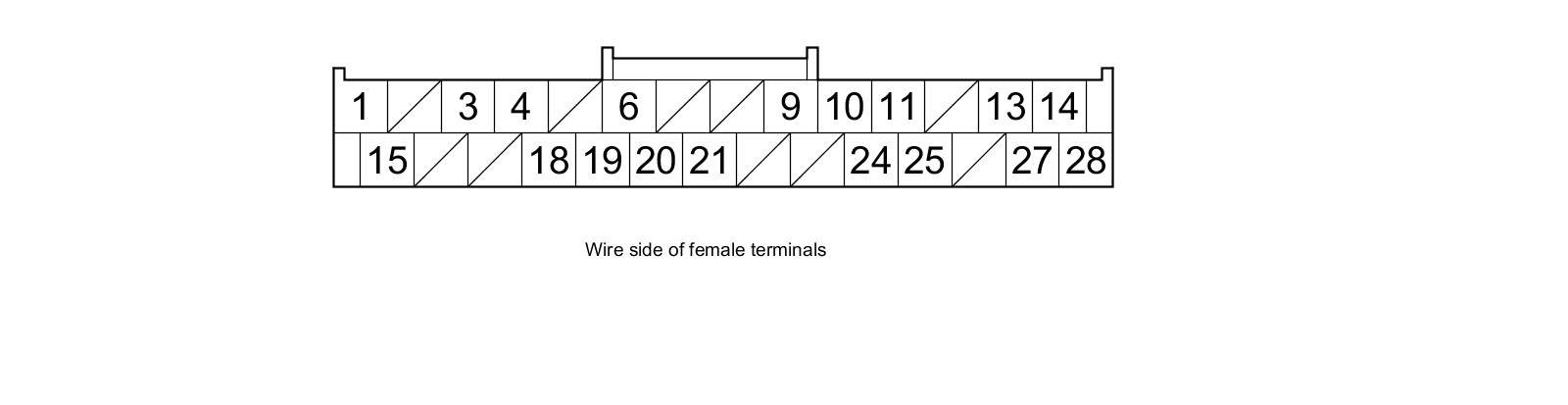

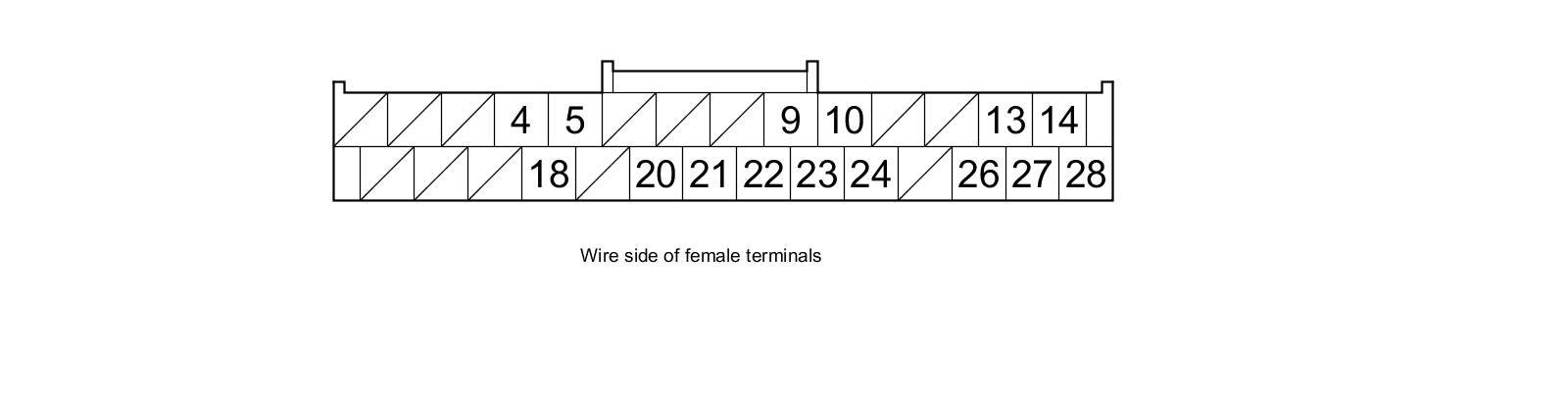

AUDIO-NAVIGATION UNIT CONNECTOR H (28P)

NOTE: Refer to the navigation system section for the terminals inputs and outputs not shown.

Audio-Navigation Unit Connector H (28P)

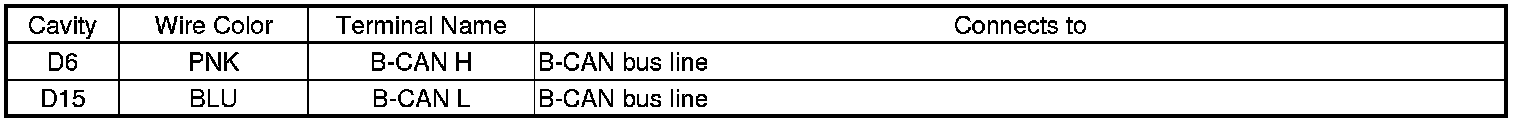

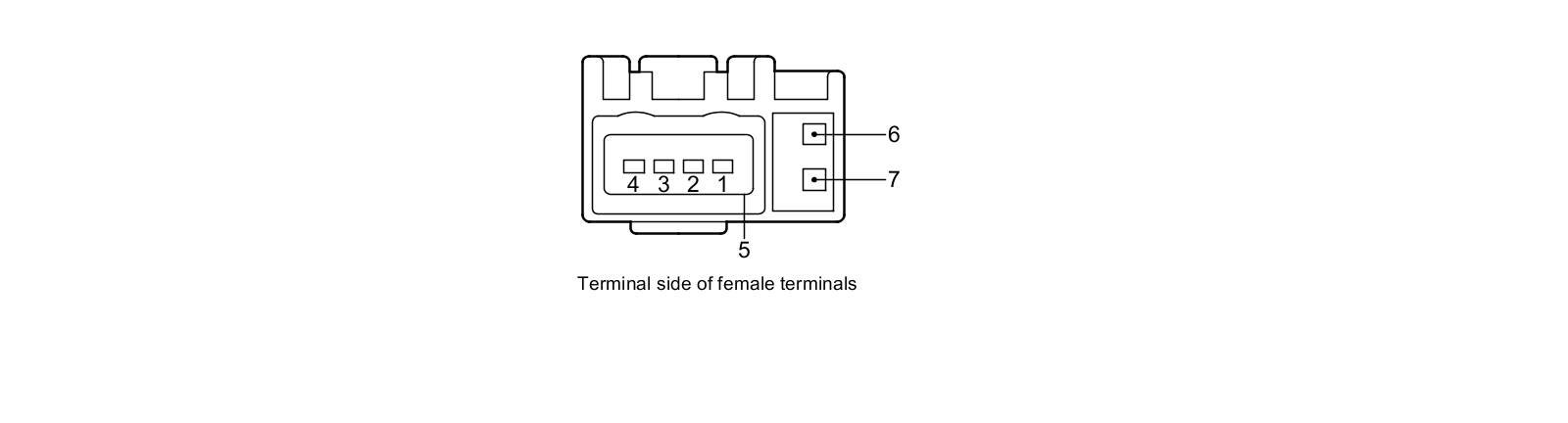

AUDIO-NAVIGATION UNIT CONNECTOR K (7P)

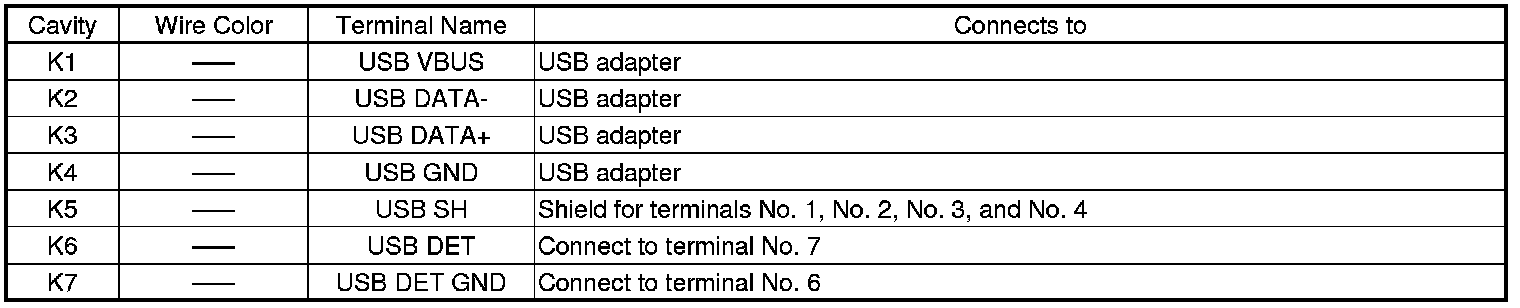

Audio-Navigation Unit Connector K (7P)

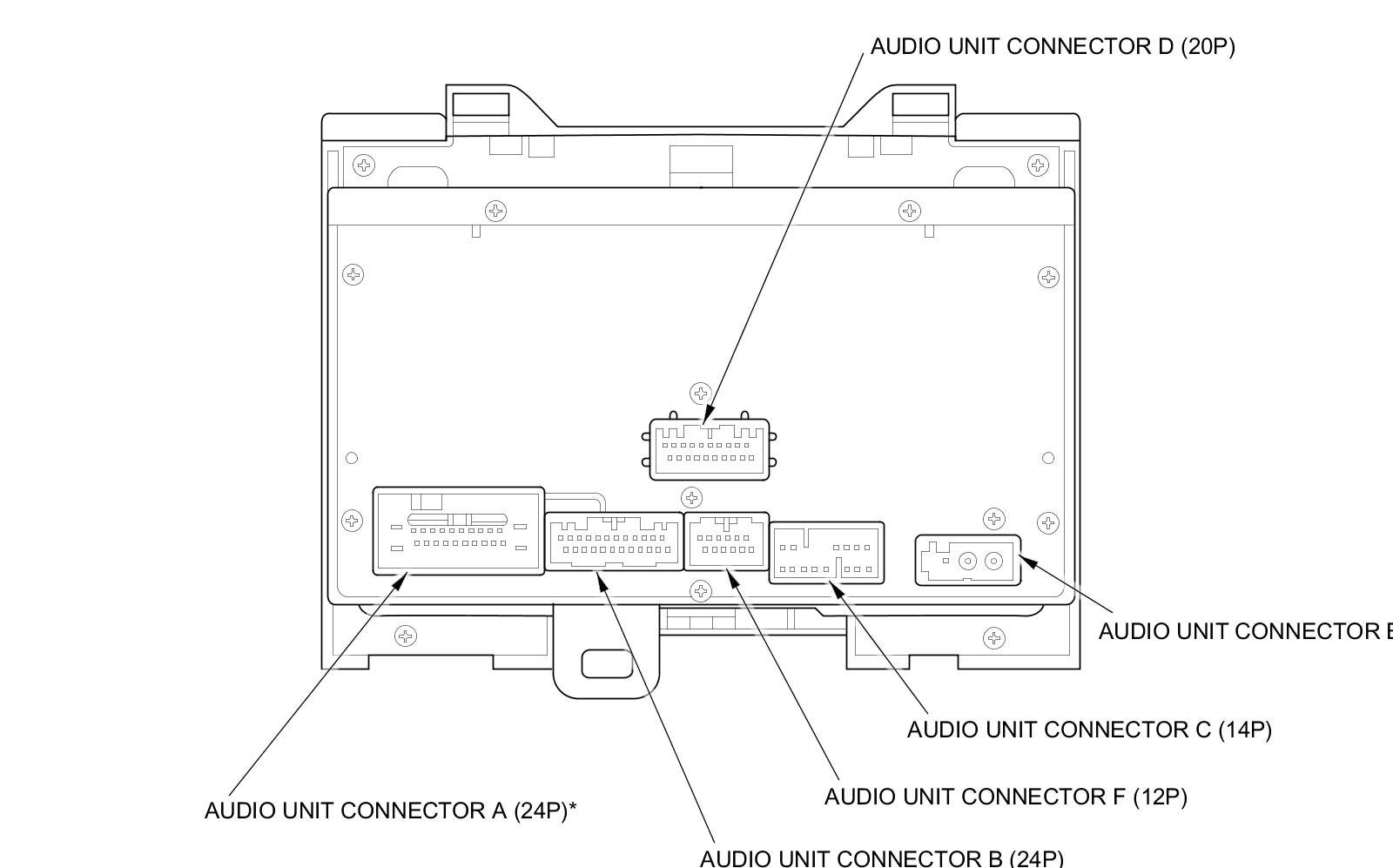

Audio Unit Connector for Inputs and Outputs (without navigation)

NOTE: The connector with the asterisk (*) mark is a lever-lock type How to Troubleshoot the Audio System.

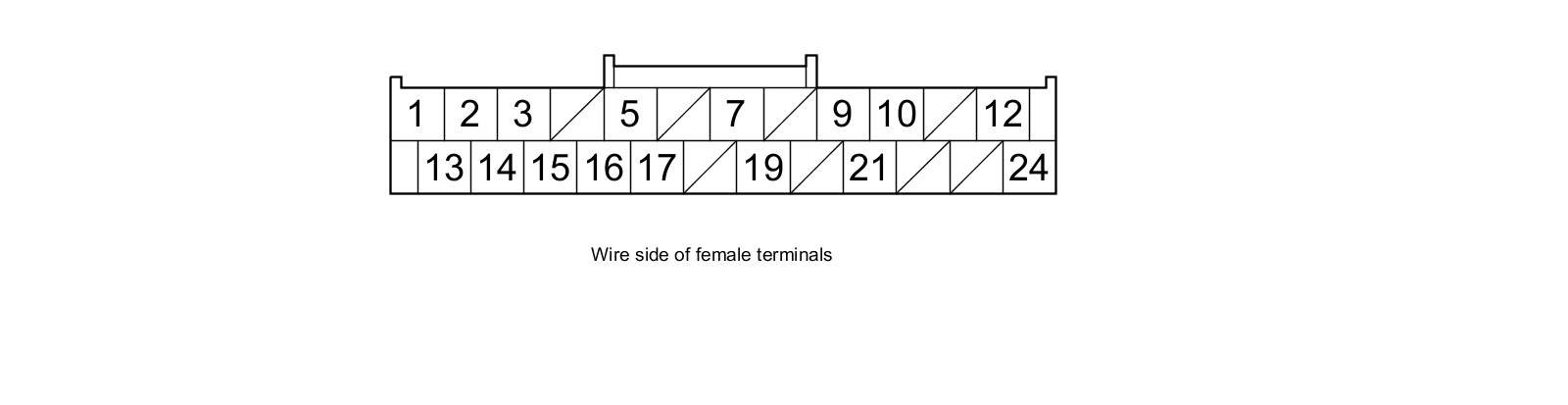

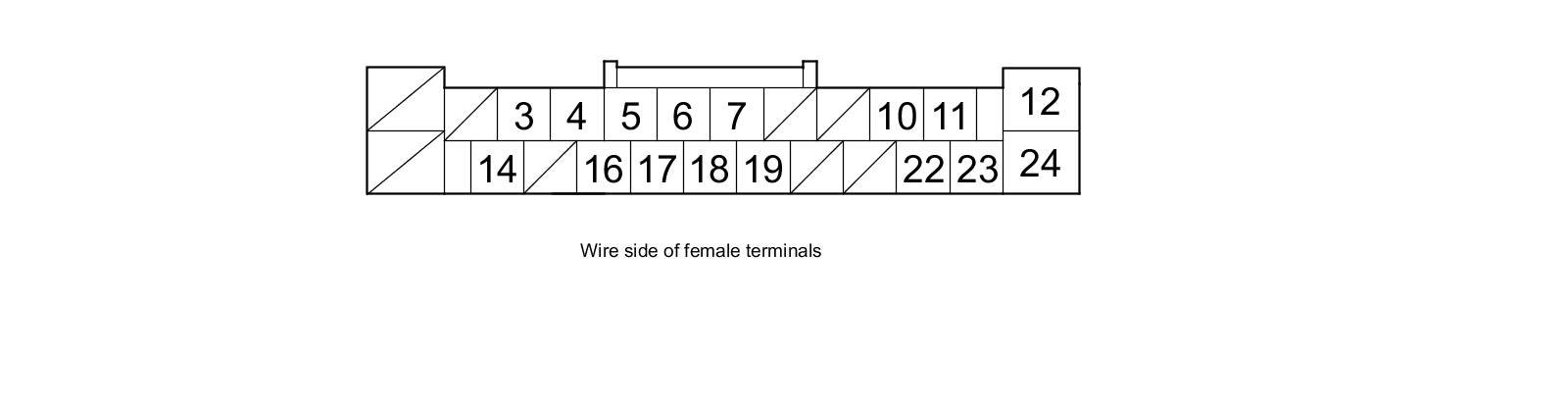

AUDIO UNIT CONNECTOR A (24P)

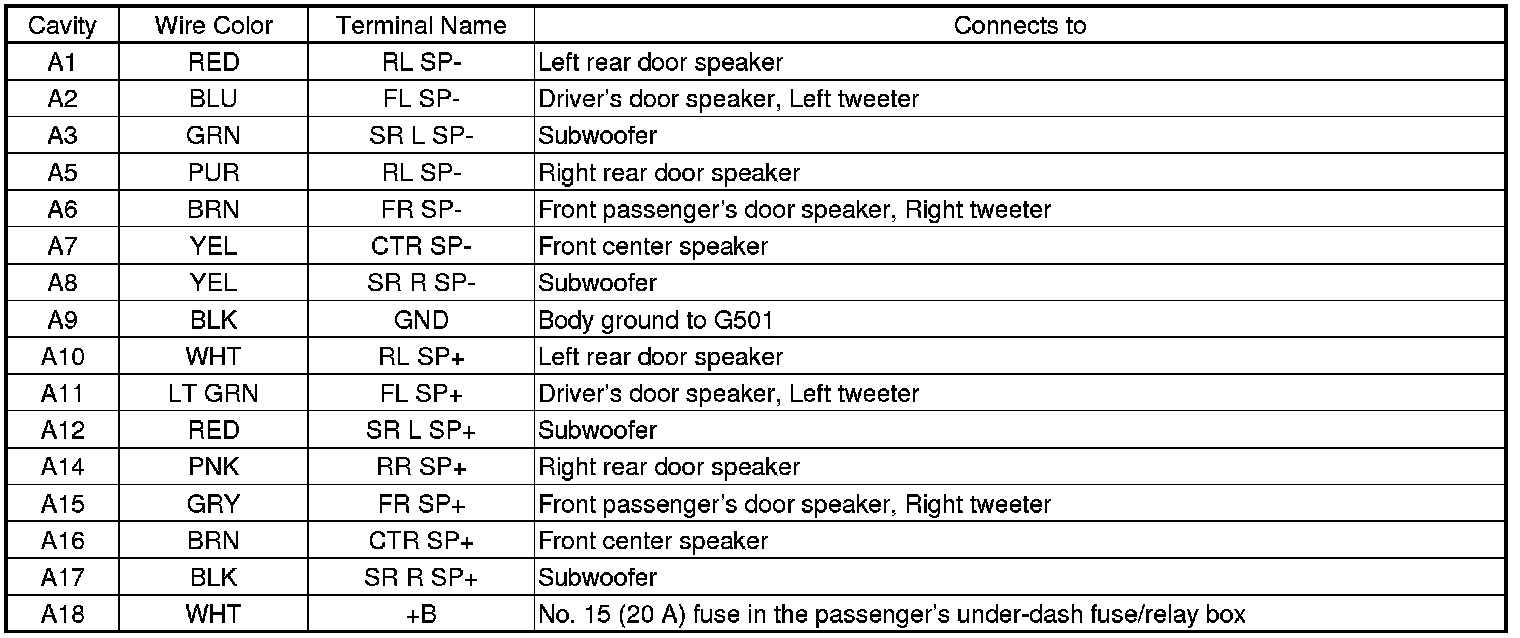

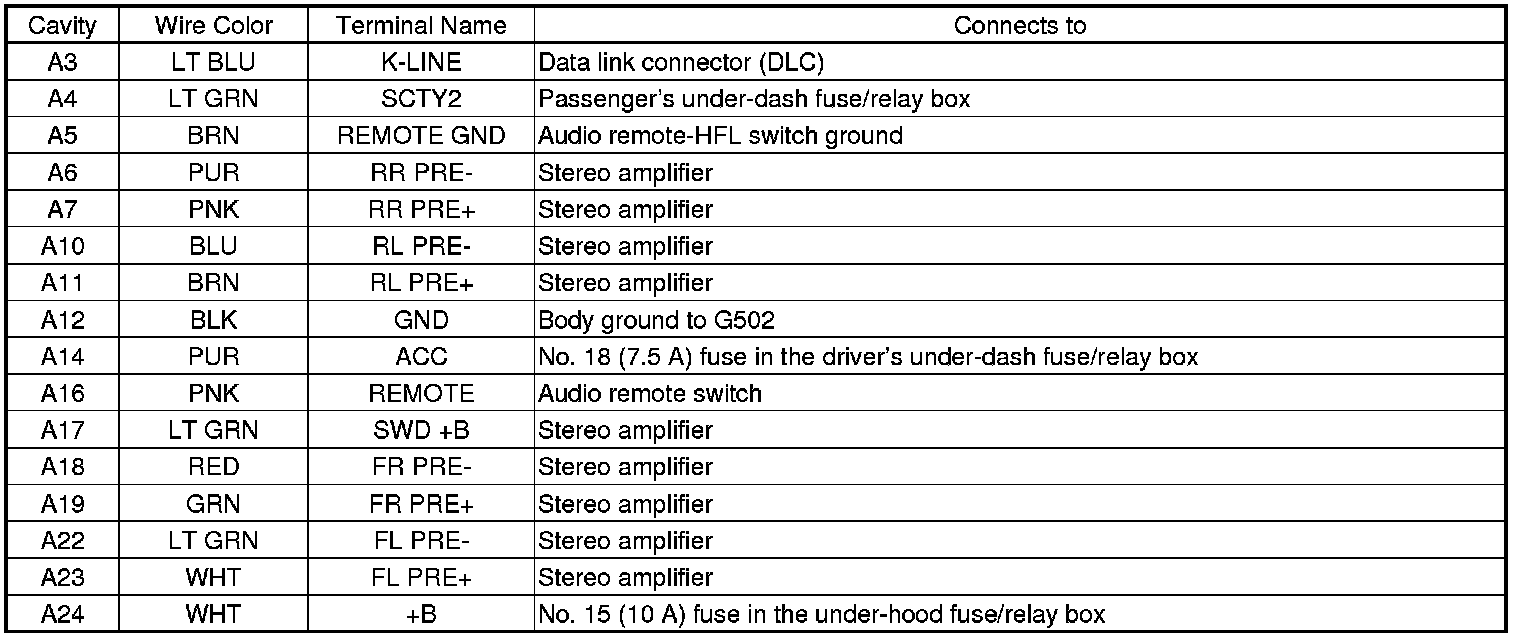

Audio Unit Connector A (24P)

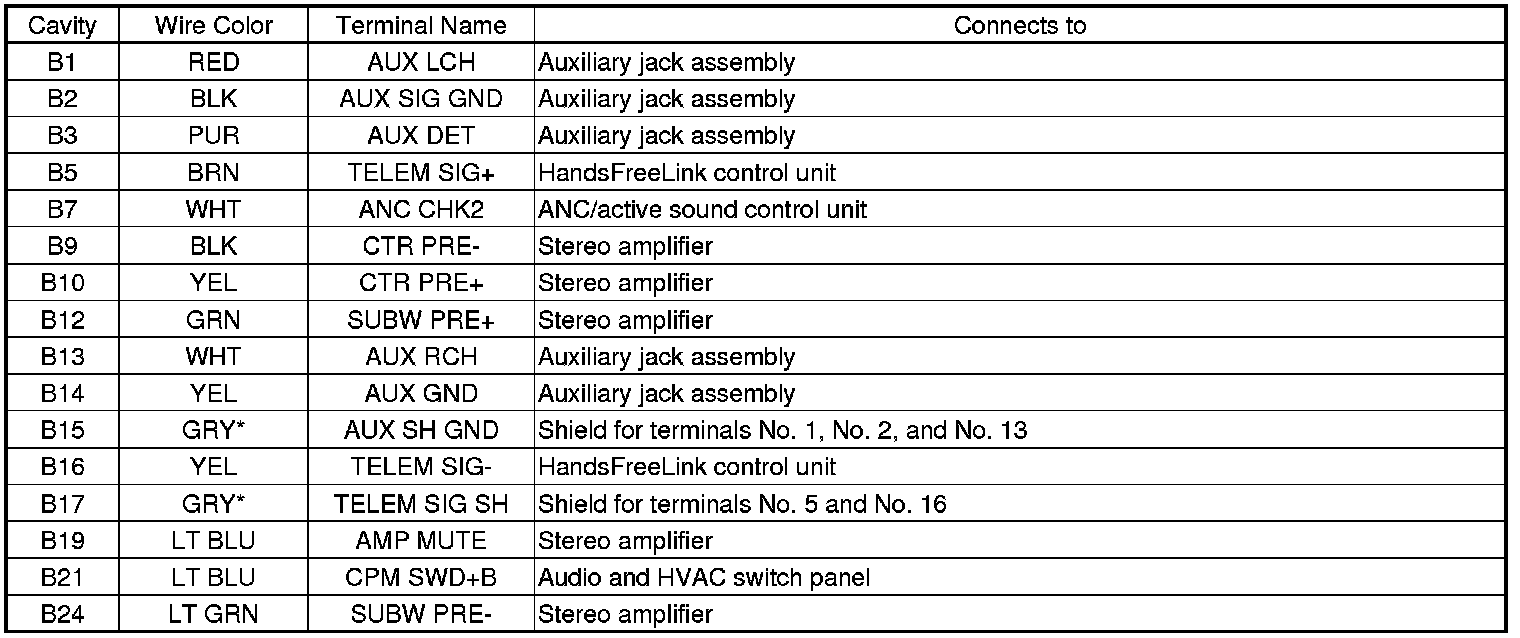

AUDIO UNIT CONNECTOR B (24P)

Audio Unit Connector B (24P)

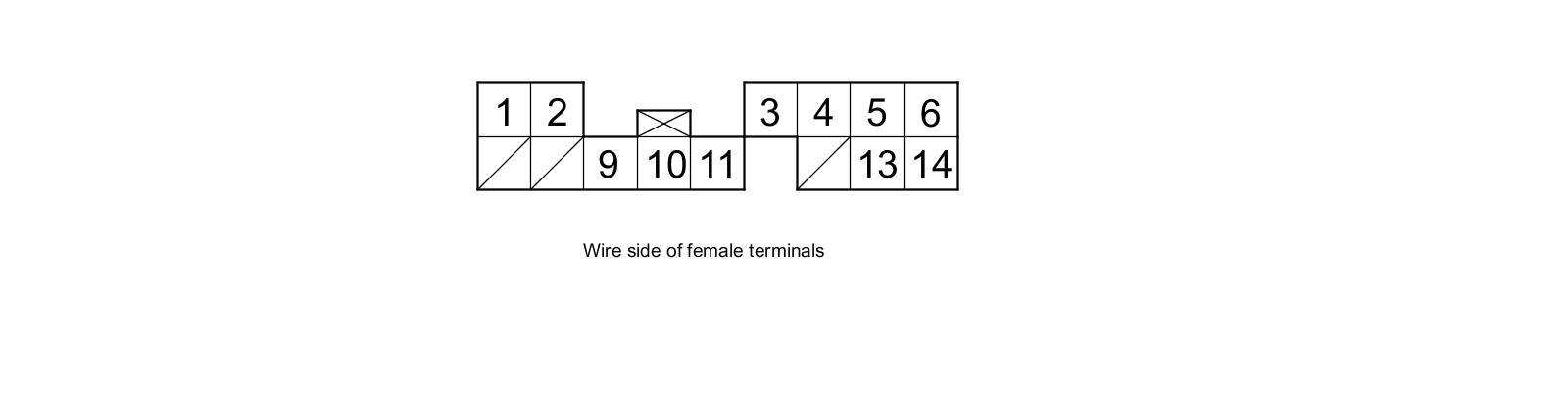

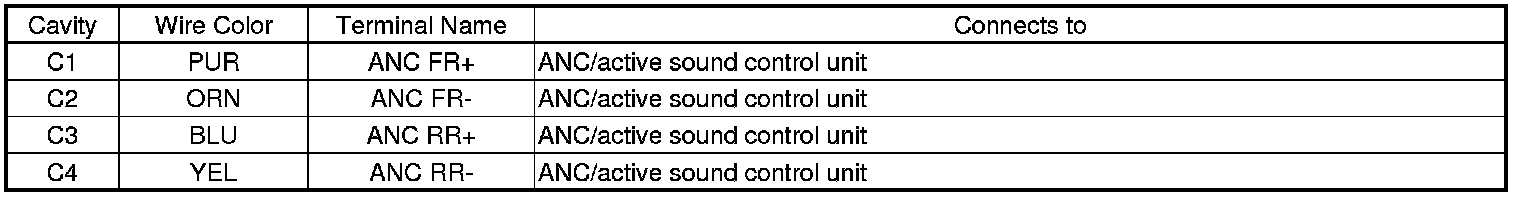

AUDIO UNIT CONNECTOR C (14P)

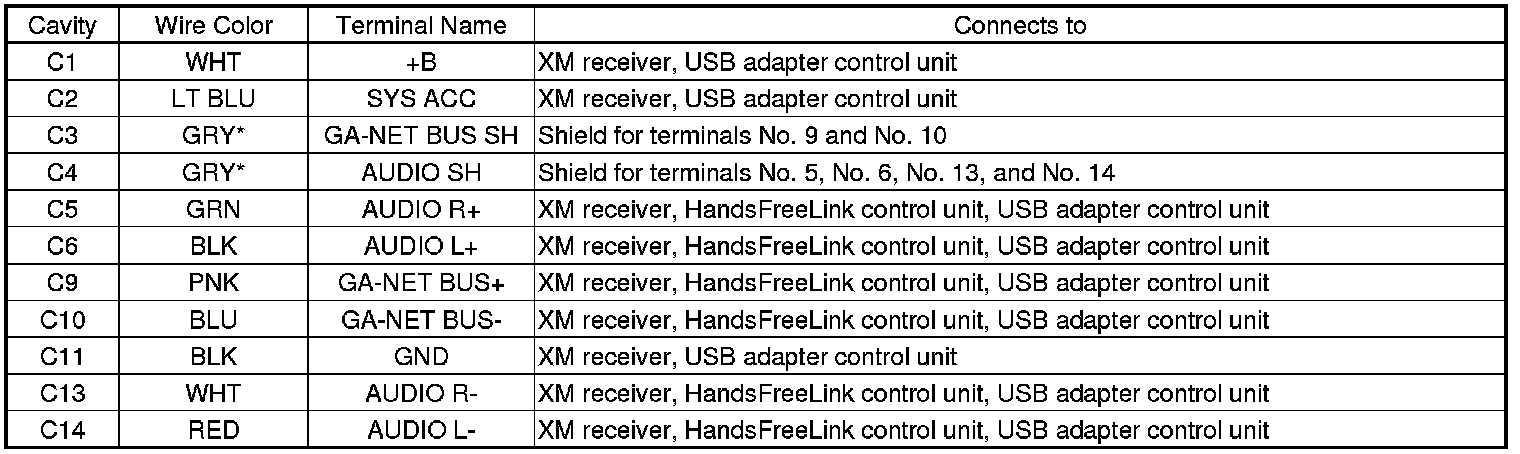

Audio Unit Connector C (14P)

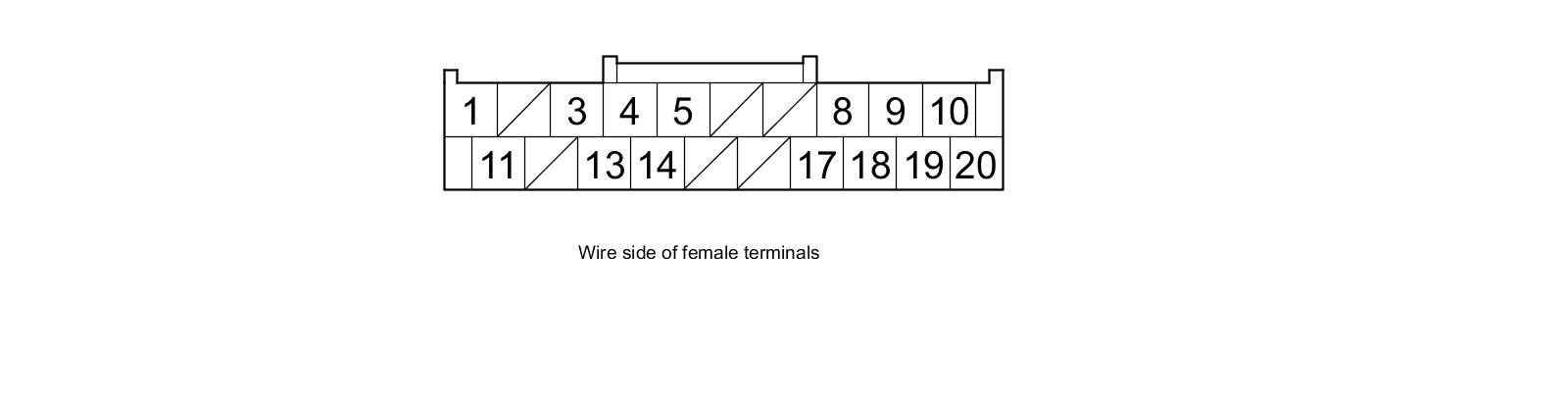

AUDIO UNIT CONNECTOR D (20P)

Audio Unit Connector D (20P)

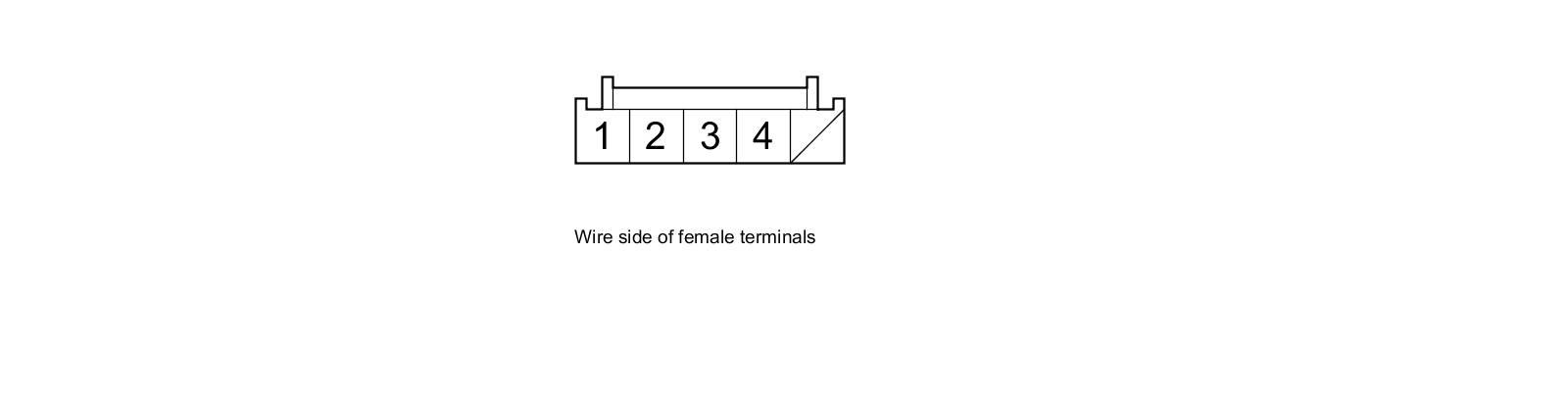

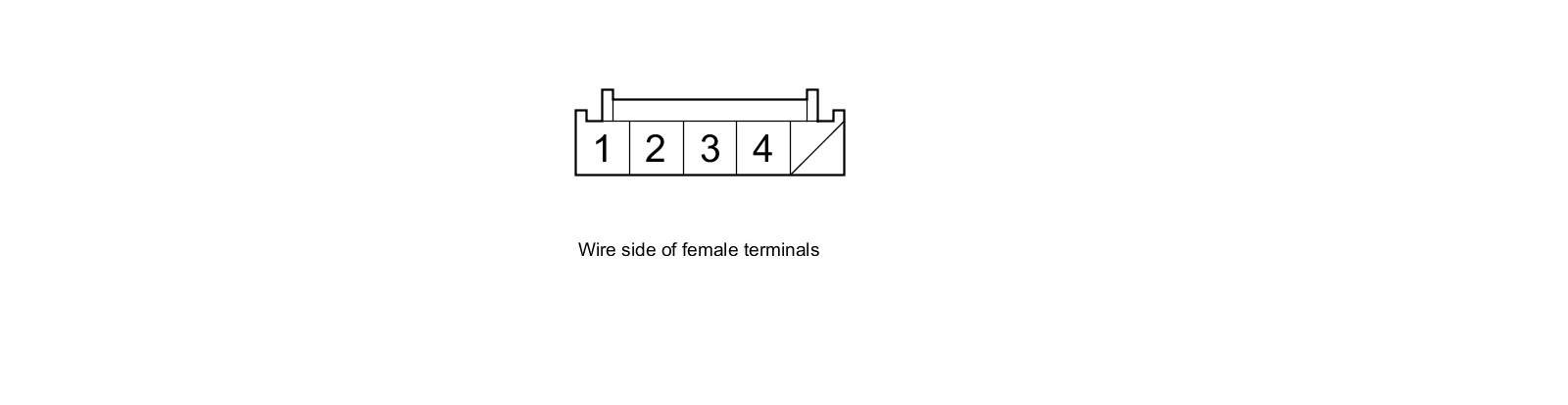

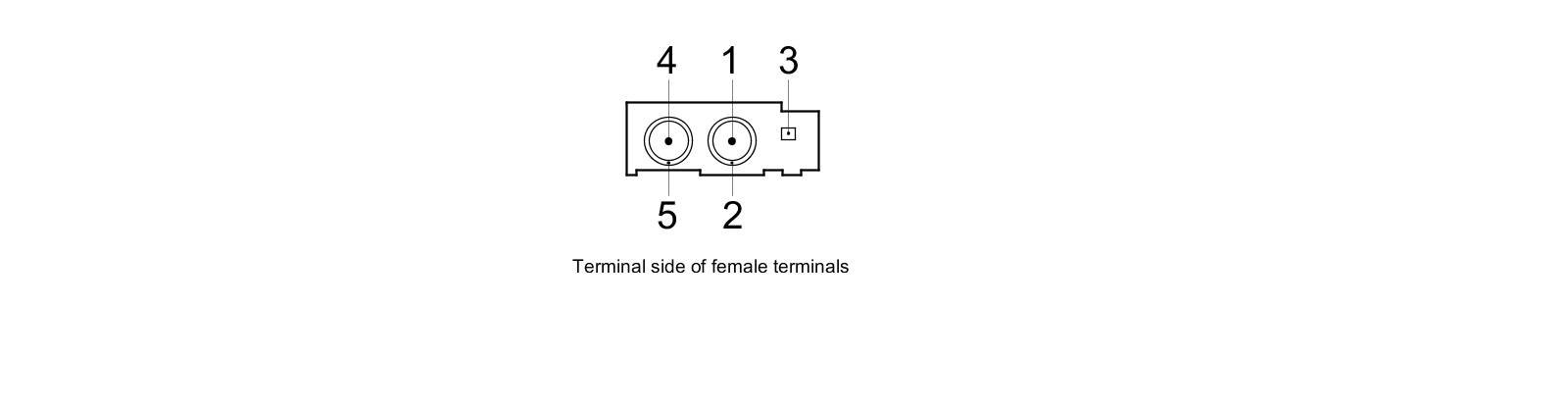

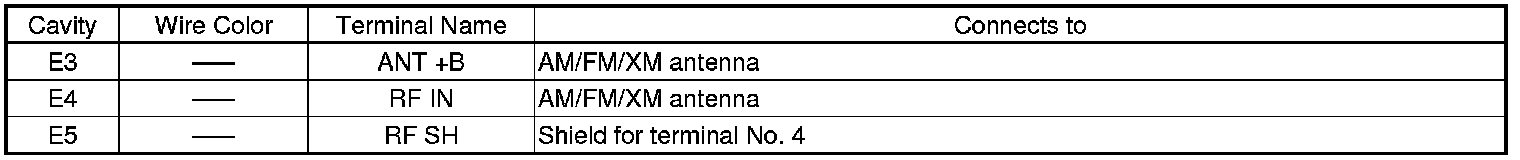

AUDIO UNIT CONNECTOR E (5P)

Audio Unit Connector E (5P)

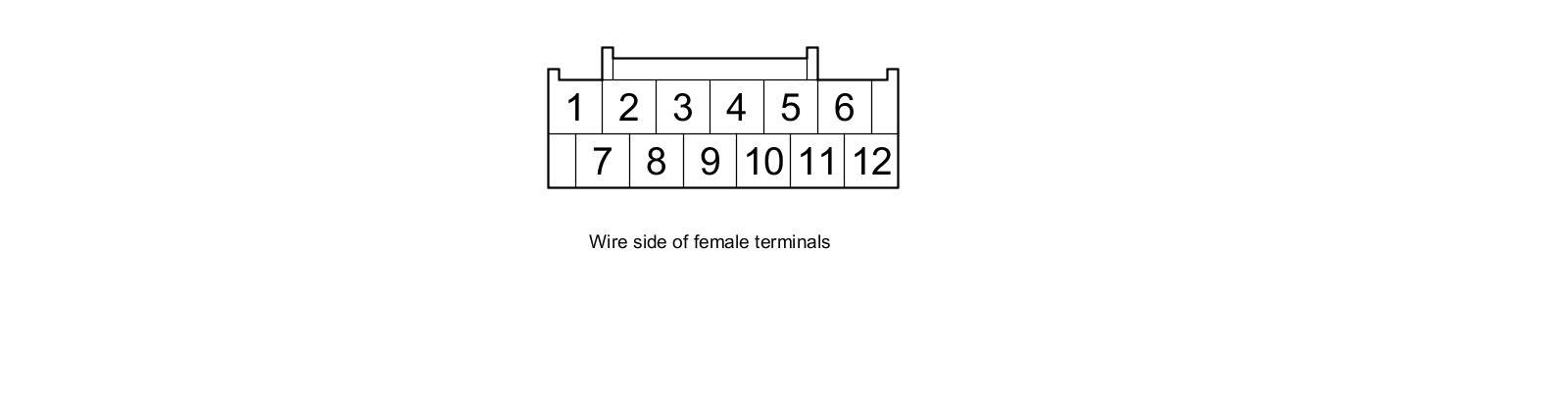

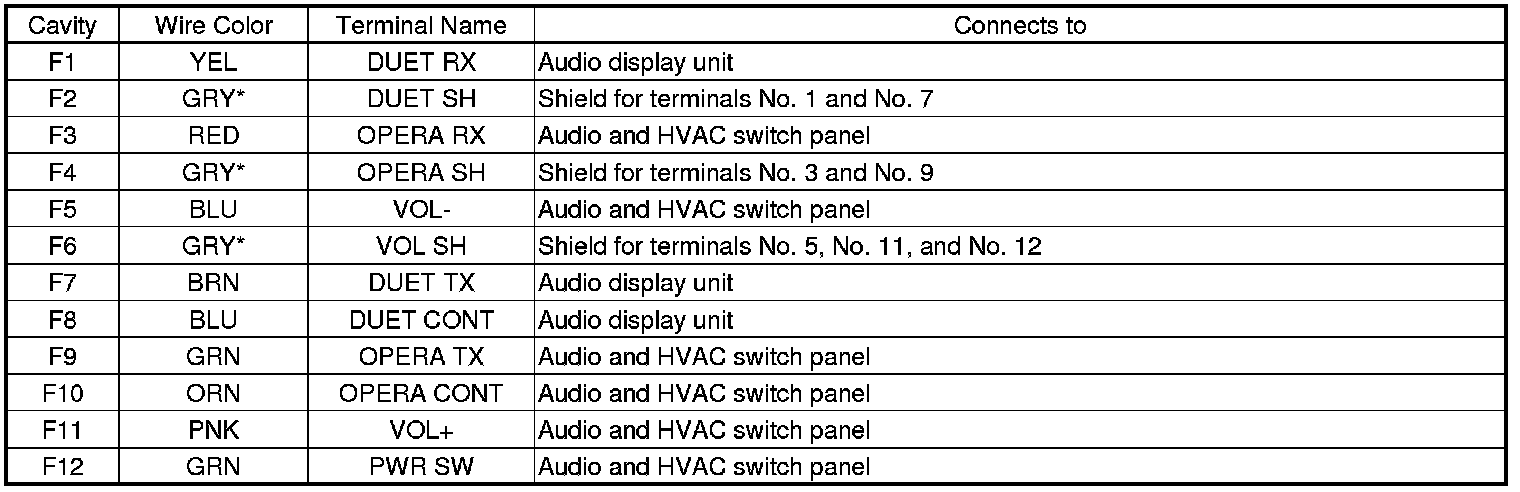

AUDIO UNIT CONNECTOR F (12P)

Audio Unit Connector F (12P)

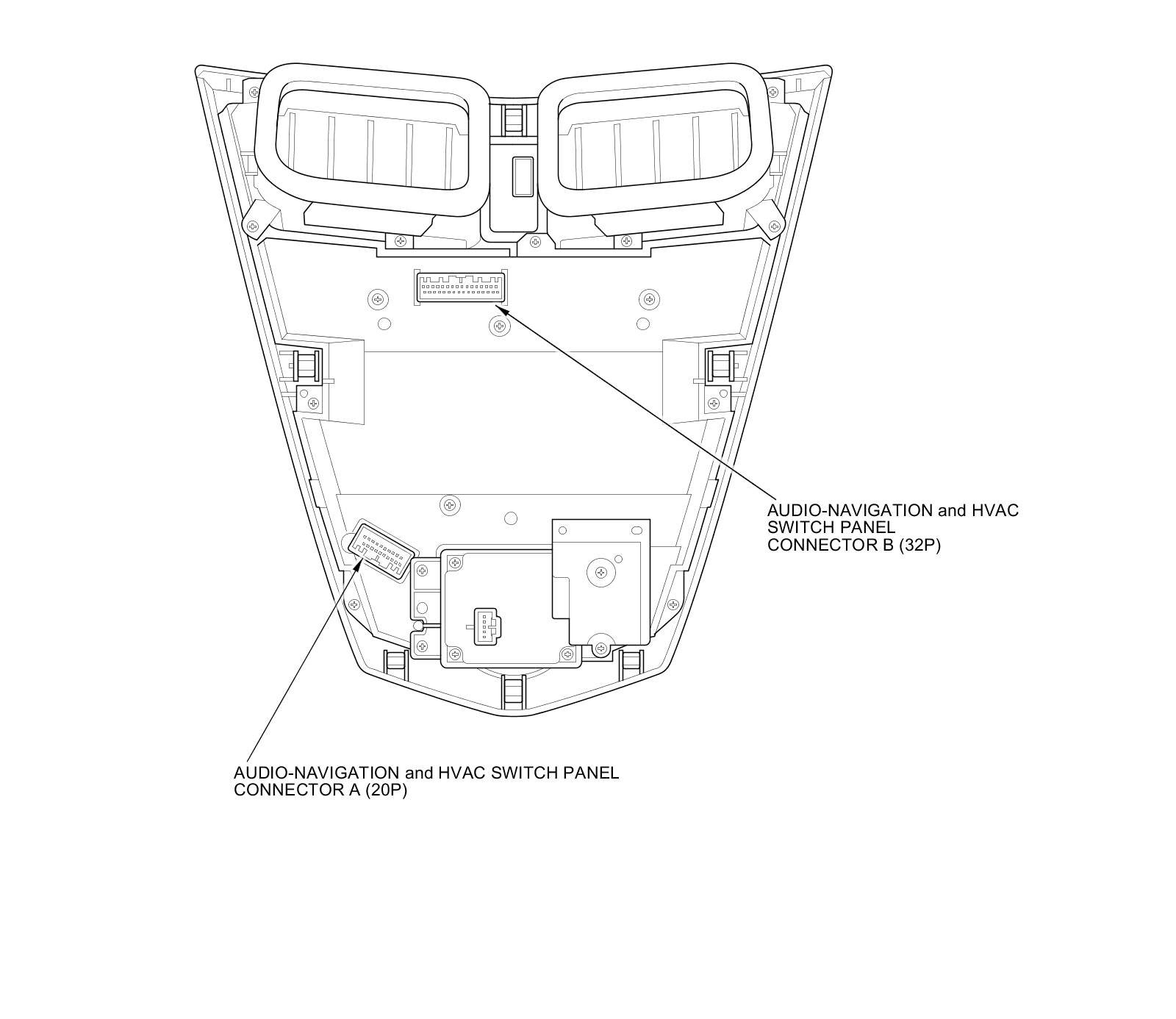

Audio-Navigation and HVAC Switch Panel Connector for Inputs and Outputs (with navigation)

AUDIO-NAVIGATION and HVAC SWITCH PANEL CONNECTOR A (20P)

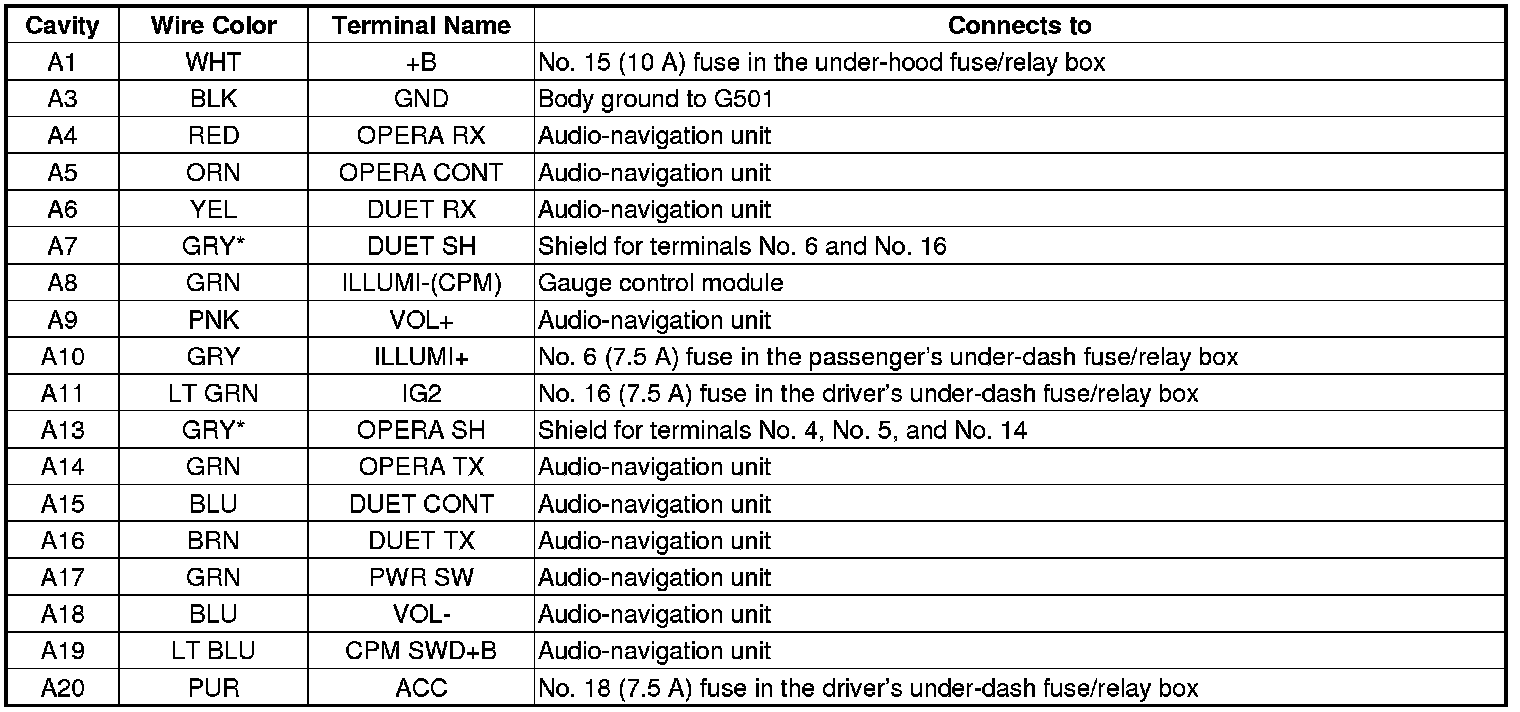

Audio-Navigation and HVAC Switch Panel Connector A (20P)

AUDIO-NAVIGATION and HVAC SWITCH PANEL CONNECTOR B (32P)

NOTE: Refer to the climate control circuit diagram for audio-navigation and HVAC switch panel connector B (32P) terminals.

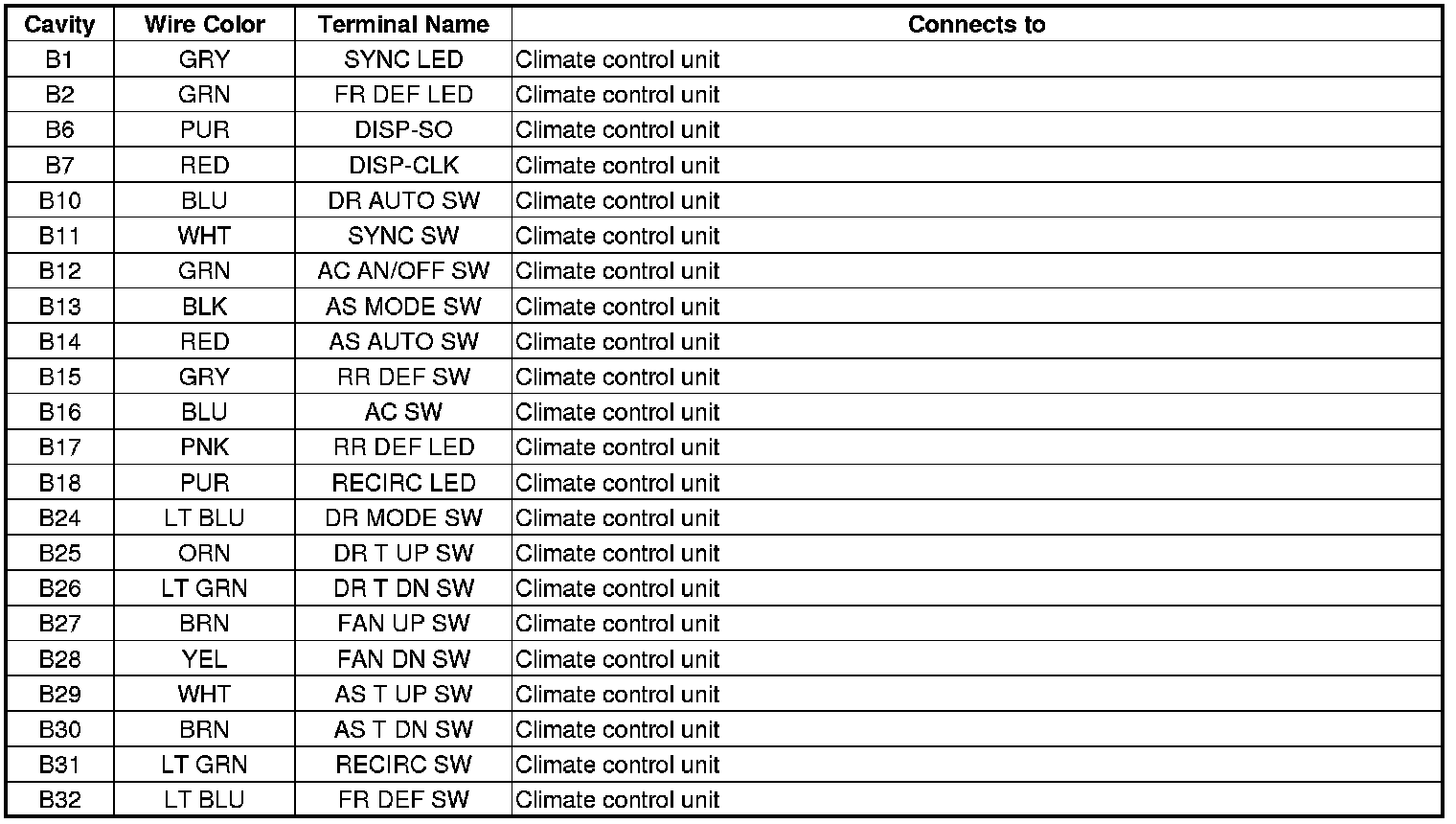

Audio-Navigation and HVAC Switch Panel Connector B (32P)

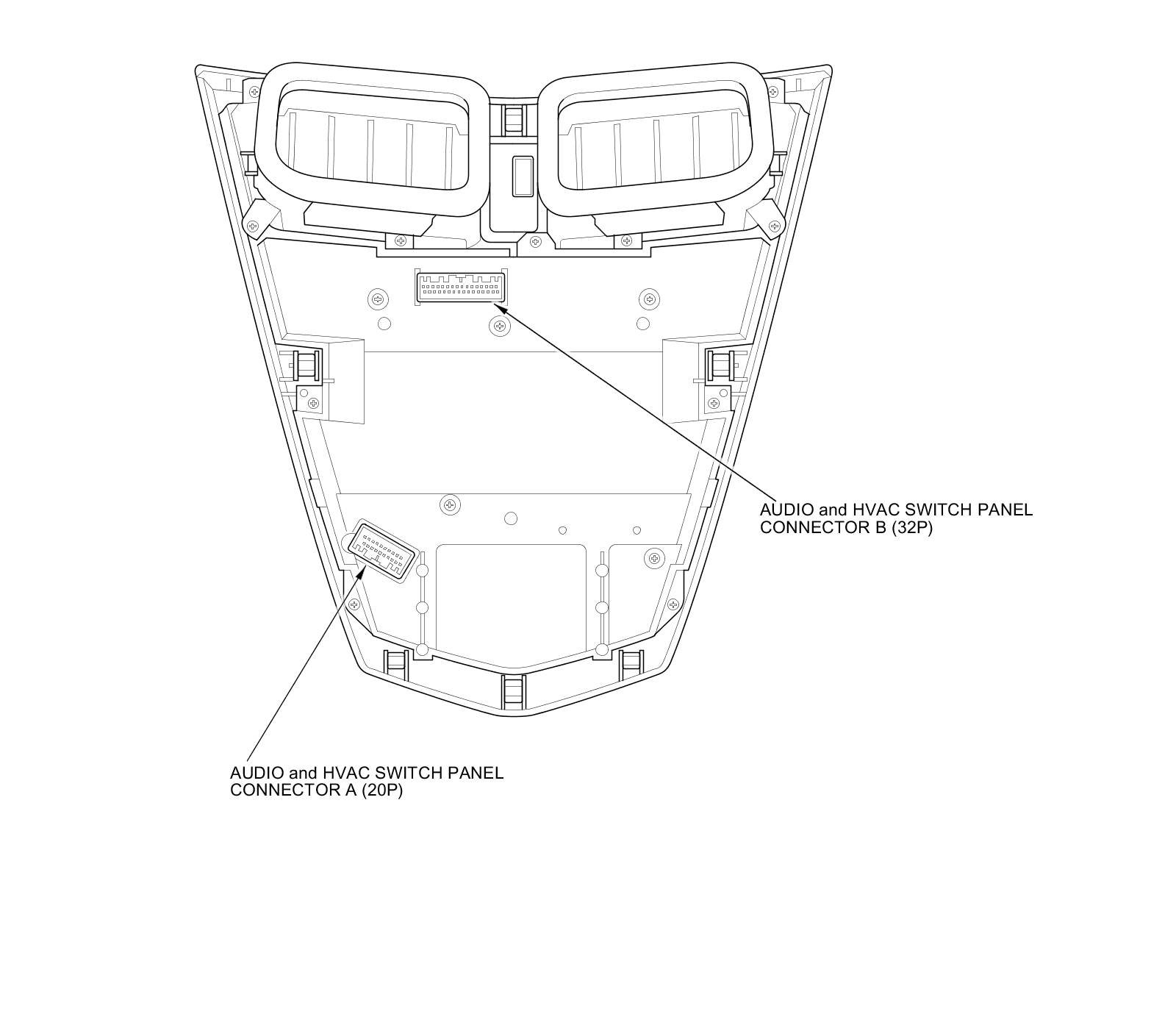

Audio and HVAC Switch Panel Connector for Inputs and Outputs (without navigation)

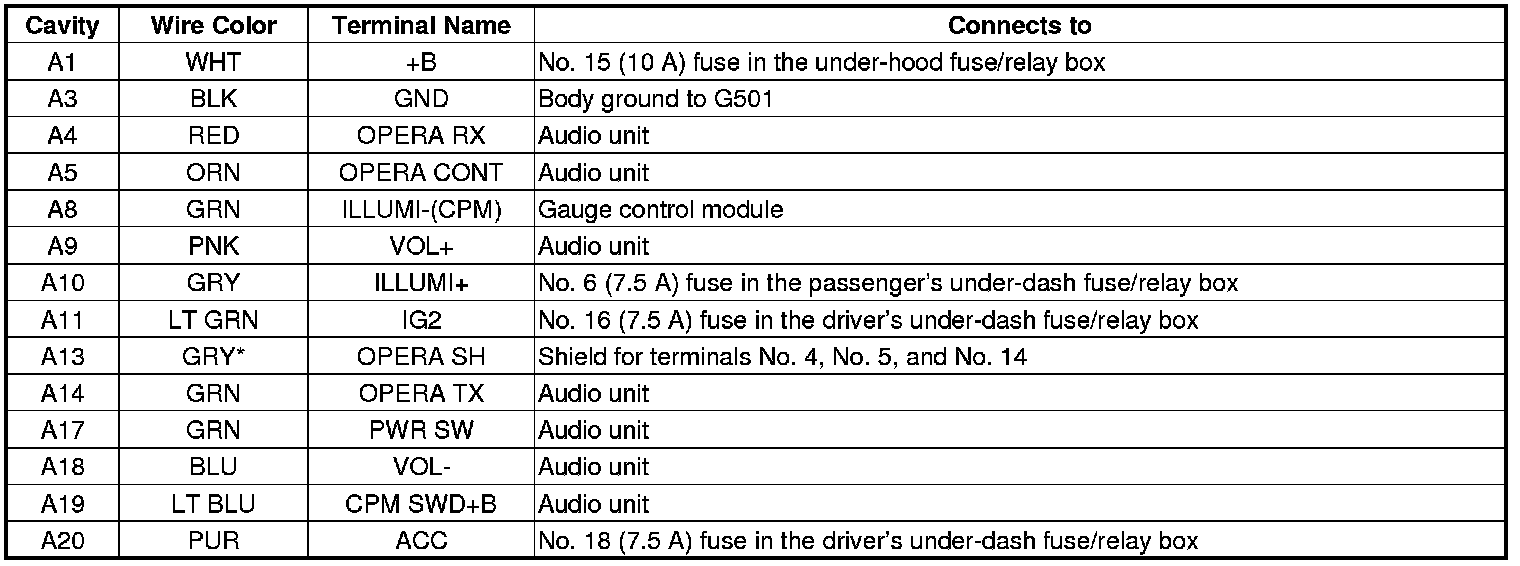

AUDIO and HVAC SWITCH PANEL CONNECTOR A (20P)

Audio and HVAC Switch Panel Connector A (20P)

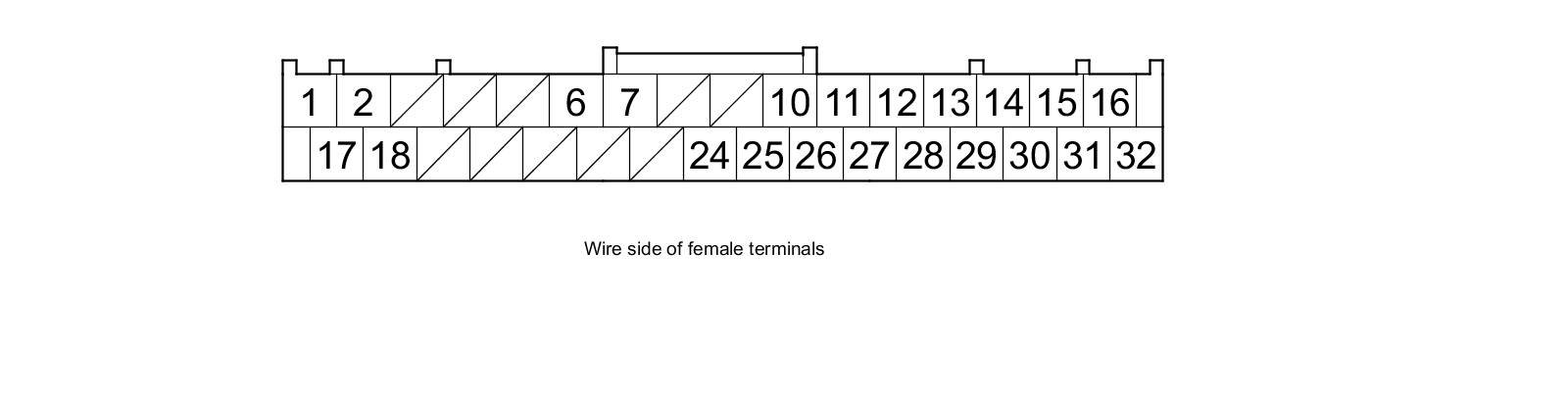

AUDIO and HVAC SWITCH PANEL CONNECTOR B (32P)

NOTE: Refer to the climate control circuit diagram for audio and HVAC switch panel connector B (32P) terminals.
