Rearview Camera Image Does Not Change

Navigation System Symptom Troubleshooting - Rearview camera image does not change

Rearview camera image does not change

NOTE: You can select three different rearview camera angles for backing up. If there is no camera image on the display, go to Rearview camera image does not come on or work properly troubleshooting Rearview Camera Image Does Not Come On or Work Properly.

1. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

2. Go into the System Diagnostic Mode, and use the Hard Key test under the Unit Check.

Does the interface dial ENTER button work properly?

YES -

Go to step 3.

NO -

Go to Interface dial buttons do not work troubleshooting Interface Dial Buttons Do Not Work.

3. With the brake pedal pressed, move the shift lever into the R position.

4. Press the ENTER button several times, and check the rearview camera image.

Do any of the three camera views appear on the screen?

YES -

Go to step 5.

NO -

Go to Rearview camera image does not come on or work properly troubleshooting Rearview Camera Image Does Not Come On or Work Properly.

5. Press the ENTER button to see if the rearview image changes between the wide view, the normal view, and the top down view in this order.

Does the rearview camera image change properly?

YES -

Intermittent failure, the system is OK at this time.

NO -

Go to step 6.

6. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

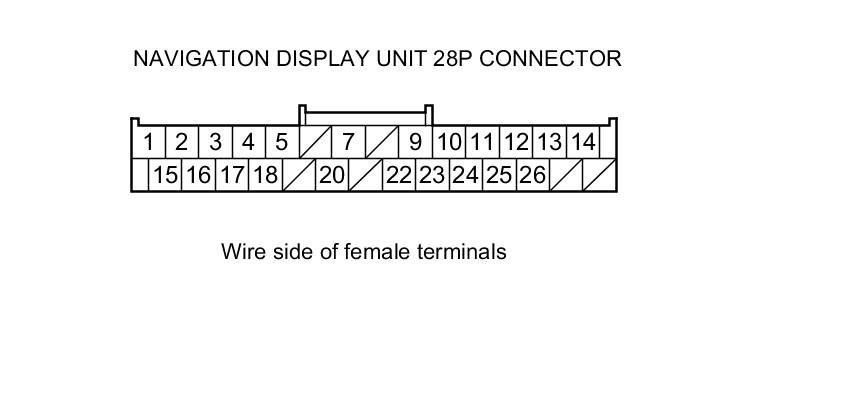

7. Disconnect the navigation display unit 28P connector and the rearview camera 16P connector.

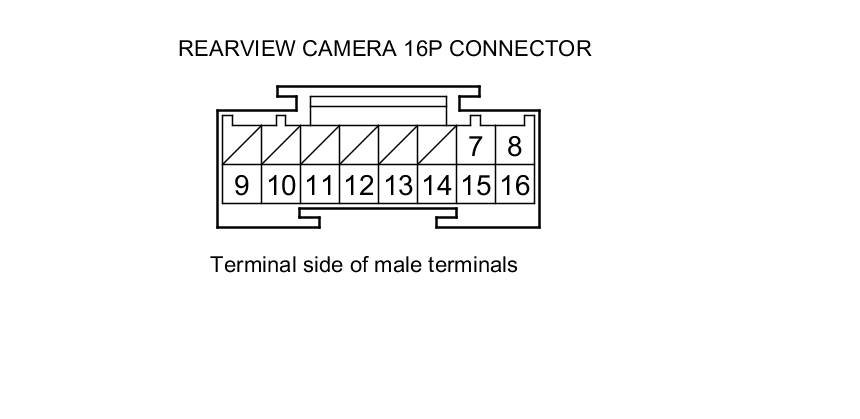

8. Check for continuity between body ground and rearview camera 16P connector terminals No. 9 and No. 10 individually.





Is there continuity?

YES -

There is a short to ground in the wire(s) between the navigation display unit and the rearview camera. Replace the affected shielded harness.

NO -

Go to step 9.

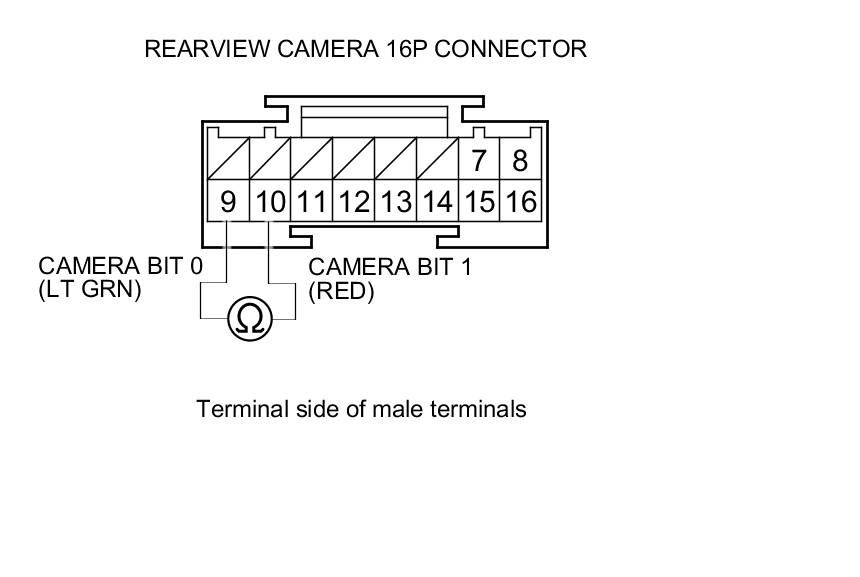

9. Check for continuity between rearview camera 16P connector terminals No. 9 and No. 10.





Is there continuity?

YES -

There is a short in the wires between the navigation display unit and the rearview camera. Replace the affected shielded harness.

NO -

Go to step 10.

10. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

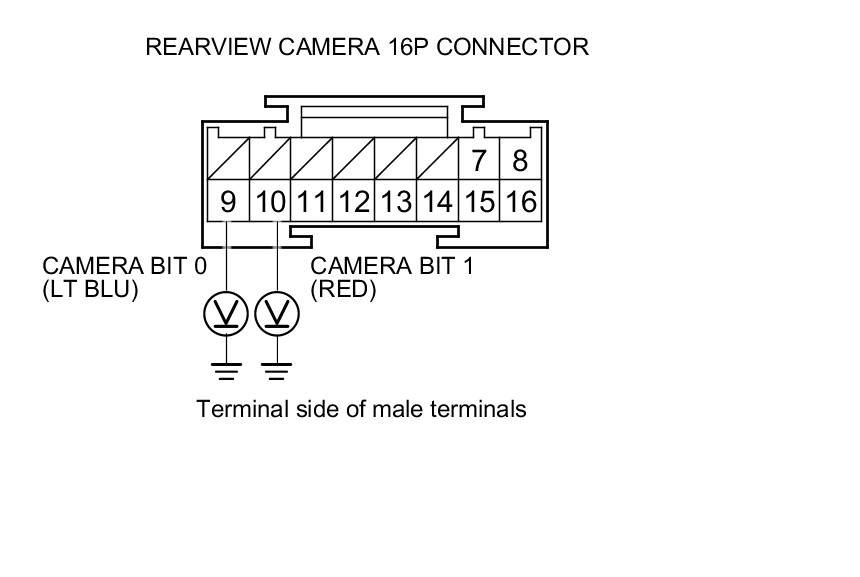

11. Measure the voltage between body ground and rearview camera 16P connector terminals No. 9 and No. 10 individually.





Is there less than 2.0 V?

YES -

Go to step 12.

NO -

There is a short to power in the wire(s) between the navigation display unit and the rearview camera. Replace the affected shielded harness.

12. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

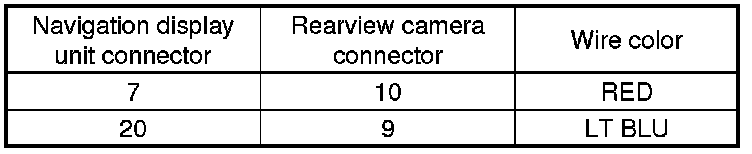

13. Check for continuity between the navigation display unit 28P connector and the rearview camera 16P connector according to the table.













Is there continuity?

YES -

Replace the rearview camera Service and Repair.

NO -

There is an open in the wire(s) between the navigation display unit and the rearview camera. Replace the affected shielded harness.
