Transfer Breather Hose Replacement (M/T)

Transfer Breather Hose Replacement

1. Raise the vehicle on a lift, and make sure it is supported securely.

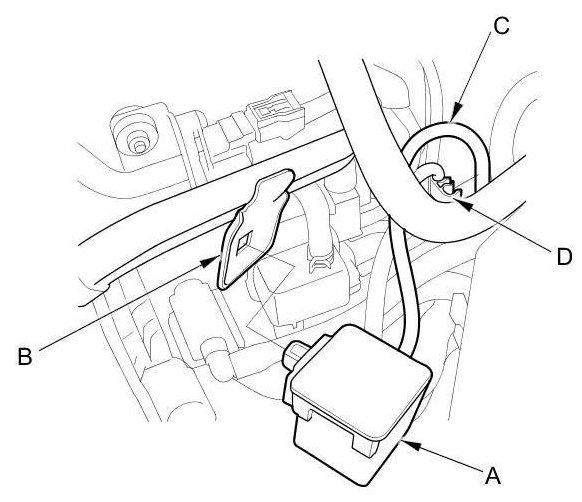

2. Remove the transfer breather box (A) from its bracket (B).





3. Remove the breather hose (C) from the hose clamp (D).

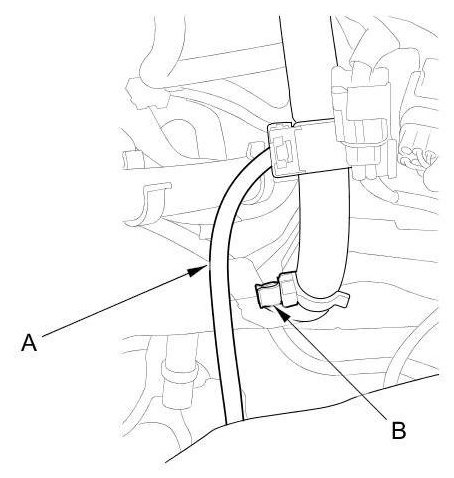

4. Remove the breather hose (A) from the hose clamp (B).

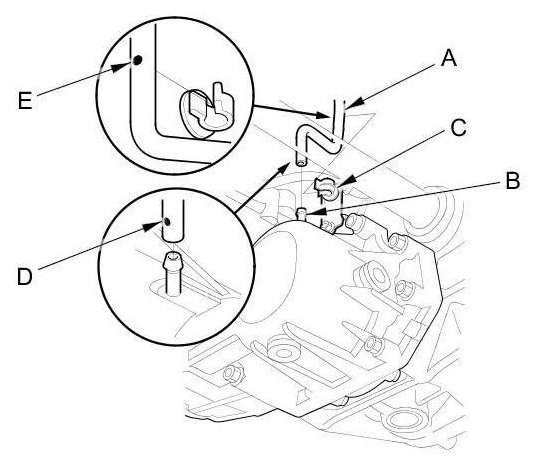

5. Disconnect the breather hose (A) from the transfer breather pipe (B), and remove the breather hose from the hose clamp (C).





6. Connect the breather hose over the breather pipe with facing the dot mark (D) to the rear side of the vehicle, and install the hose on the hose clamp at the dot mark (E).

7. Install the breather hose (A) on the hose clamp (B).






8. Install the transfer breather box (A) on its bracket (B).





9. Install the breather hose (C) on the hose clamp (D).
