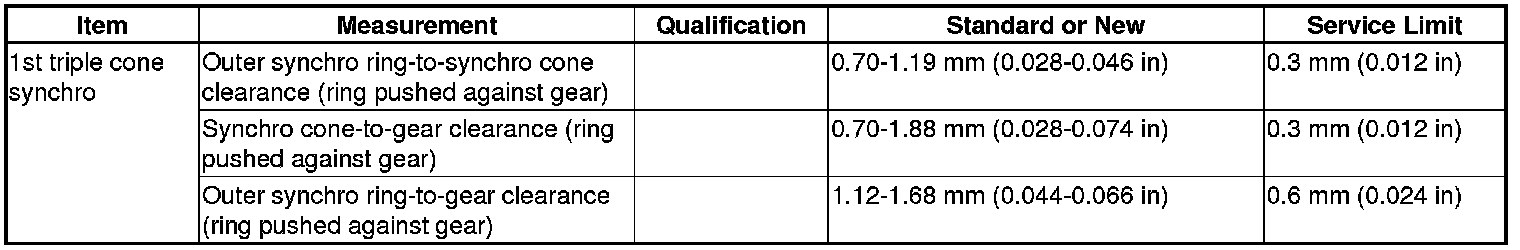

1st Triple Cone Synchro Specification(s) (M/T)
1st Triple Cone Synchro Specification(s) (M/T)
1st triple cone synchro
1st triple cone synchro
