M/T Main Shaft Oil Seal Replacement

M/T Mainshaft Oil Seal Replacement

Special Tools Required

- Bearing Driver Attachment, 42 x 47 mm 07746-0010300
- Driver Handle, 15 x 135L 07749-0010000

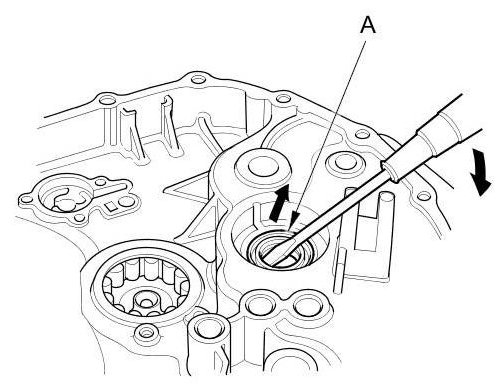

1. Remove the oil seal (A) from the clutch housing.

NOTE: Be careful not to damage the clutch housing while removing the oil seal.

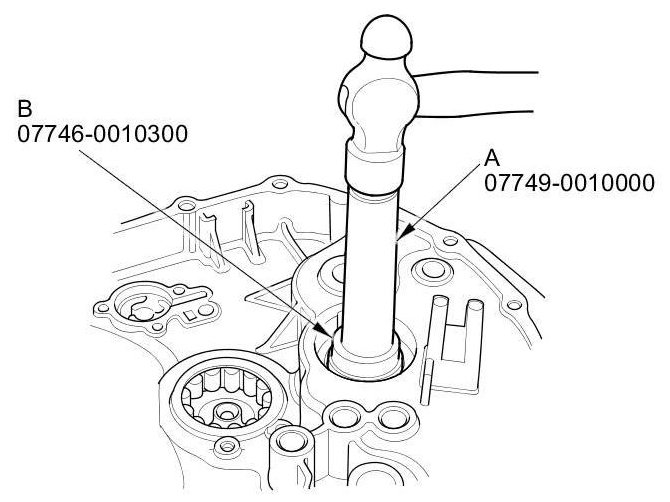

2. Drive in a new oil seal flush with the clutch housing using the 15 x 135L driver handle (A) and the 42 x 47 mm bearing driver attachment (B).
