M/T Differential Carrier Bearing Outer Race Replacement

M/T Differential Carrier Bearing Outer Race Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100

NOTE:

- The bearing outer race and the tapered roller bearing should be replaced as a set.

- Whenever the tapered roller bearing and the bearing outer race are replaced, do the carrier bearing preload adjustment M/T Differential Carrier Bearing Preload Adjustment while reassembling the transmission.

1. Remove the oil seals from the transmission housing and the clutch housing M/T Differential Oil Seal Replacement.

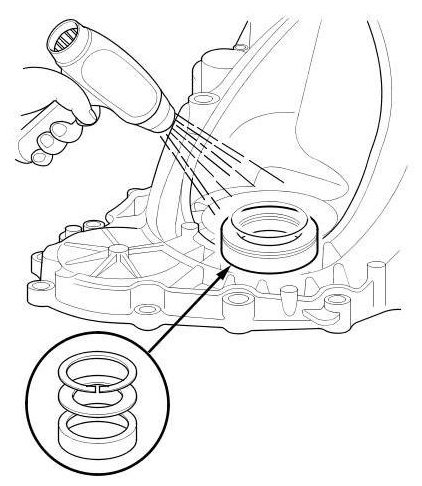

2. Remove the bearing outer race, the spacer, and the 81 mm shim from the transmission housing by heating the housing to about 212 °F (100 °C) with a heat gun.

NOTE: Do not reuse the 81 mm shim if the outer race was driven out.

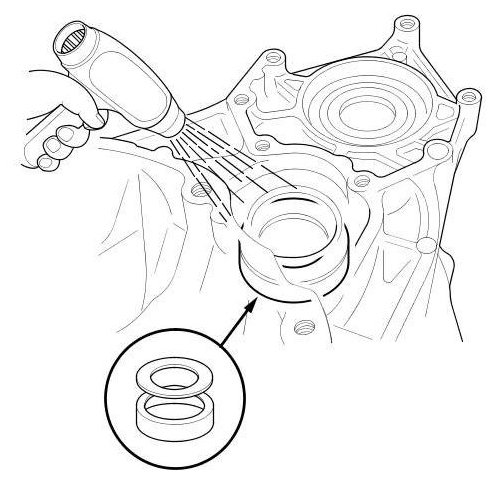

3. Remove the bearing outer race and the spacer from the clutch housing by heating the housing to about 212 °F (100 °C) with a heat gun.

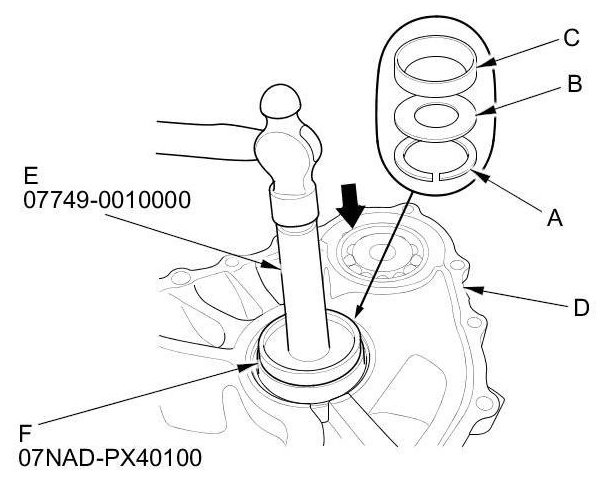

4. Install the 81 mm shim (A), the spacer (B), and the bearing outer race (C) into the transmission housing (D) using the 15 x 135L driver handle (E) and the 78 x 80 mm bearing driver attachment (F).

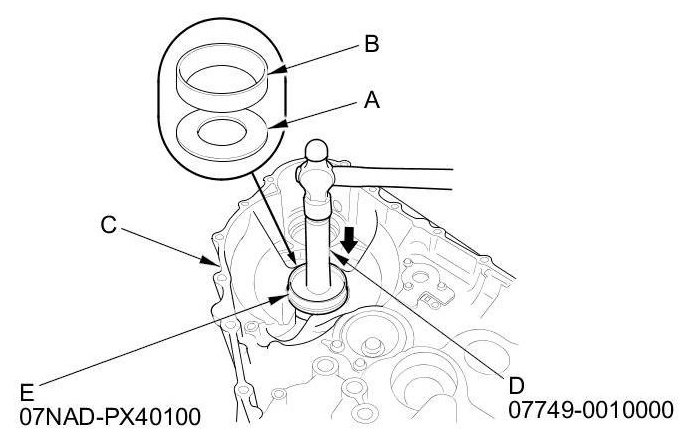

5. Install the spacer (A) and the bearing outer race (B) into the clutch housing (C) using the 15 x 135L driver handle (D) and the 78 x 80 mm bearing driver attachment (E).





6. Install the oil seals into the transmission housing and the clutch housing M/T Differential Oil Seal Replacement.
