Torque Converter Housing Third Shaft Bearing Replacement (A/T)

Torque Converter Housing Third Shaft Bearing Replacement

Special Tools Required

- Adjustable Bearing Puller, 25-40 mm 07736-A01000B
- Bearing Driver Attachment, 52 x 55 mm 07746-0010400
- Driver Handle, 15 x 135L 07749-0010000
- Slide Hammer 07936-371020A
- Bearing Remover Shaft 07JAC-PH80200

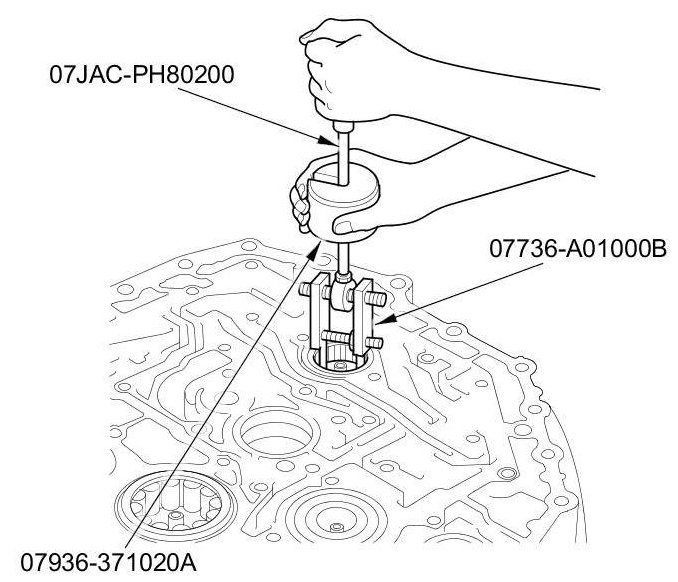

1. Remove the third shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller, the bearing remover shaft, and the slide hammer.

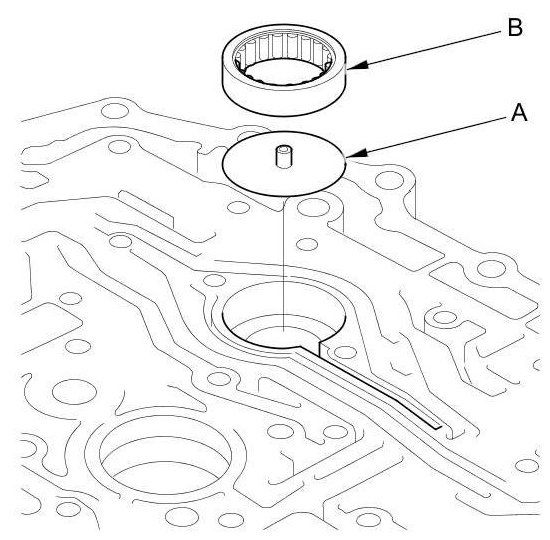

2. Check the ATF guide plate (A), and replace it if it is damaged.





3. Install a new bearing (B) in the torque converter housing.

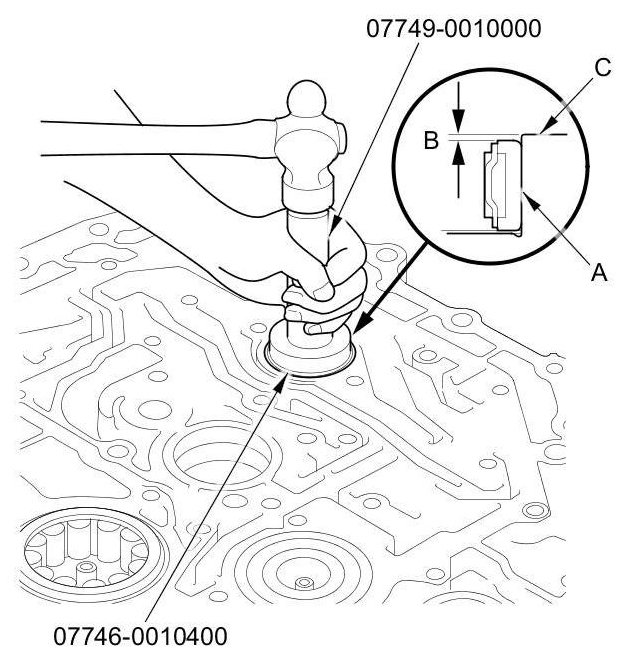

4. Drive the bearing (A) into the torque converter housing using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment; install the bearing to a depth (B) of 0-0.07 mm(0-0.0012 in) below the torque converter housing surface (C).
