Torque Converter Housing Secondary Shaft Bearing Replacement

Torque Converter Housing Secondary Shaft Bearing Replacement

Special Tools Required

- Adjustable Bearing Puller, 45-75 mm 07YAC-0010100
- Bearing Driver Attachment, 62 x 68 mm 07746-0010500
- Driver Handle, 15 x 135L 07749-0010000
- Slide Hammer 07936-371020A
- Bearing Remover Shaft 07JAC-PH80200

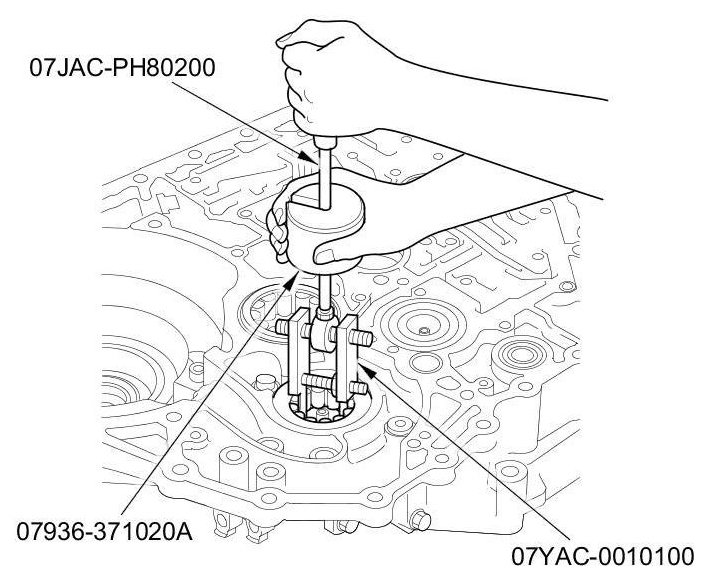

1. Remove the secondary shaft bearing from the torque converter housing using the 45-75 mm adjustable bearing puller, the bearing remover shaft, and the slide hammer.

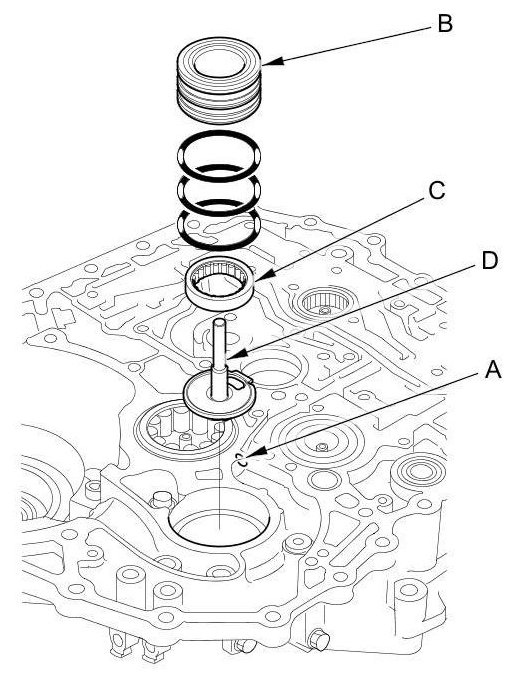

2. Cover the tip of the 1st clutch ATF feed pipe with a shop rag. Apply air pressure to the ATF feed pipe hole (A) of the 1st clutch hydraulic circuit, and remove the ATF guide collar (B), the 28.6 x 40.8 x 13 mm secondary shaft bearing (C), and the ATF feed pipe assembly (D) from the transmission housing.

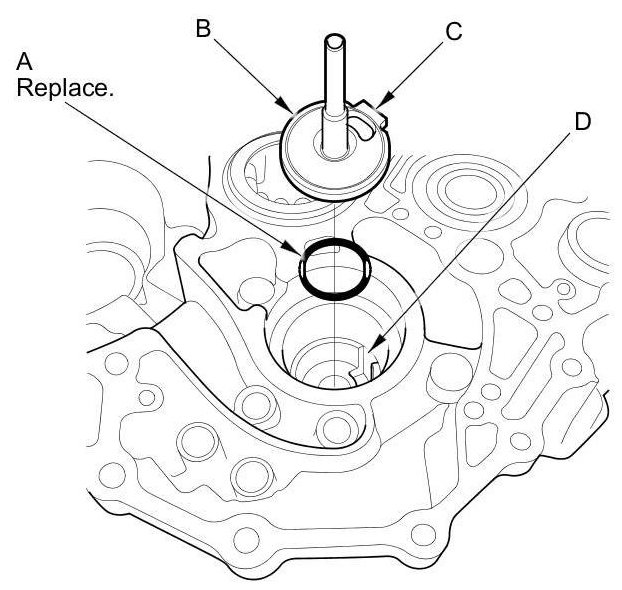

3. Install a new O-ring (A) on the ATF feed pipe assembly (B), then install the ATF feed pipe assembly in the torque converter housing by aligning the finger (C) with the groove (D).






4. Install the 28.6 x 40.8 x 13 mm bearing (A) into the torque converter housing.





5. Install new O-rings (B) on the ATF guide collar (C), then install the guide collar in the torque converter housing by aligning the finger (D) with the groove (E).

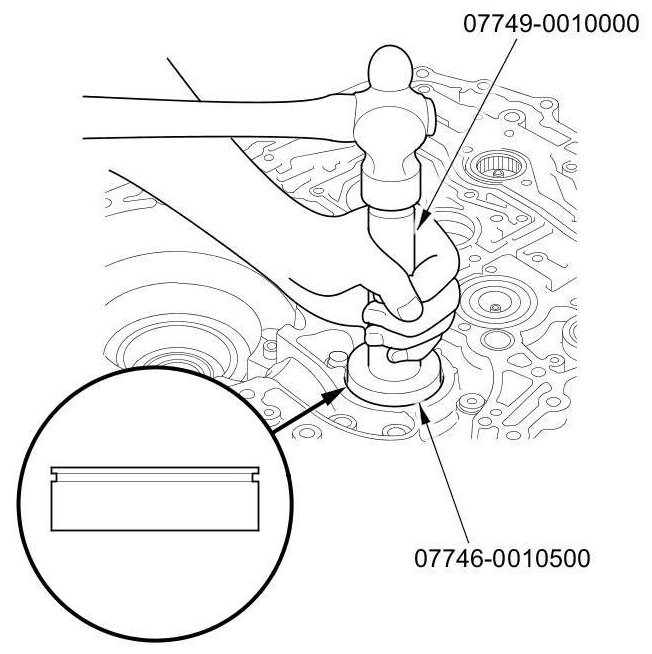

6. Install the bearing until it bottoms in the direction shown in the torque converter housing using the 15 x 135L driver handle and the 62 x 68 mm bearing driver attachment.
