A/T Idler Gear Shaft Installation Height Inspection/Adjustment (A/T)

A/T Idler Gear Shaft Installation Height Inspection/Adjustment

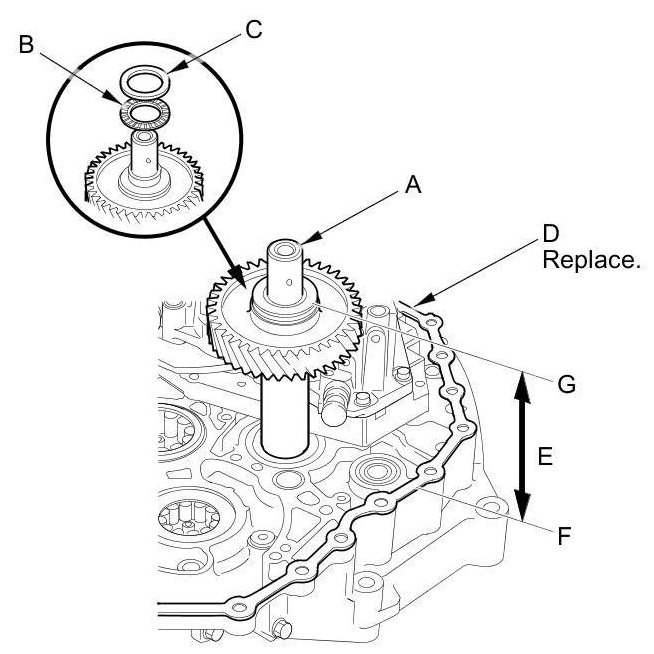

1. Install the idler gear shaft (A) in the torque converter housing, and install the 27.5 x 41 x 2.5 mm thrust needle bearing (B) and the 41.5 mm washer (C) on the idler gear shaft.

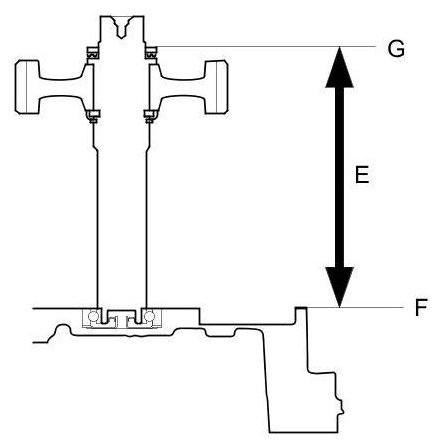

Idler Gear Shaft Cutaway View





2. Install a new gasket (D) on the torque converter housing.

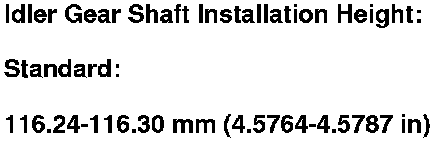

3. Measure the installation height (E) of the idler gear shaft between the surface (F) of the gasket and the surface (G) of the 41.5 mm washer.

4. If the measurement is out of the standard, remove the 41.5 mm washer and measure its thickness.

5. Select and install a new 41.5 mm washer, then recheck the installation height.

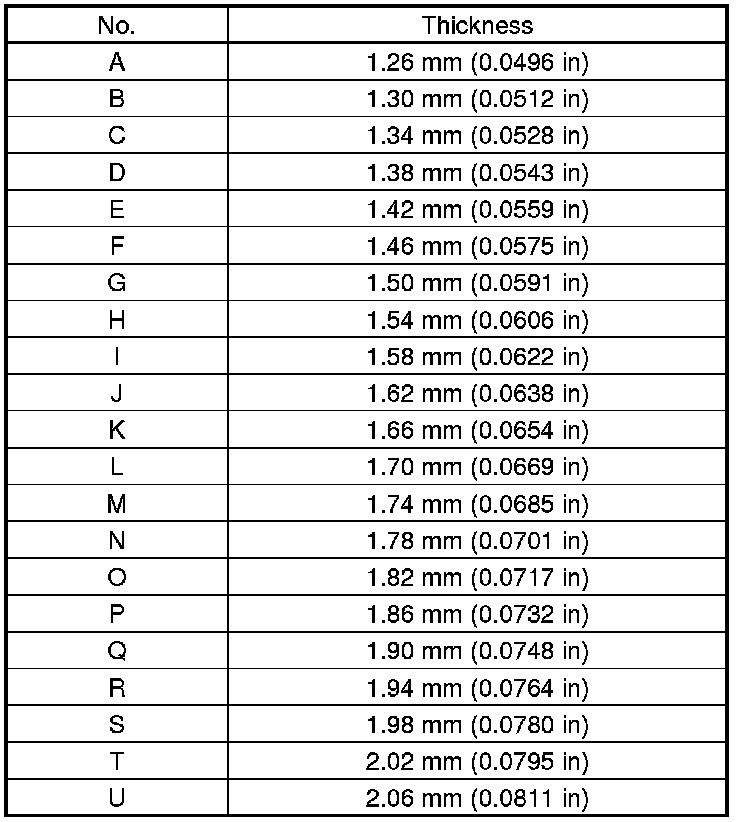

WASHER, 41.5 mm
