A/T Differential Carrier Bearing Outer Race Replacement

A/T Differential Carrier Bearing Outer Race Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 83 mm 07HAD-SG00100

NOTE:

- Replace the carrier bearing with a new one whenever the bearing outer race is replaced.
- Do not use the 85 mm thrust shim on the torque converter housing side.
- Adjust the preload after replacing the bearing and the outer race.
- Coat all parts with ATF during installation.

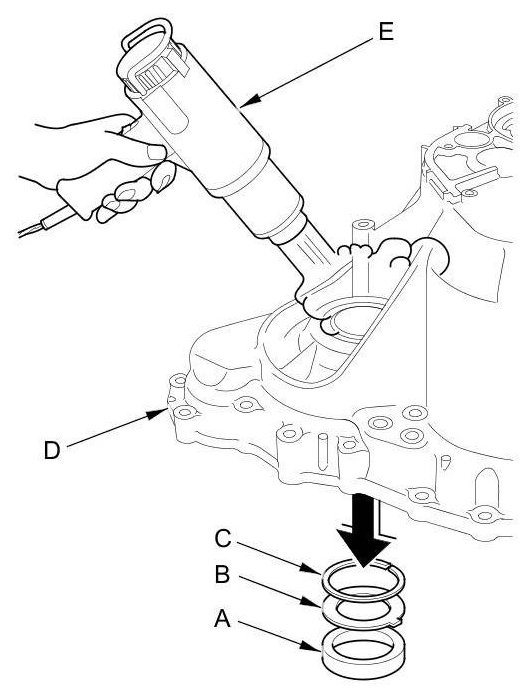

1. Remove the bearing outer race (A), the spacer (B), and the 85 mm thrust shim (C) from the transmission housing (D) by heating the transmission housing to about 212 °F (100 °C) with a heat gun (E). Do not heat the transmission housing more than 212 °F (100 °C).






2. Install the 85 mm thrust shim (A) in the transmission housing (B).





3. Install the spacer (C) by aligning the tab (D) with the groove (E), and install the bearing outer race (F) in the transmission housing.

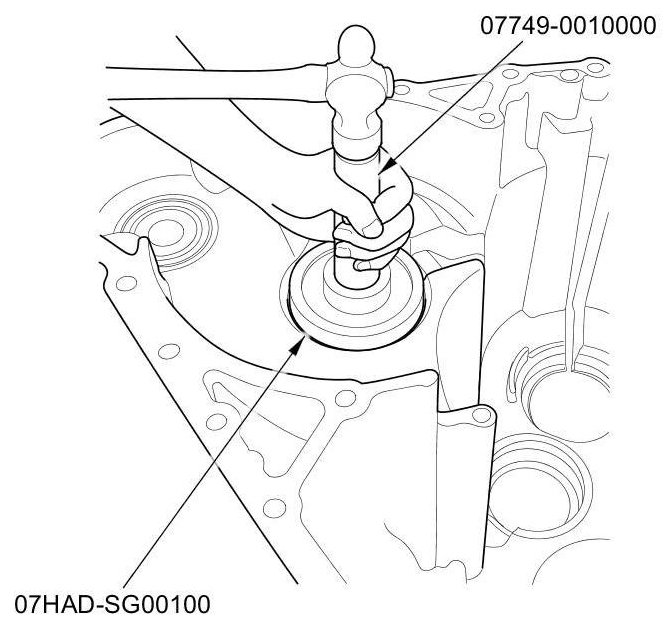

4. Drive the outer race securely into the transmission housing using the 15 x 135L driver handle and the 83 mm attachment so there is no clearance between the outer race, the spacer, the 85 mm thrust shim, and the transmission housing.






5. Remove the bearing outer race (A) and the spacer (B) from the torque converter housing (C).





6. Install the spacer by aligning the tab (D) with the groove (E), and install a new bearing outer race in the torque converter housing.

7. Drive the bearing outer race securely in the torque converter housing using the 15 x 135L driver handle and the 83 mm attachment.
