Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Countershaft 2nd Gear Specification(s) (M/T)

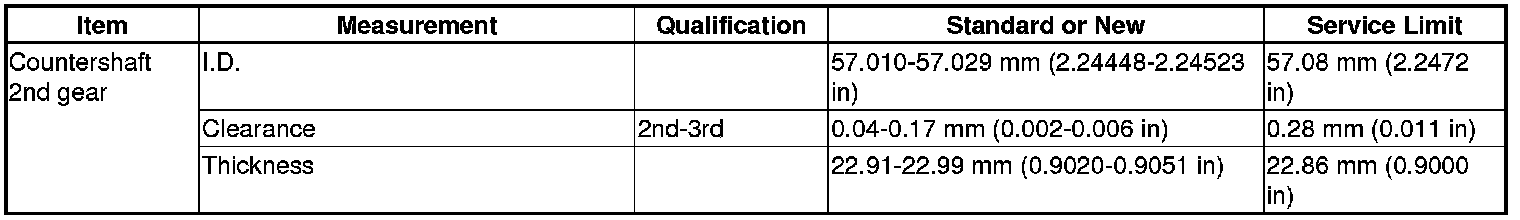

Countershaft 2nd Gear Specification(s) (M/T)




Countershaft 2nd gear

Countershaft 2nd gear
