Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Block Specification(s)

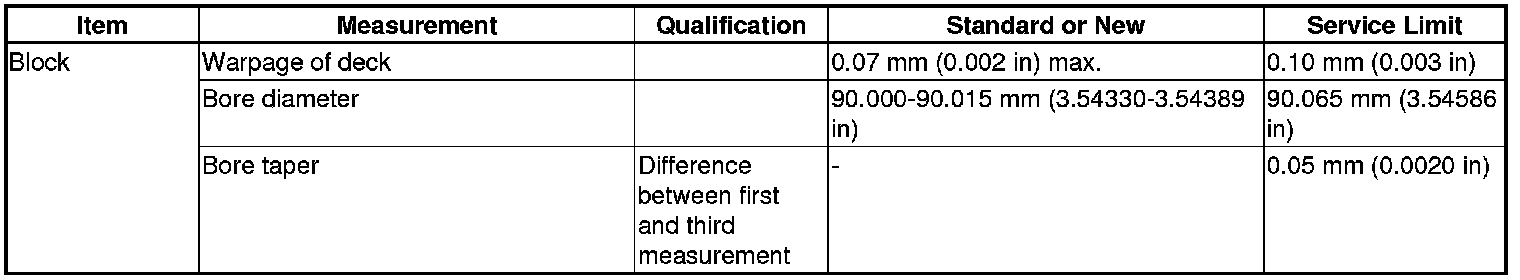

Block Specification(s)




Block

Block
