Transmission Fluid Pressure Switch D (5th Clutch) Replacement (A/T)

Transmission Fluid Pressure Switch D (5th Clutch) Replacement

1. Remove the air cleaner Service and Repair.

2. Remove the intake air duct.

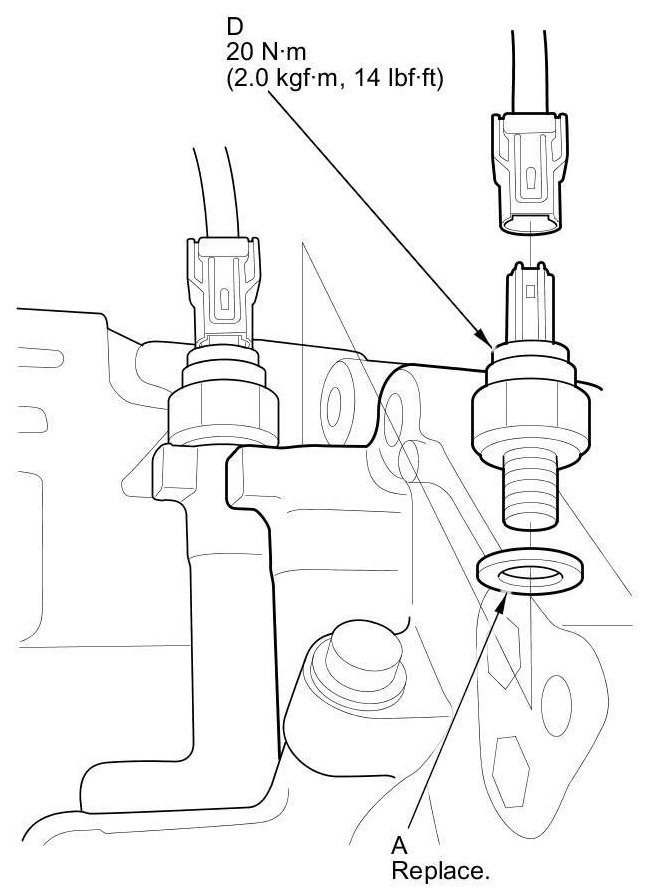

3. Disconnect the transmission fluid pressure switch D (5th clutch) connector, and remove transmission fluid pressure switch D (5th clutch) and the sealing washer (A).





4. Install a new transmission fluid pressure switch D (5th clutch) with a new sealing washer, and tighten the switch.

5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the intake air duct.

7. Install the air cleaner Service and Repair.
