Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Front A/F Sensor (B2, S1) Connector View

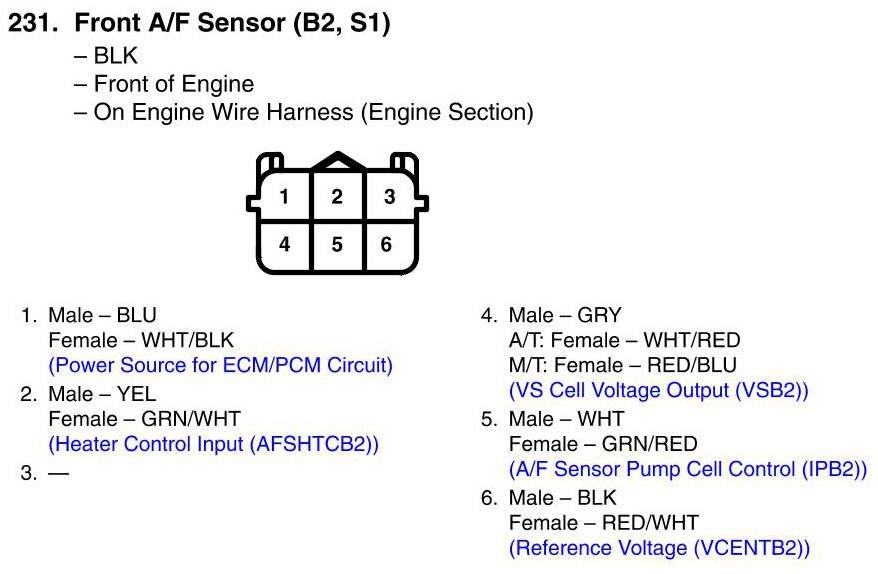

Front A/F Sensor (B2, S1) Connector View
