Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Electronic Throttle Control System Component Location Index

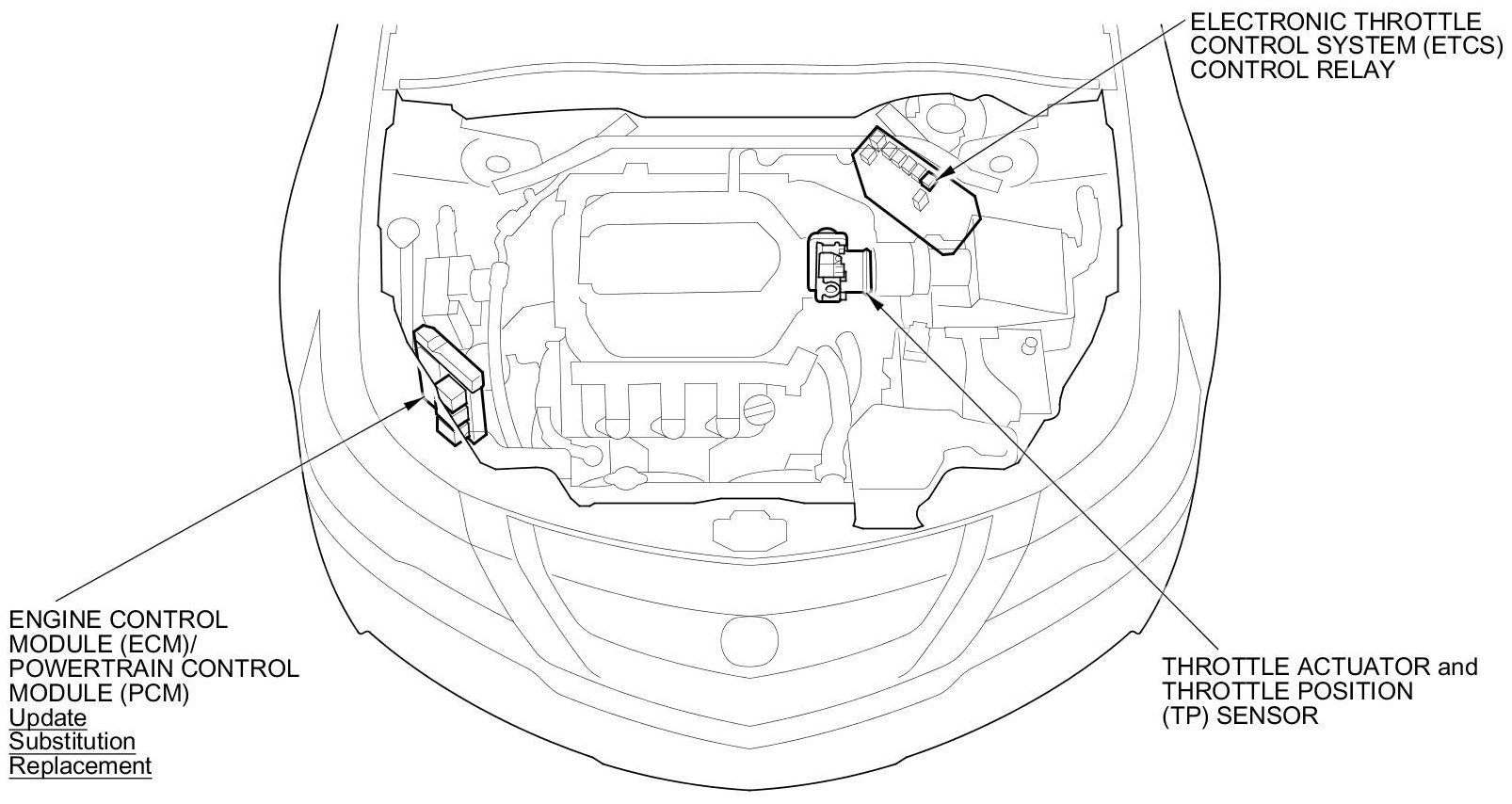

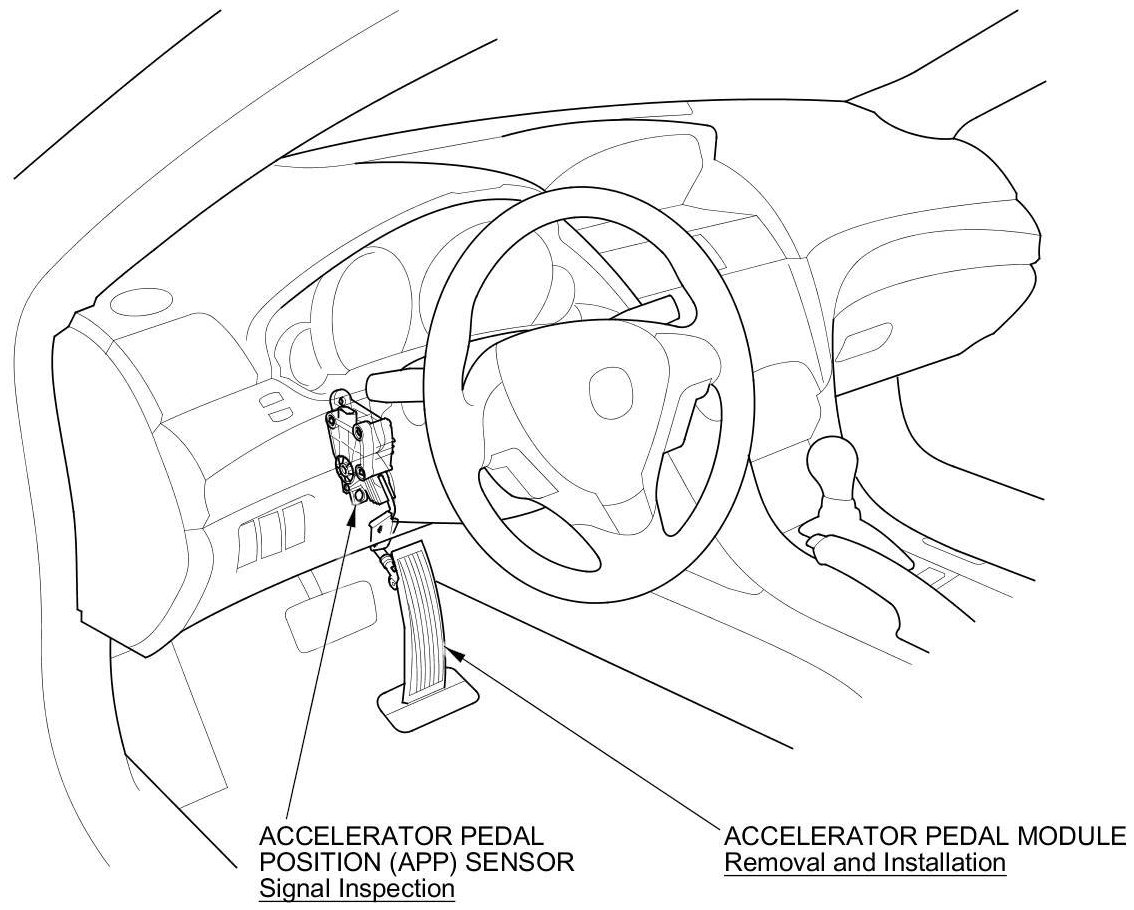

Electronic Throttle Control System Component Location Index




Electronic Throttle Control System Component Location Index
