Relay And Control Unit Locations - Engine Compartment
Relay And Control Unit Locations - Engine Compartment

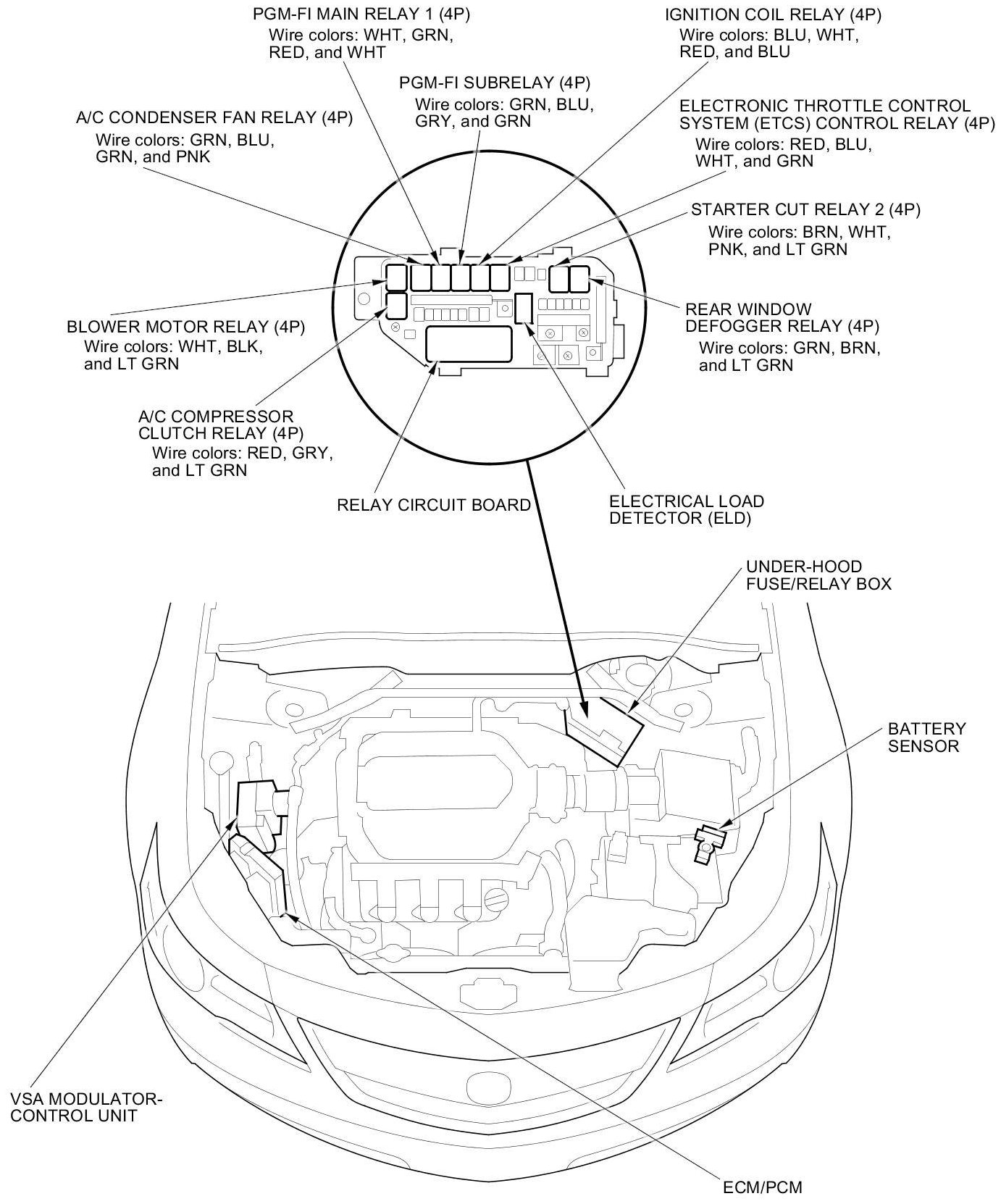

Relay and Control Unit Locations - Engine Compartment
