Acura
>>
2012
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>

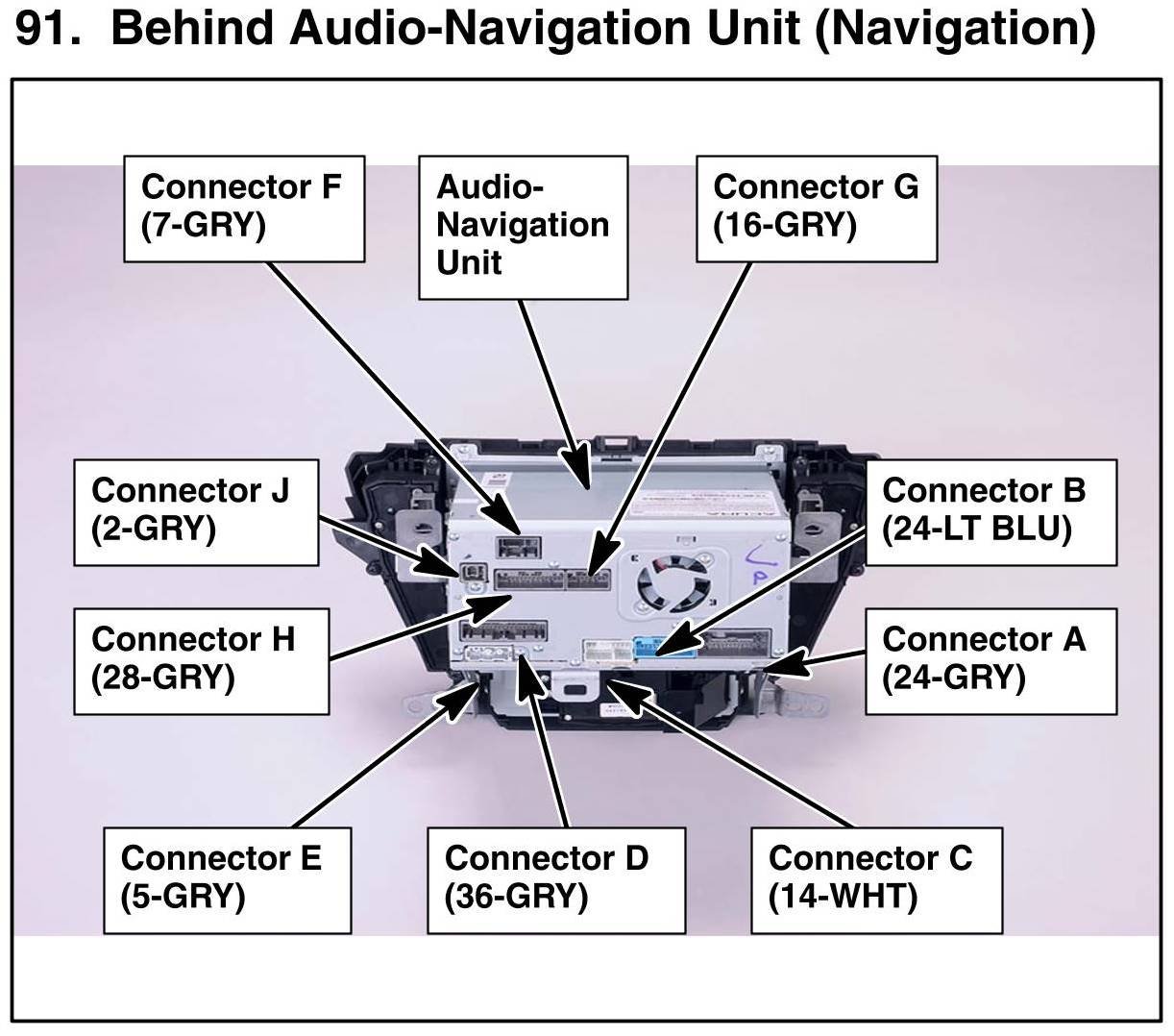

Photo 91. Behind Audio-Navigation Unit (Navigation)
Photo 91. Behind Audio-Navigation Unit (Navigation)
