Entry Lights Control System (Drivers and Passengers MICU, and Door Multiplex Control Unit) Input Test

Entry Lights Control System (Driver's and Passenger's MICU, and Door Multiplex Control Unit) Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control system first, using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

Driver's MICU

1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

2. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation.

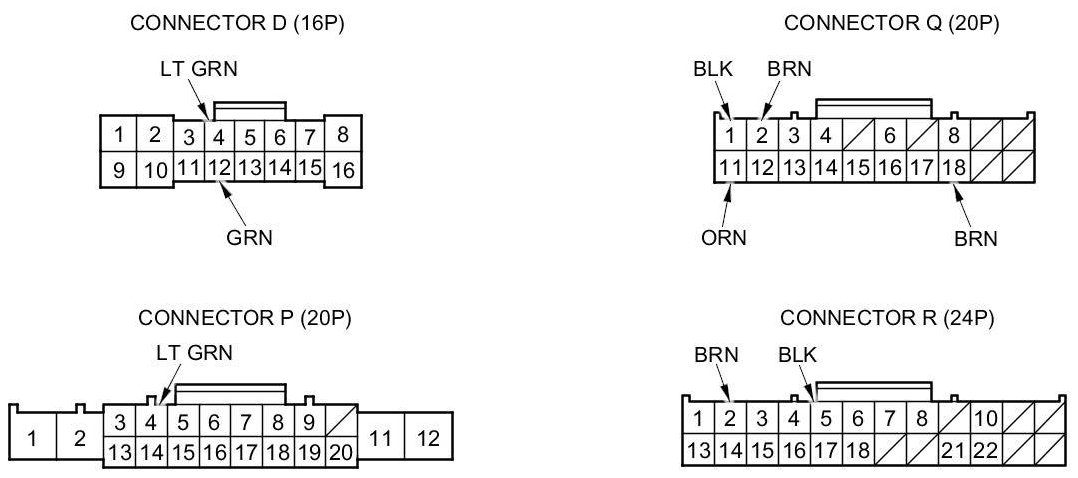

3. Disconnect driver's under-dash fuse/relay box connectors D, P, Q, and R.

NOTE: All connector views are wire side of female terminals.





4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

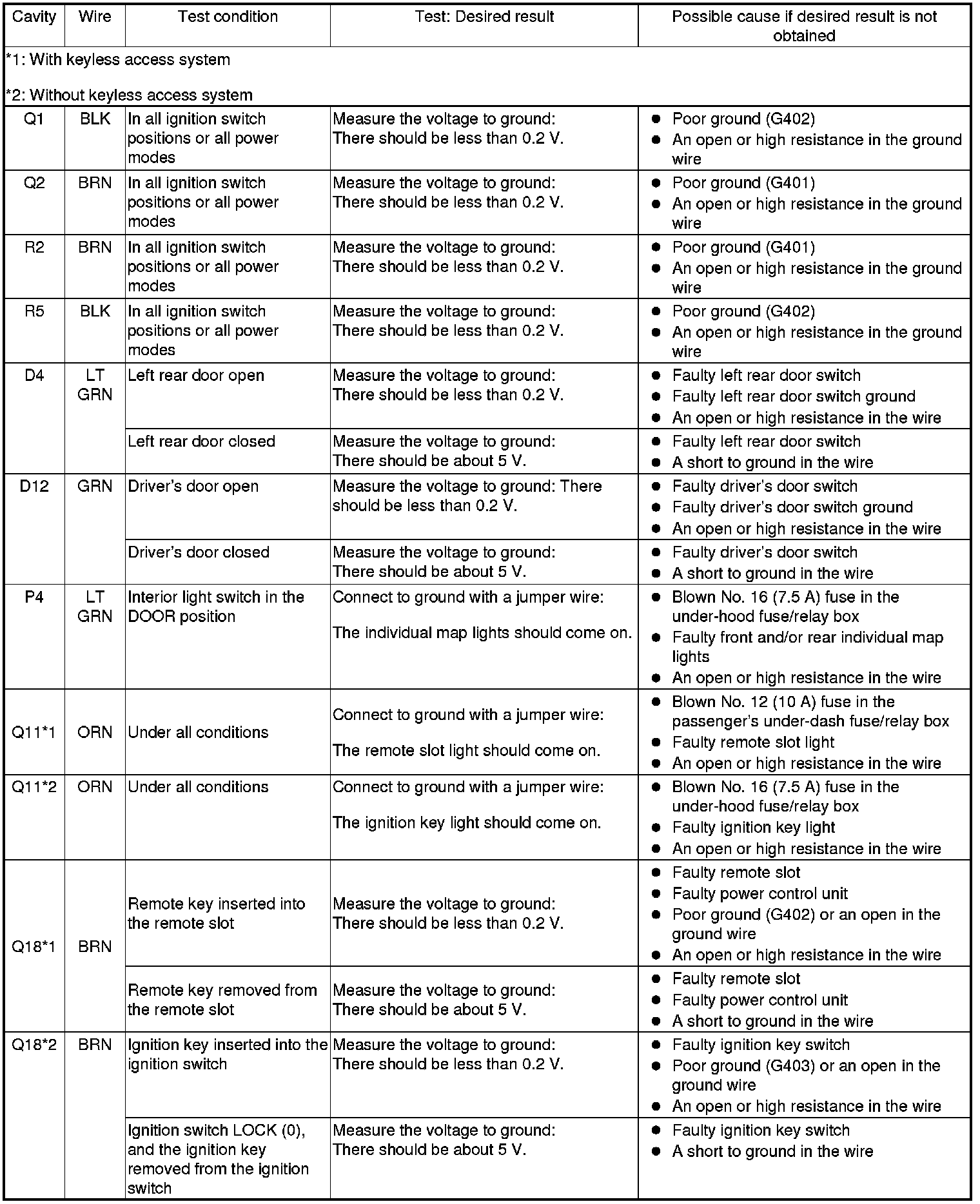

5. Reconnect the connectors to the driver's under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.






Passenger's MICU

6. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

7. Remove the right kick panel Service and Repair.

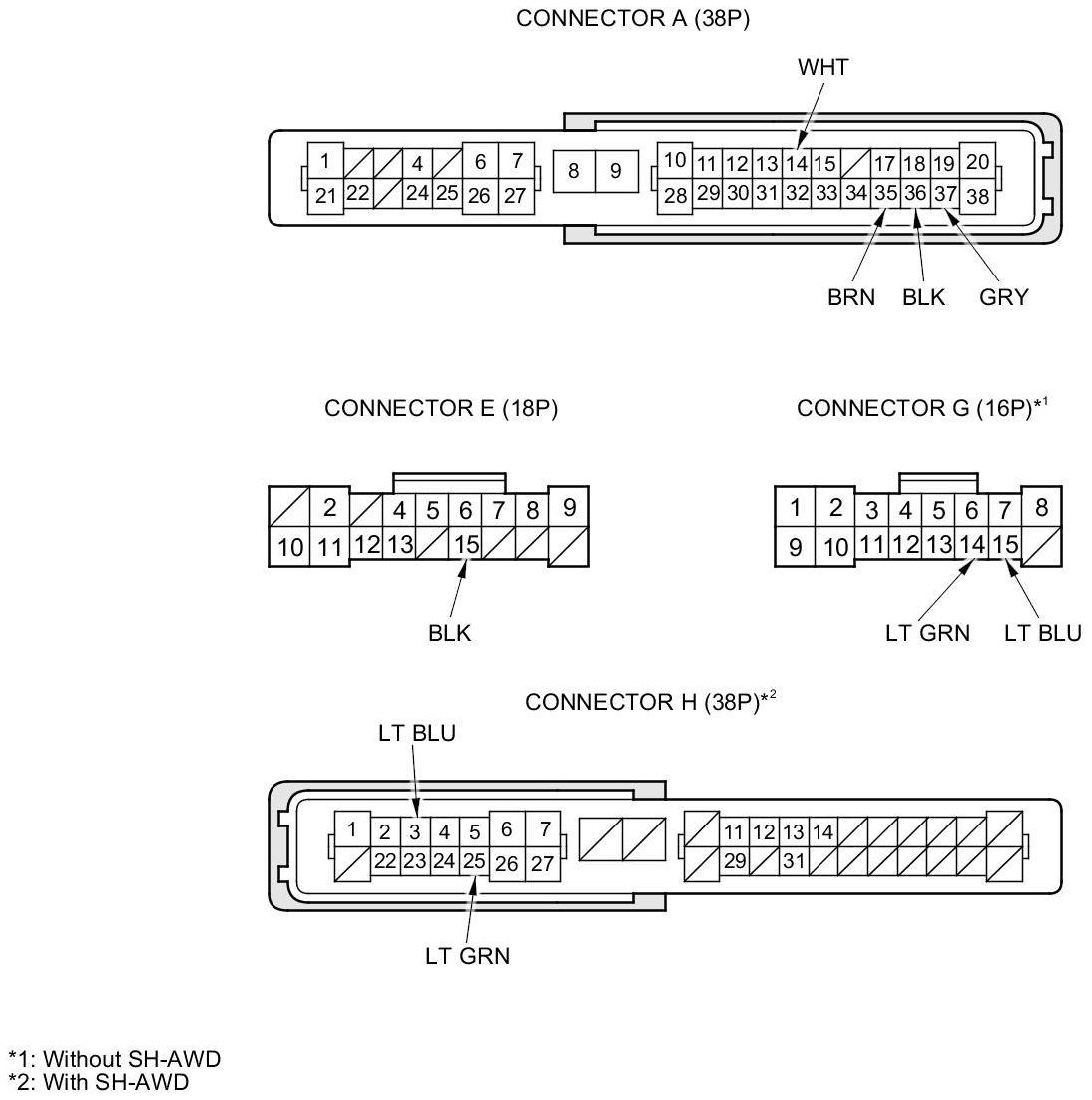

8. Disconnect passenger's under-dash fuse/relay box connectors A, E, and G*1 (or H*2).





NOTE: All connector views are wire side of female terminals.





9. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 10.

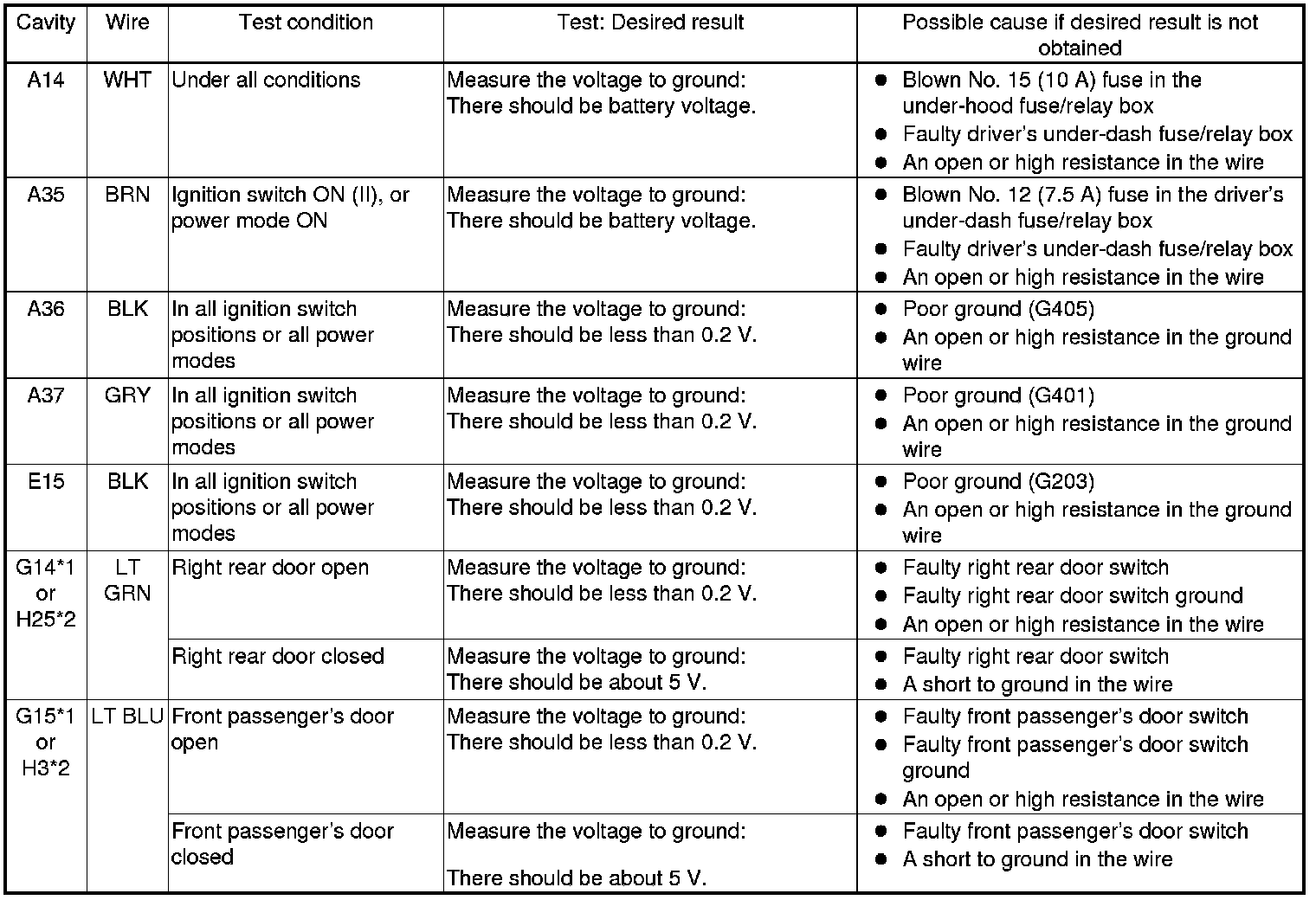

10. Reconnect the connectors to the passenger's under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 11.










Door Multiplex Control Unit

11. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

12. Remove the driver's door panel Front Door Panel Removal / Installation.

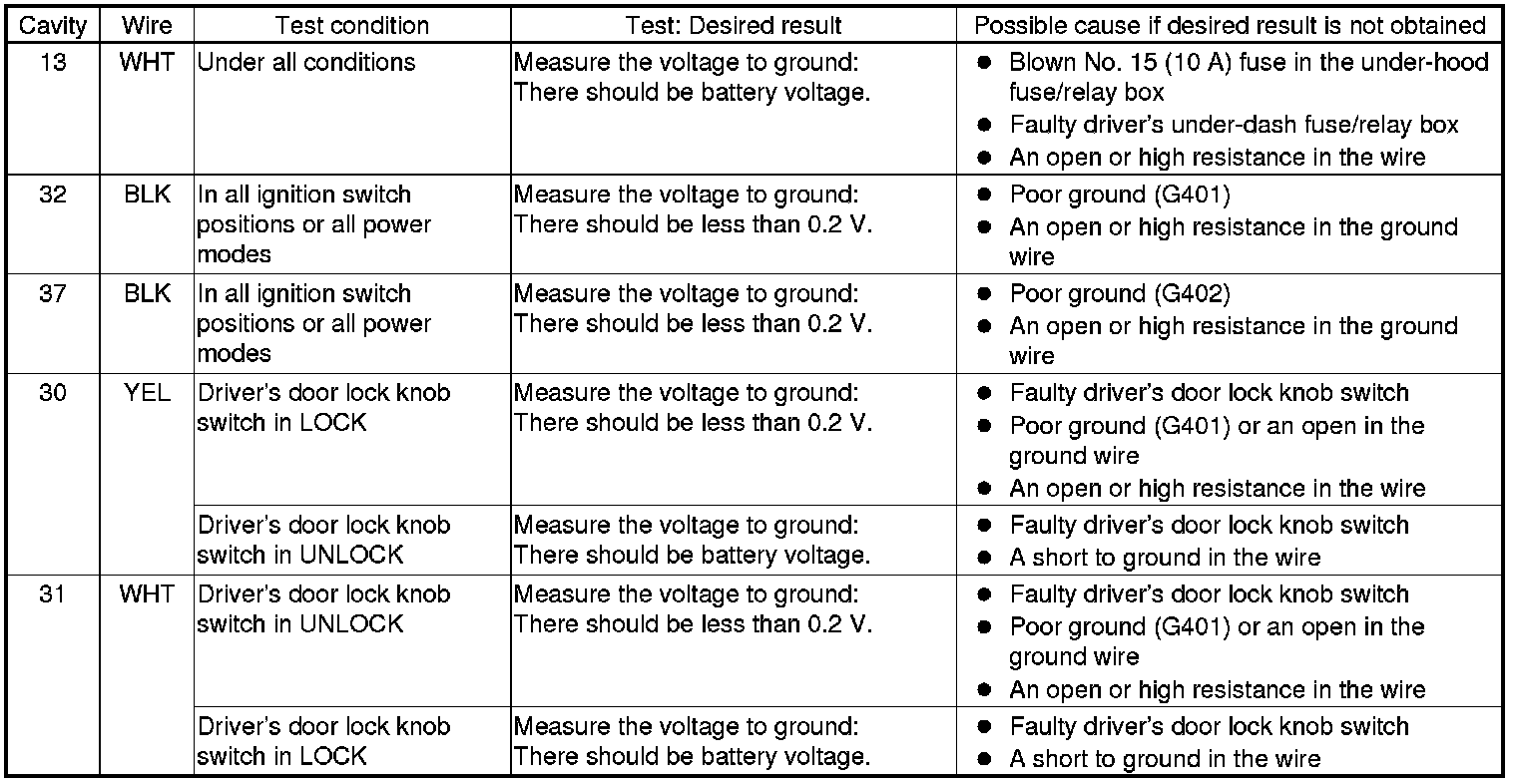

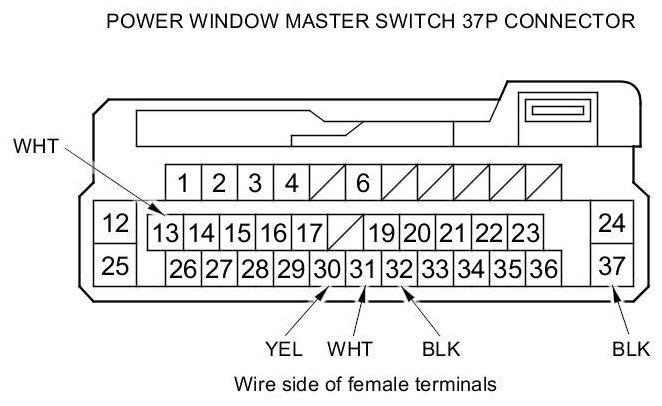

13. Disconnect the 37P connector from the power window master switch.





14. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 16.

15. Reconnect the driver's door harness to driver's door subharness.

16. Reconnect the 37P connector to the power window master switch, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 17.





17. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the driver's MICU) Drivers Under-Dash Fuse/Relay Box (Drivers MICU) Removal and Installation. If input failures are related to a particular control unit, replace the control unit.
