Fog/Driving Lamp: Service and Repair

Fog Light Replacement

1. Remove the front bumper Service and Repair.

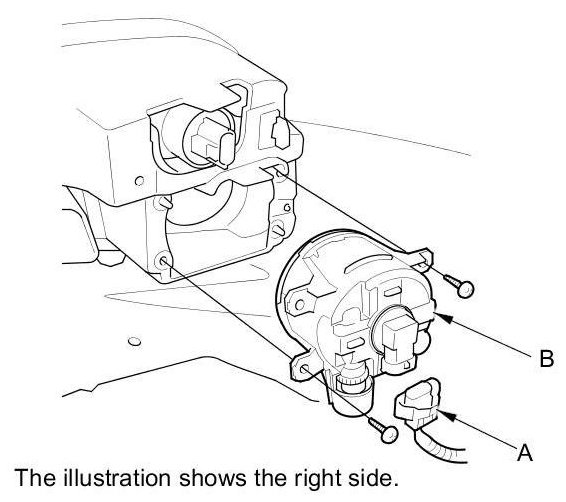

2. Disconnect the 2P connector (A) from the fog light (B).






3. Remove the two screws, then remove the fog light from the front bumper.

4. Install the fog light in the reverse order of removal.

5. After replacement, adjust the fog lights Adjustments.
