Timing Component Alignment Marks: Locations

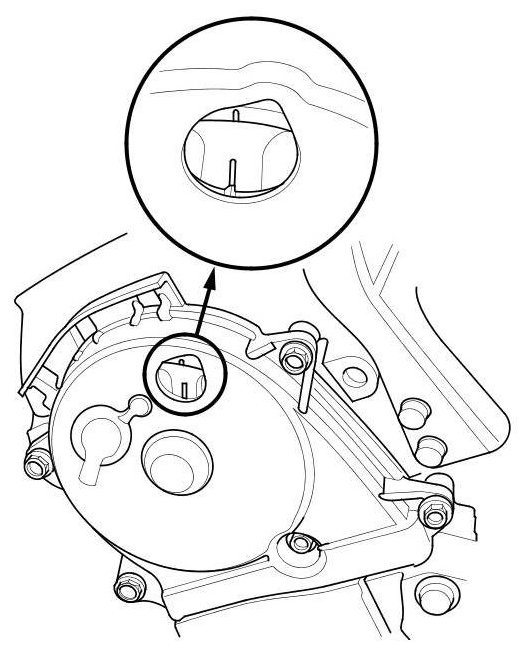

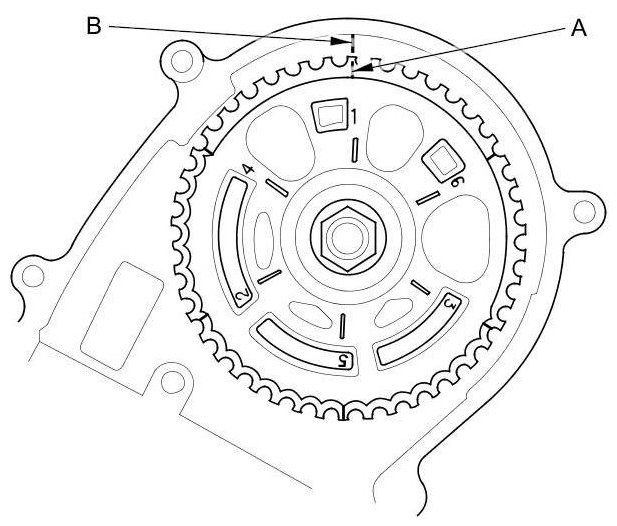

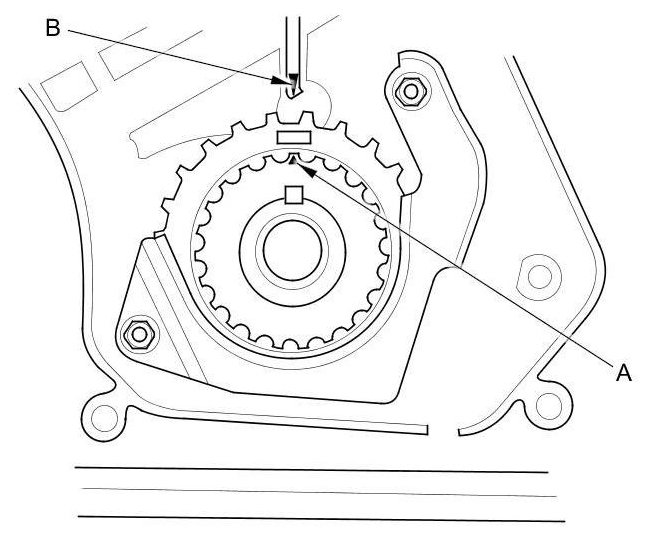

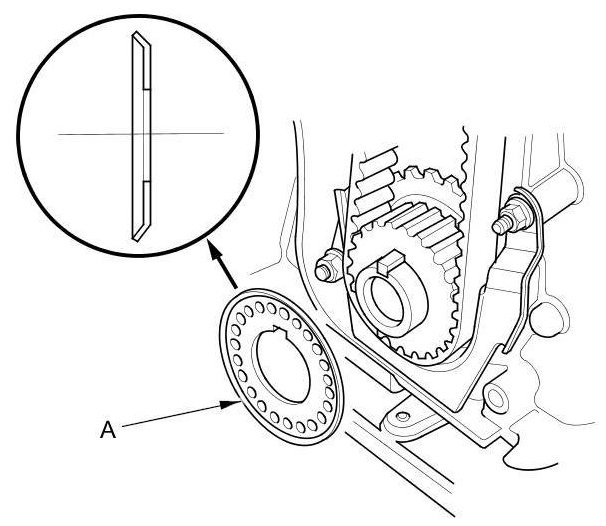

FRONT





REAR

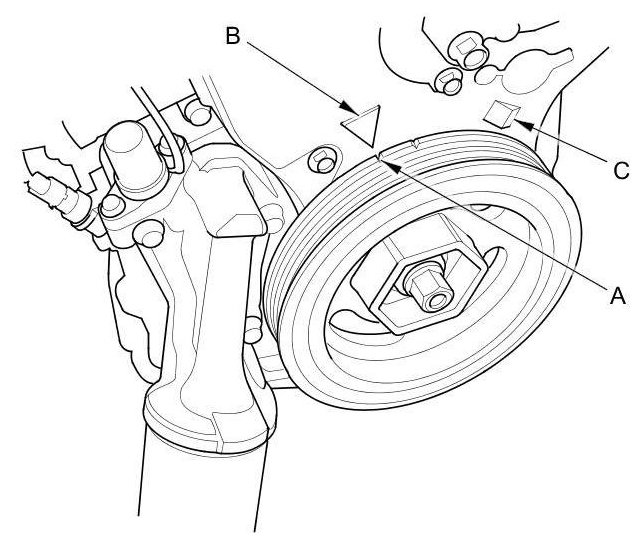

NOTE: The other pointer (C) is not used.

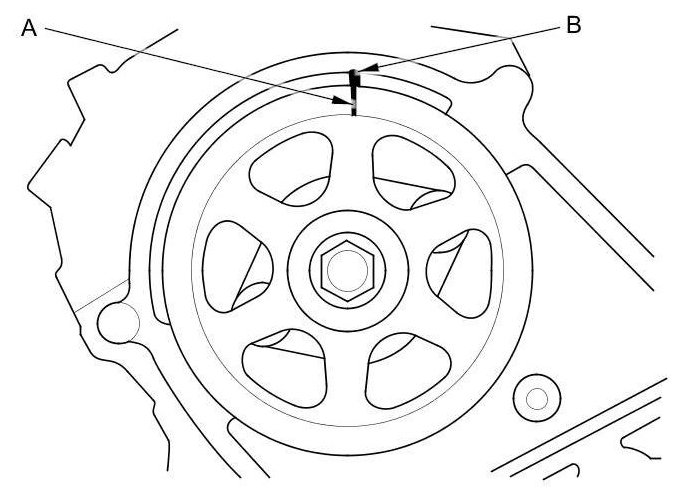

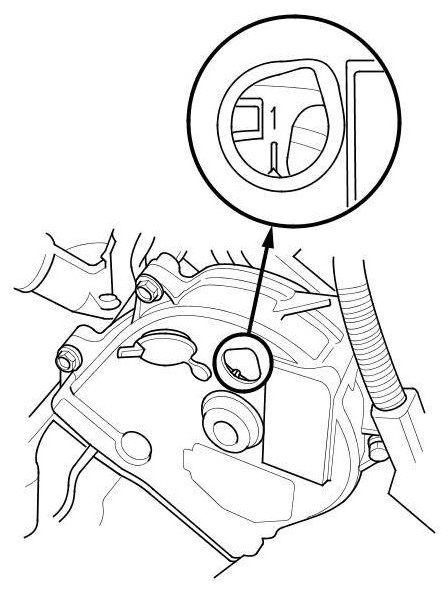

FRONT





REAR
