Cylinder Head Sealing Bolt Installation

Cylinder Head Sealing Bolt Installation

NOTE: When installing the sealing bolts (A), always use a new washers (B).

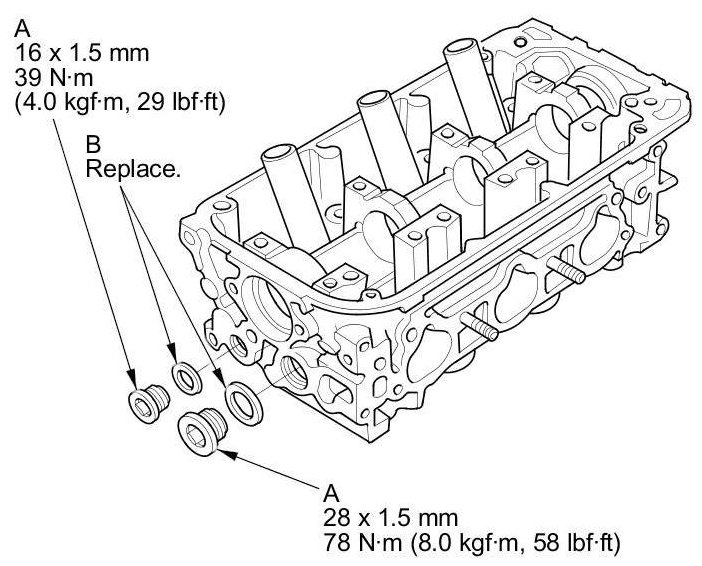

FRONT

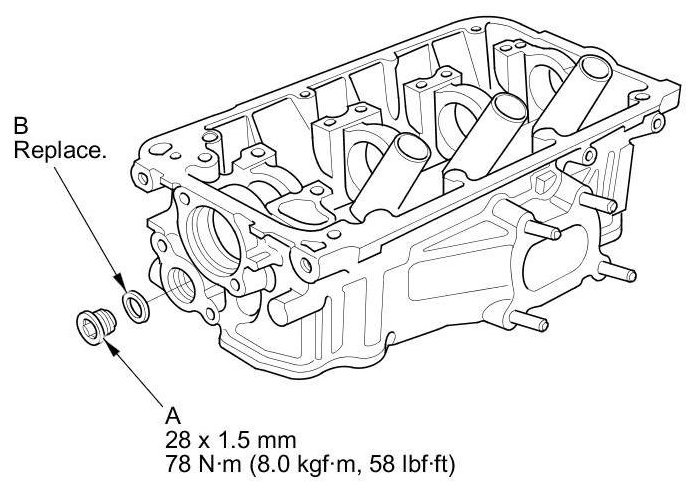

REAR
