Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Service and Repair >> Overhaul >> Engine Block Sealing Bolt Installation

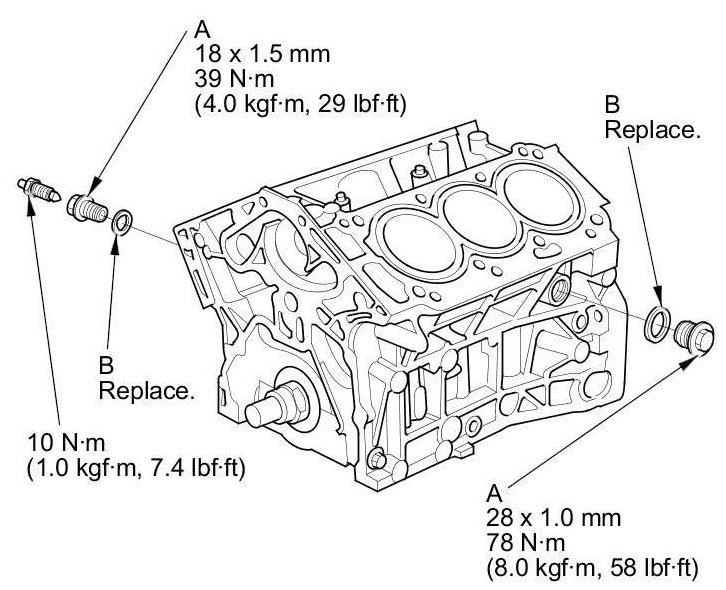

Engine Block Sealing Bolt Installation




Engine Block Sealing Bolt Installation

NOTE: When installing the sealing bolts (A), always use new washers (B).
