Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Engine Section) And Knock Sensor Sub-harness Connector And Harness Locations (M/T)

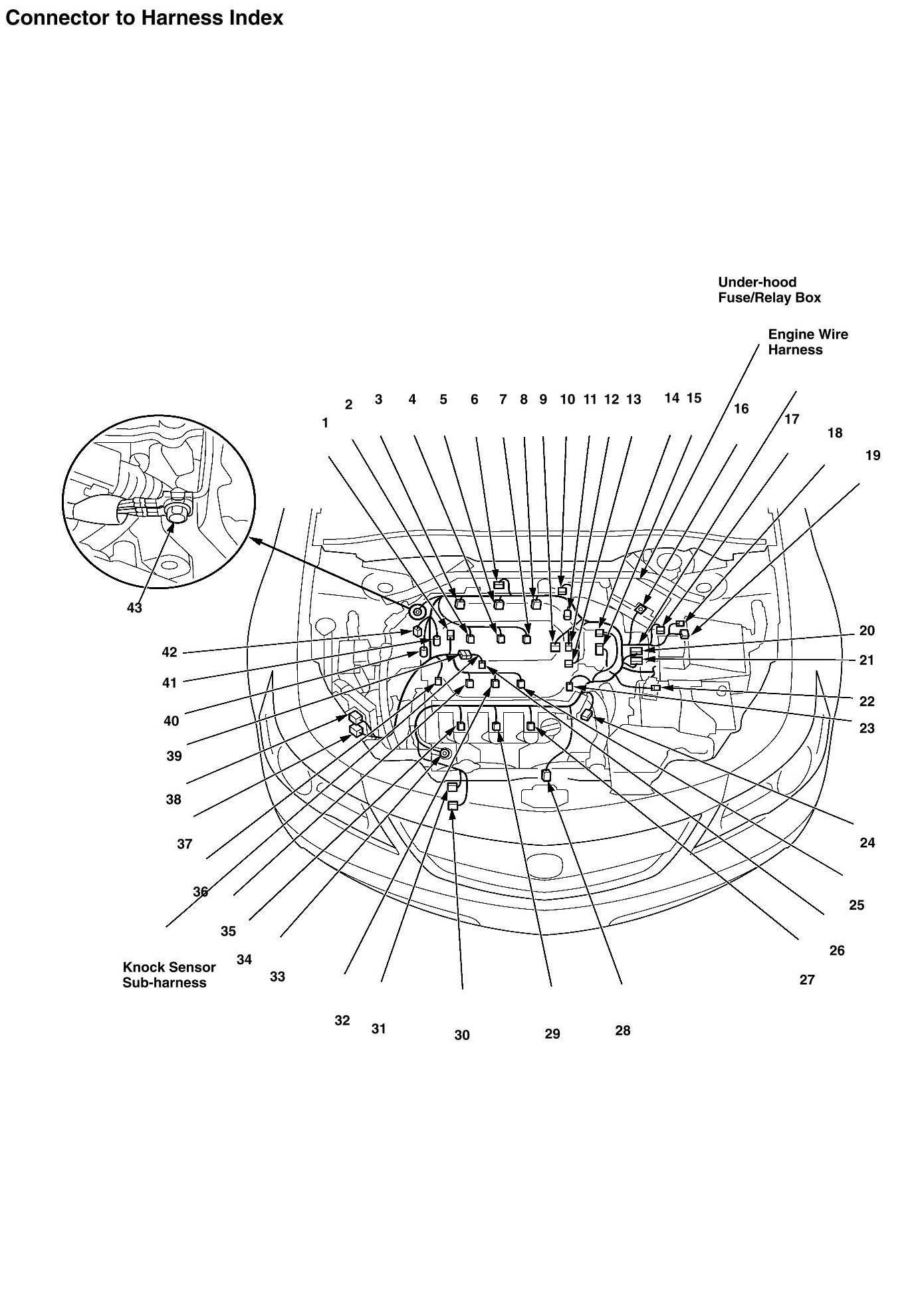

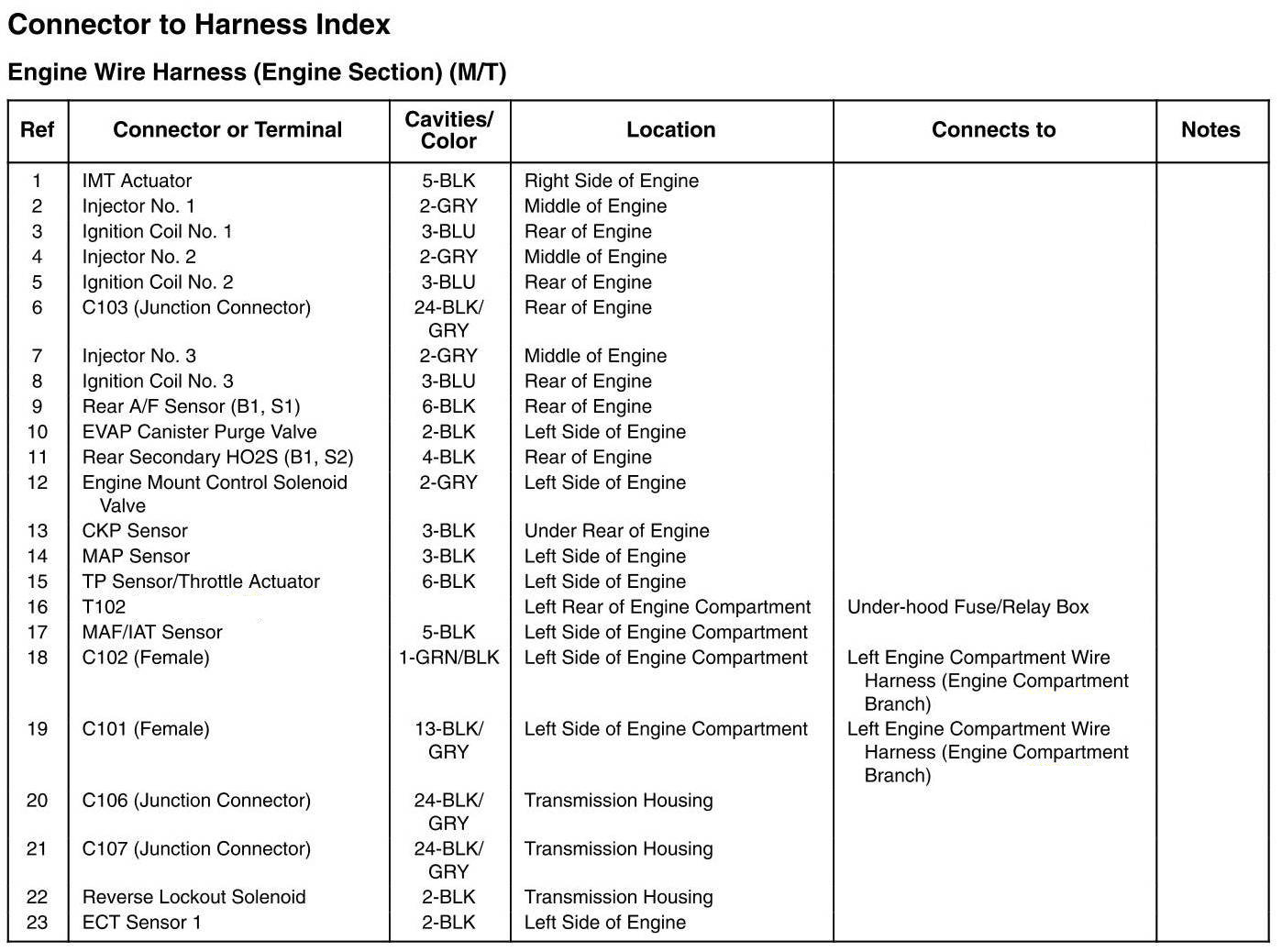

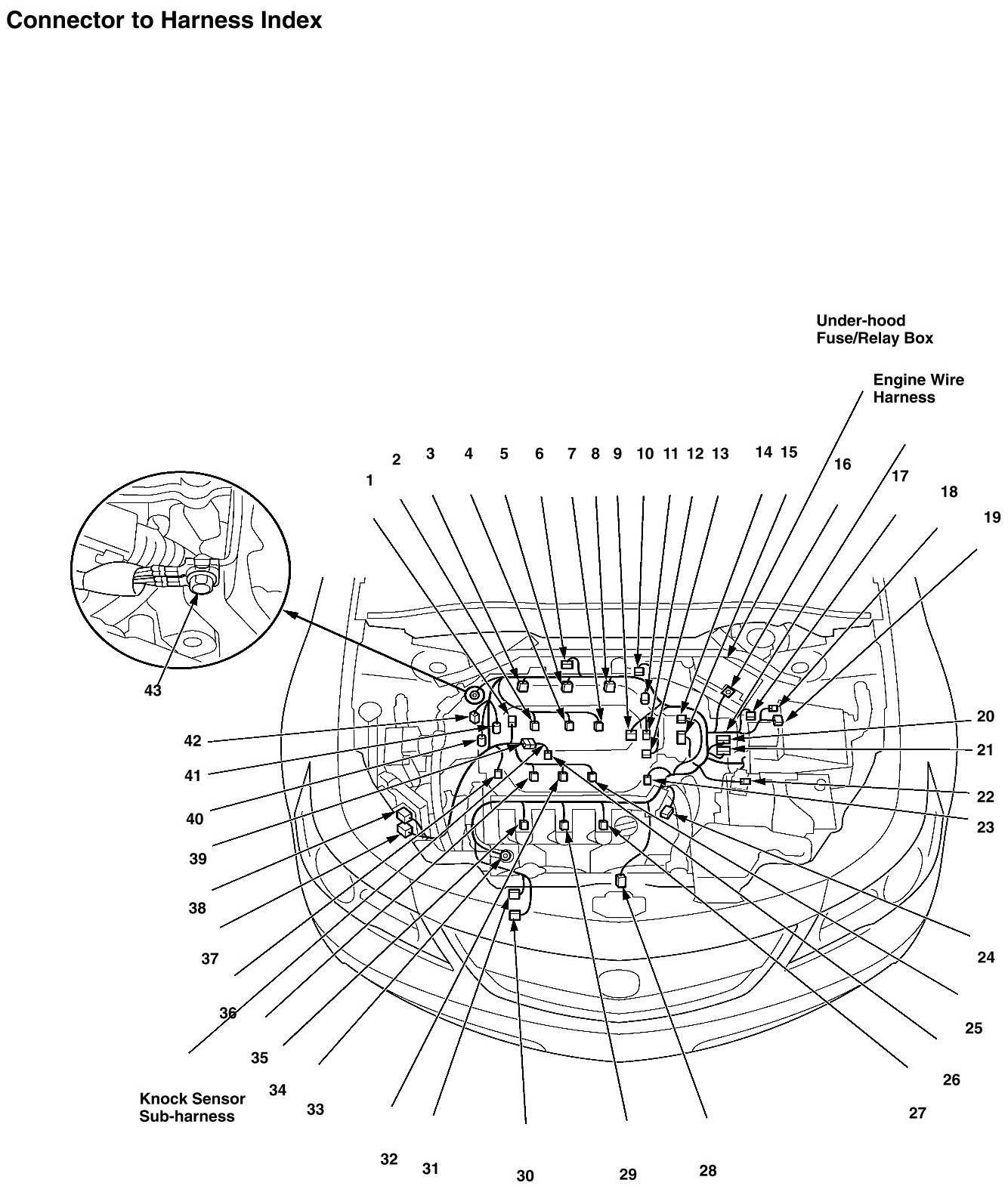

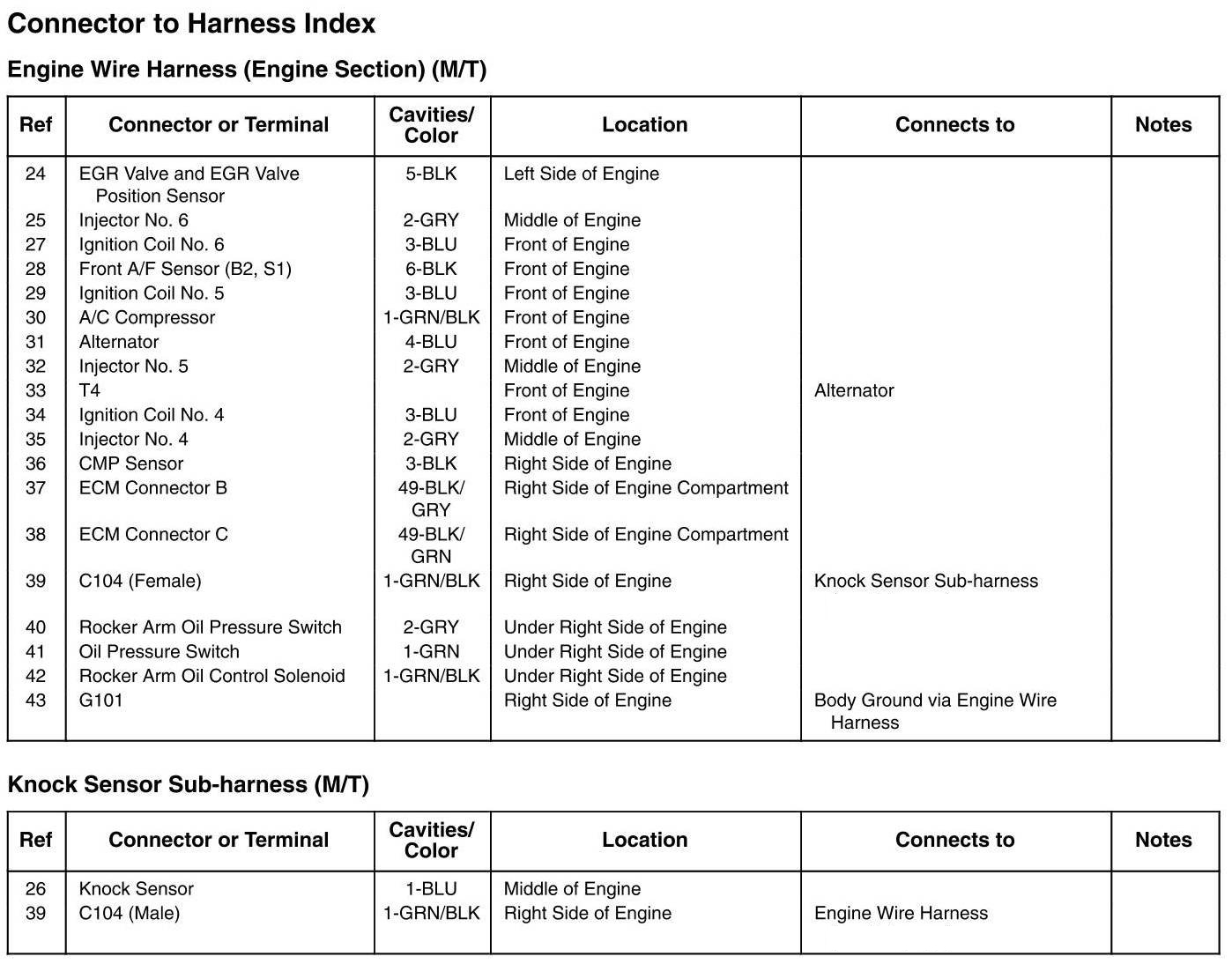

Engine Wire Harness (Engine Section) And Knock Sensor Sub-harness Connector And Harness Locations (M/T)
