Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 96 - Line Pressure Solenoid Valve A (A/T) Connector View

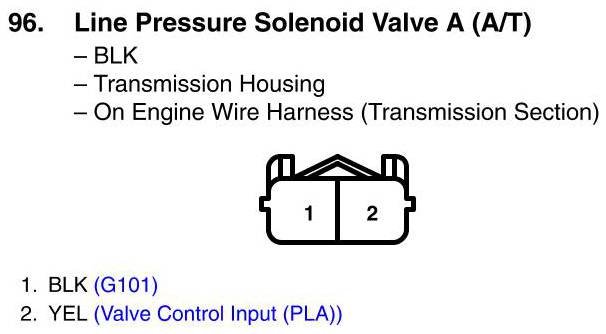

View 96 - Line Pressure Solenoid Valve A (A/T) Connector View
