Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 72 - Headlight Washer Motor Connector View (Headlight Washer)

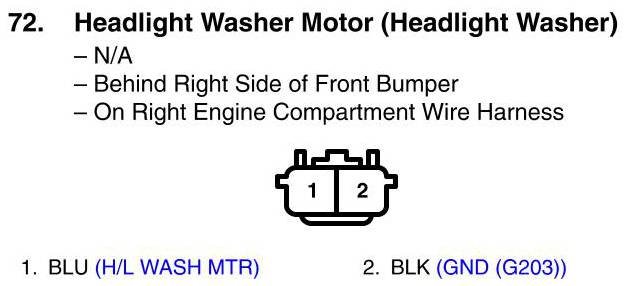

View 72 - Headlight Washer Motor Connector View (Headlight Washer)
