Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 366 - Passenger's Under-Dash Fuse/Relay Box Connector View

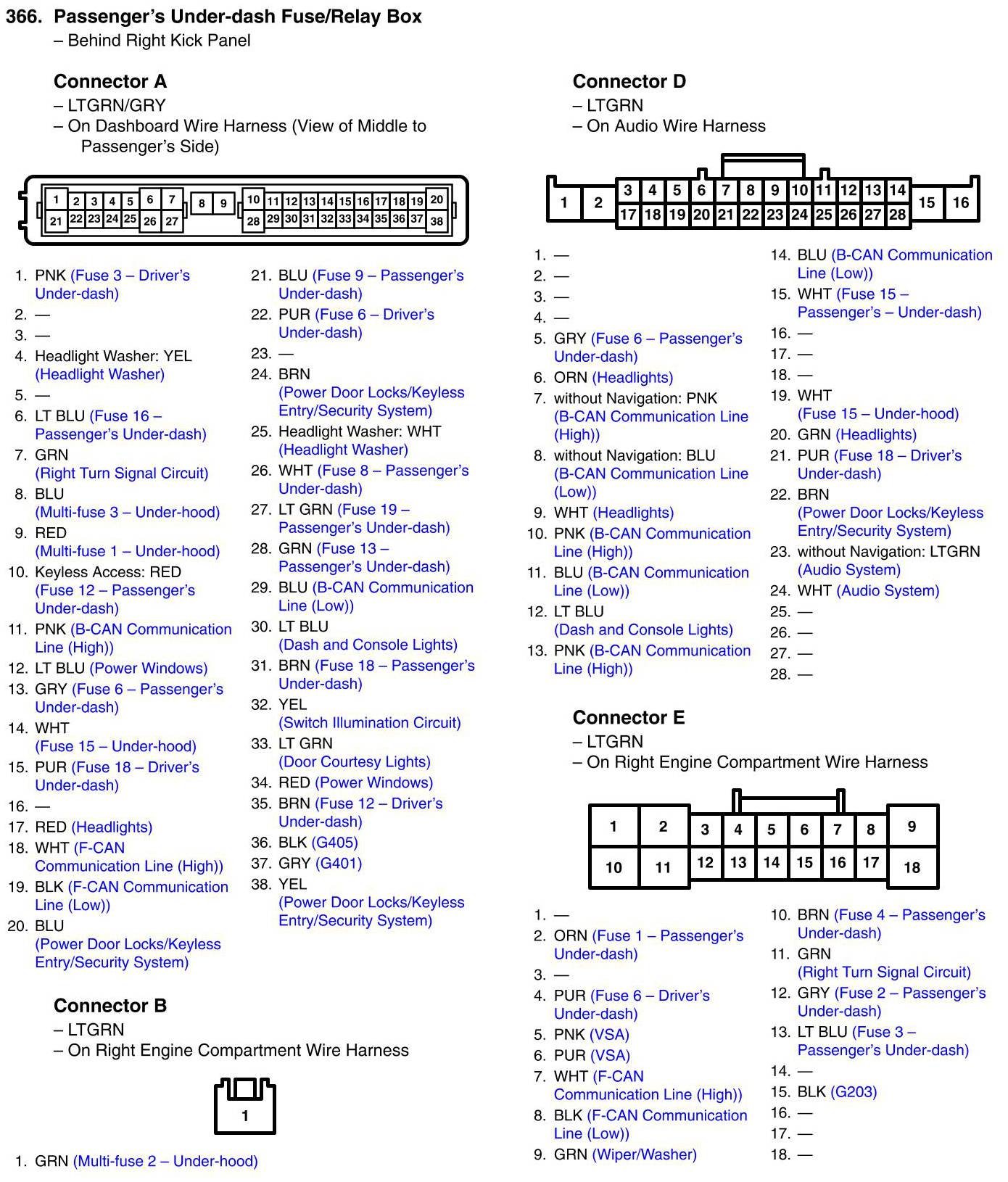

View 366 - Passenger's Under-Dash Fuse/Relay Box Connector View
