Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 345 - AcuraLink Control Unit (XM Receiver) (AcuraLink) Connector View

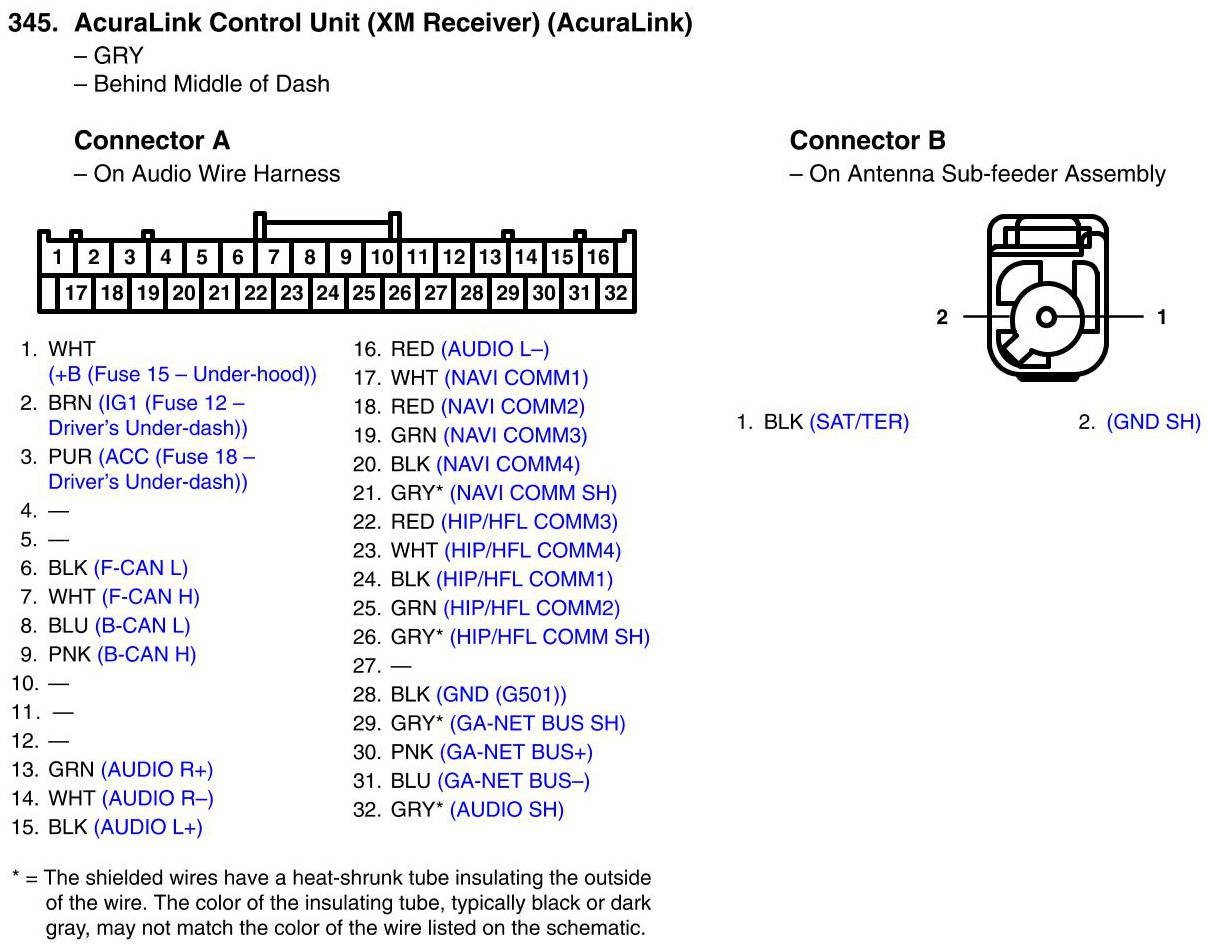

View 345 - AcuraLink Control Unit (XM Receiver) (AcuraLink) Connector View
