Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 331 - C107 (Junction Connector) Connector View

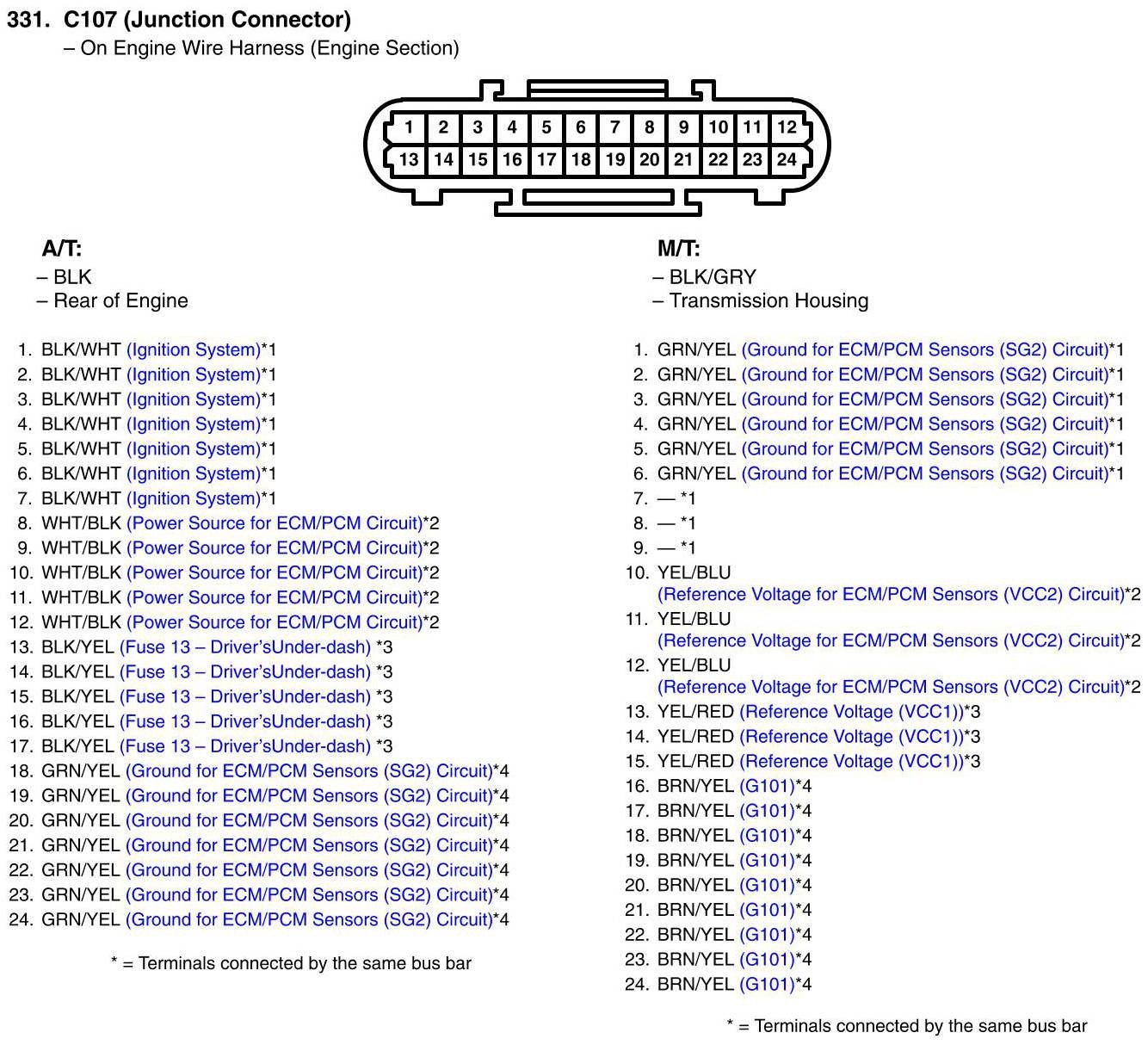

View 331 - C107 (Junction Connector) Connector View
